RAM 2500 Van V8-5.2L VIN Y
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications
SPECIFICATIONS
TRANSMISSION
GENERAL
GEAR RATIOS

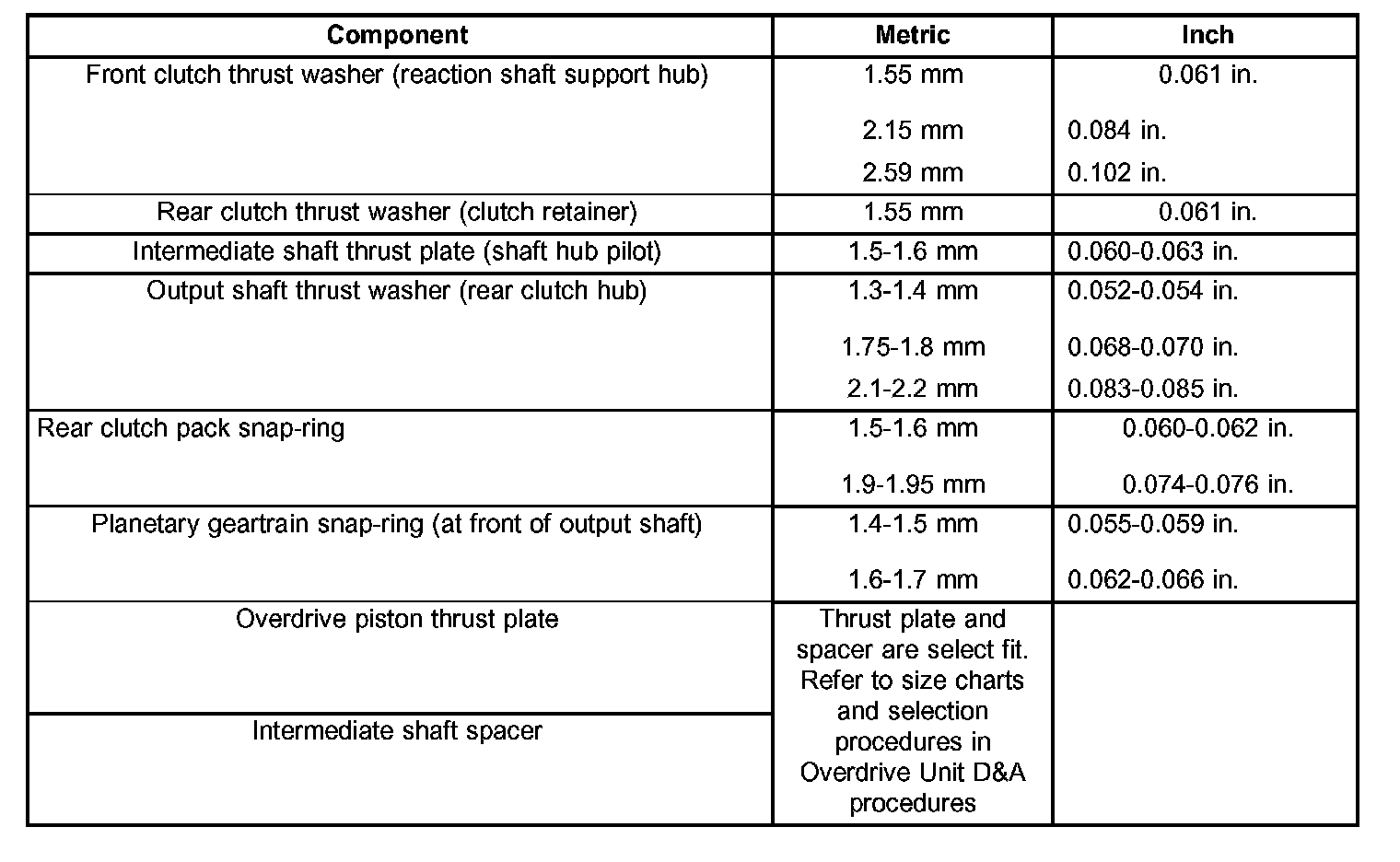

THRUST WASHER/SPACER/SNAP-RING DIMENSIONS

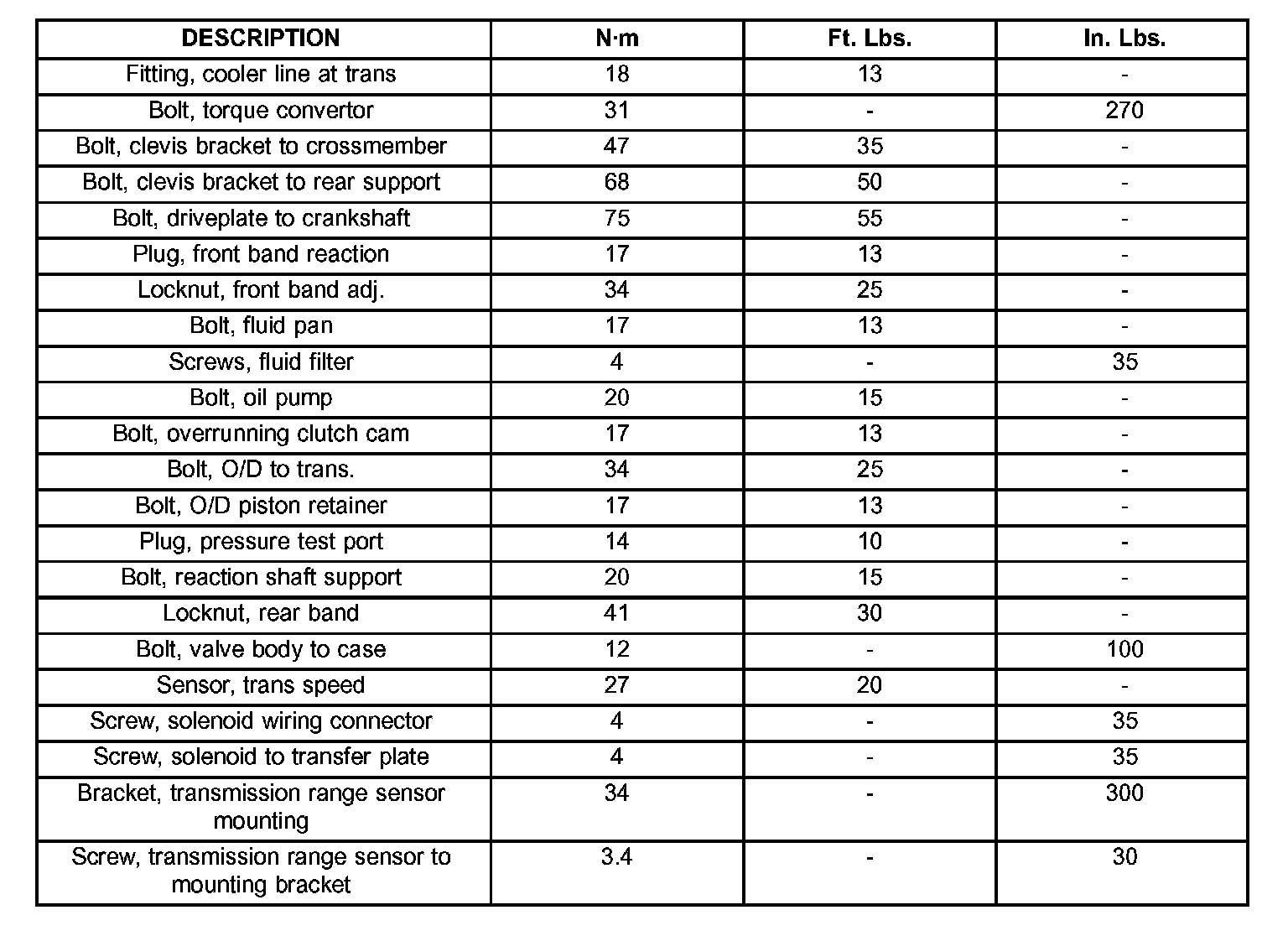

TORQUE SPECIFICATIONS
