Home >> Dodge and Ram >> 2003 >> RAM 2500 Van V8-5.2L VIN Y >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations

Connector Locations

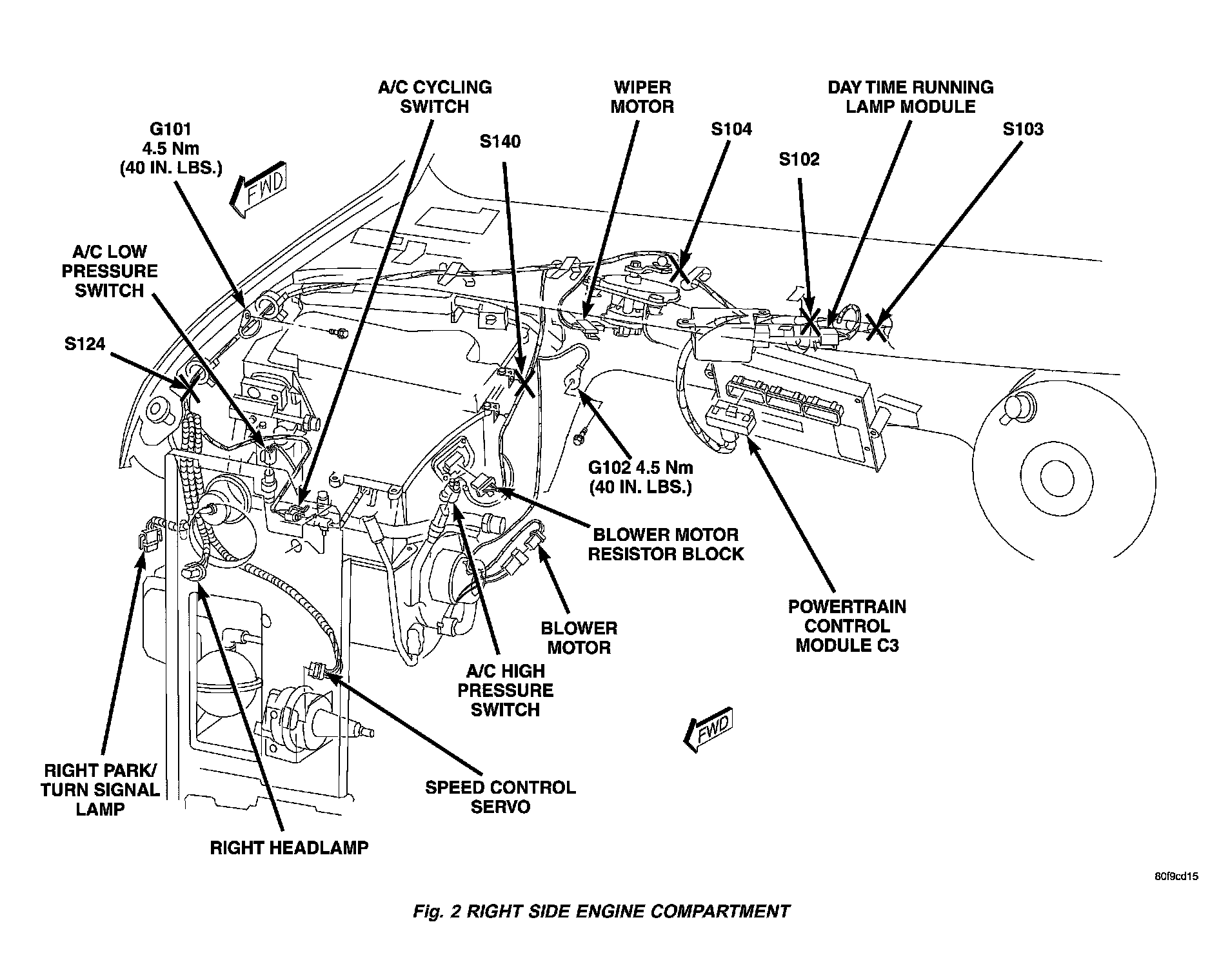

Fig. 2 Right Side Engine Compartment:
