Home >> Dodge and Ram >> 2003 >> RAM 2500 Van V8-5.2L VIN Y >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Temperature Sensor >> Locations

Battery Temperature Sensor: Locations

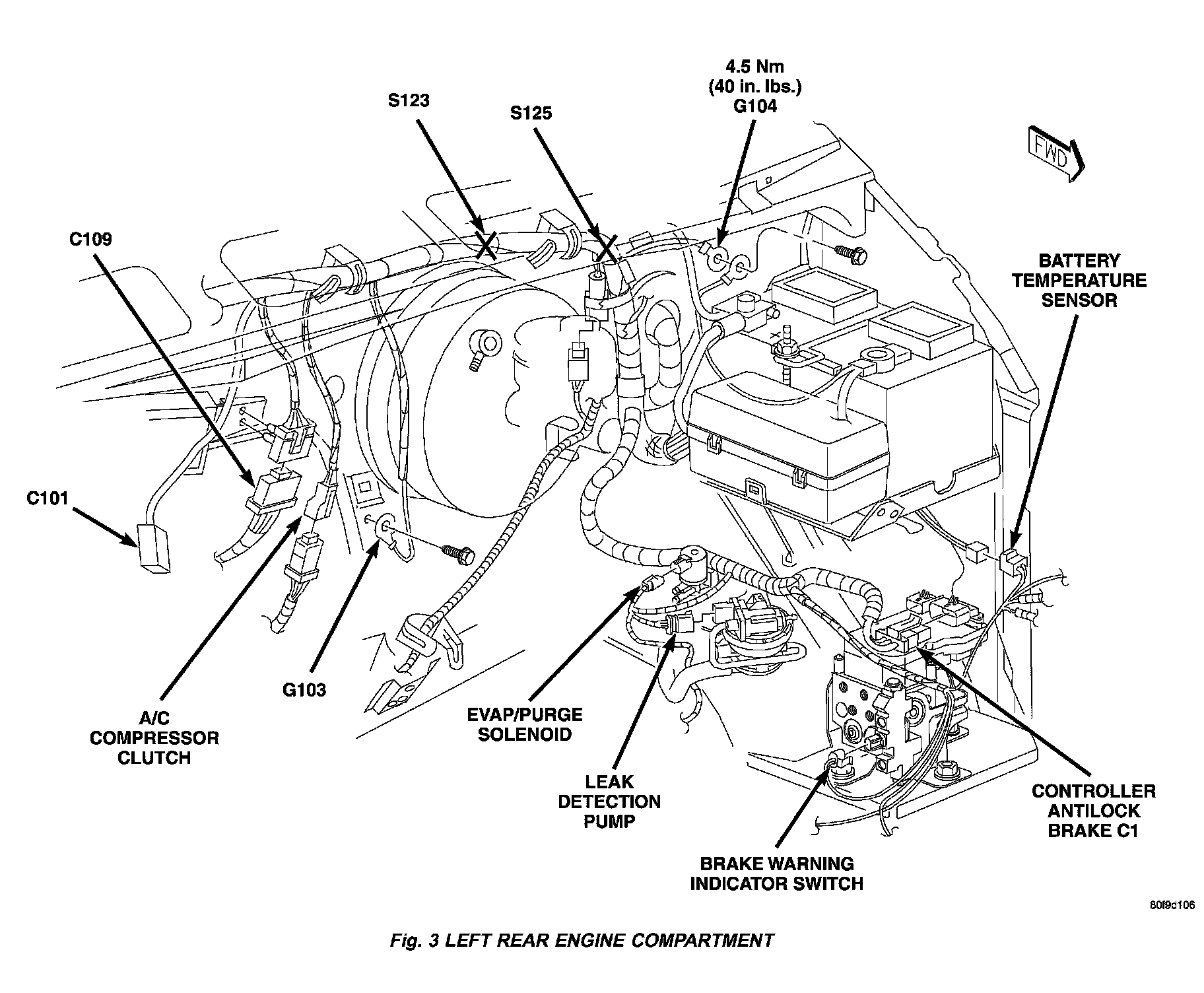

Fig. 3 Left Rear Engine Compartment:
