Dodge and Ram
>>
2003
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

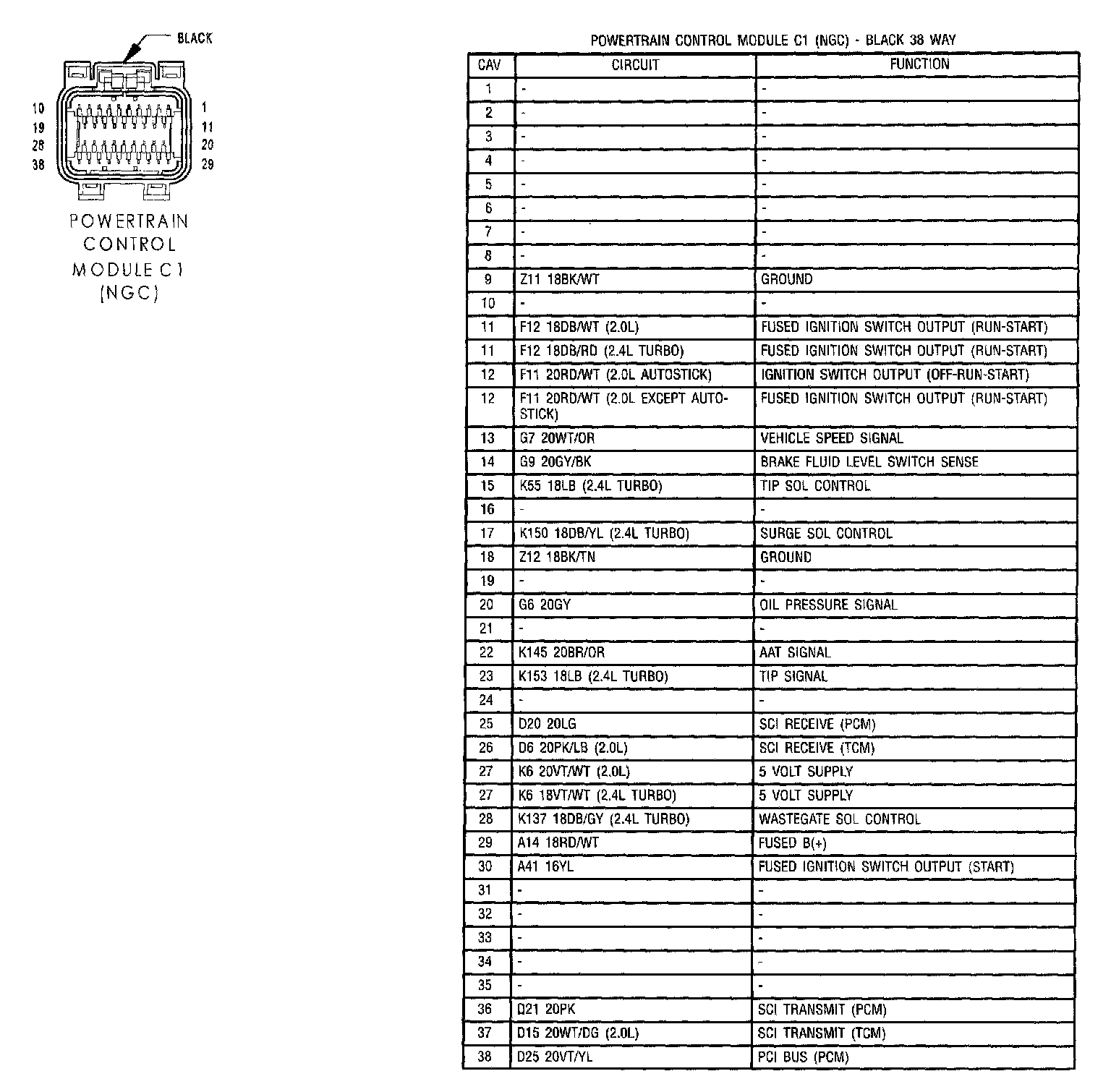

Powertrain Control Module C1 (NGC):

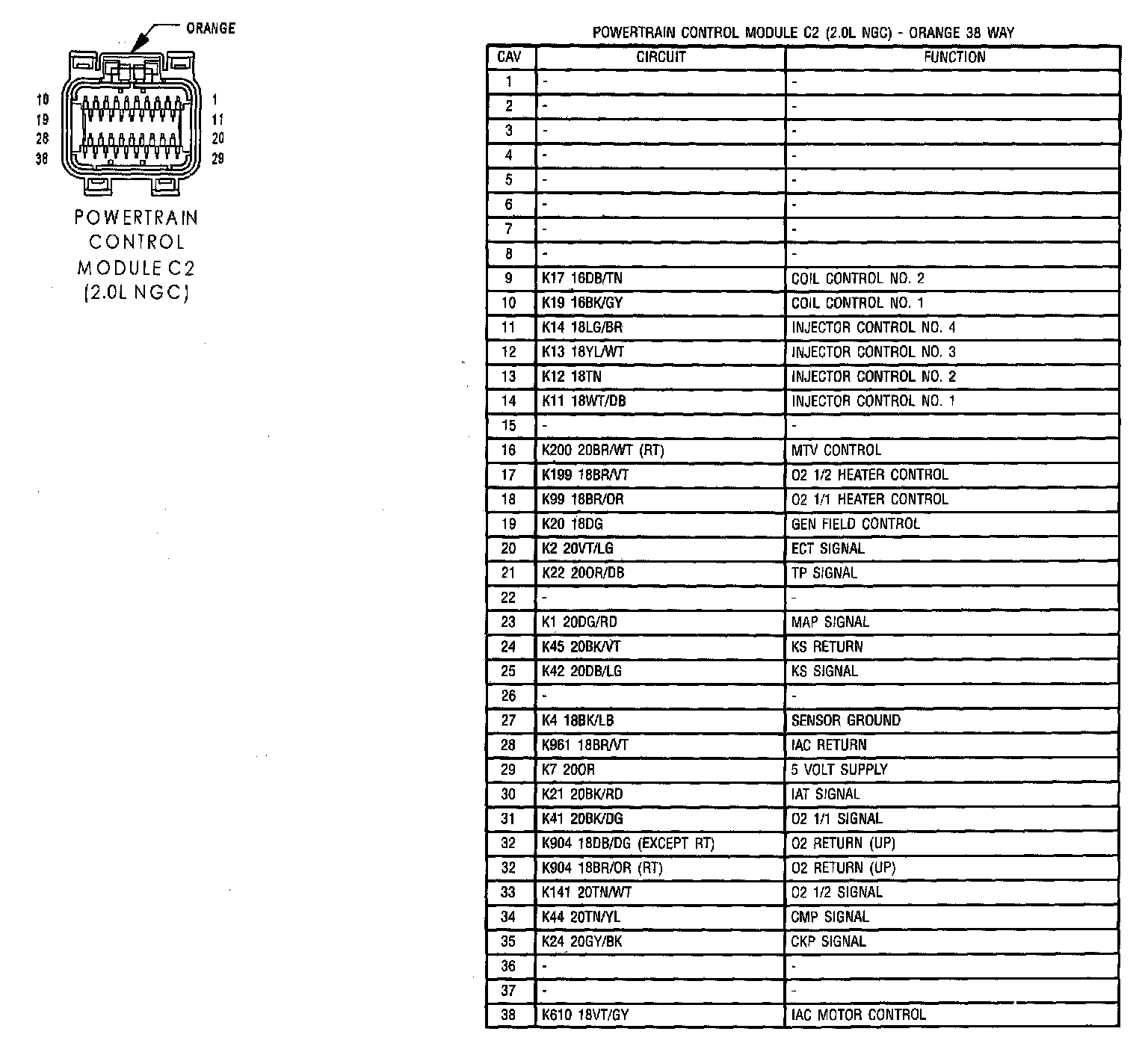

Powertrain Control Module C2 (2.0L NGC):

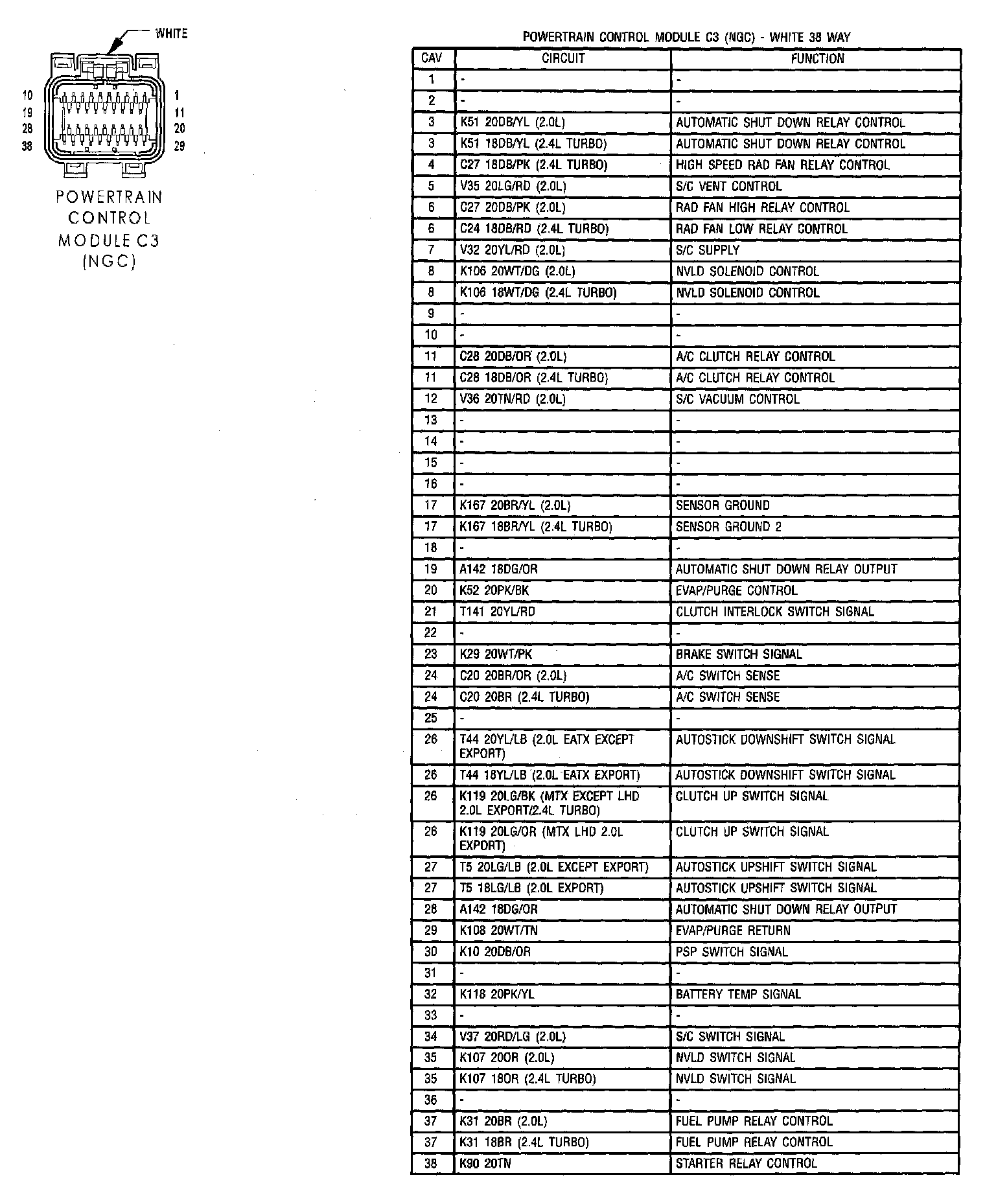

Powertrain Control Module C3 (NGC):

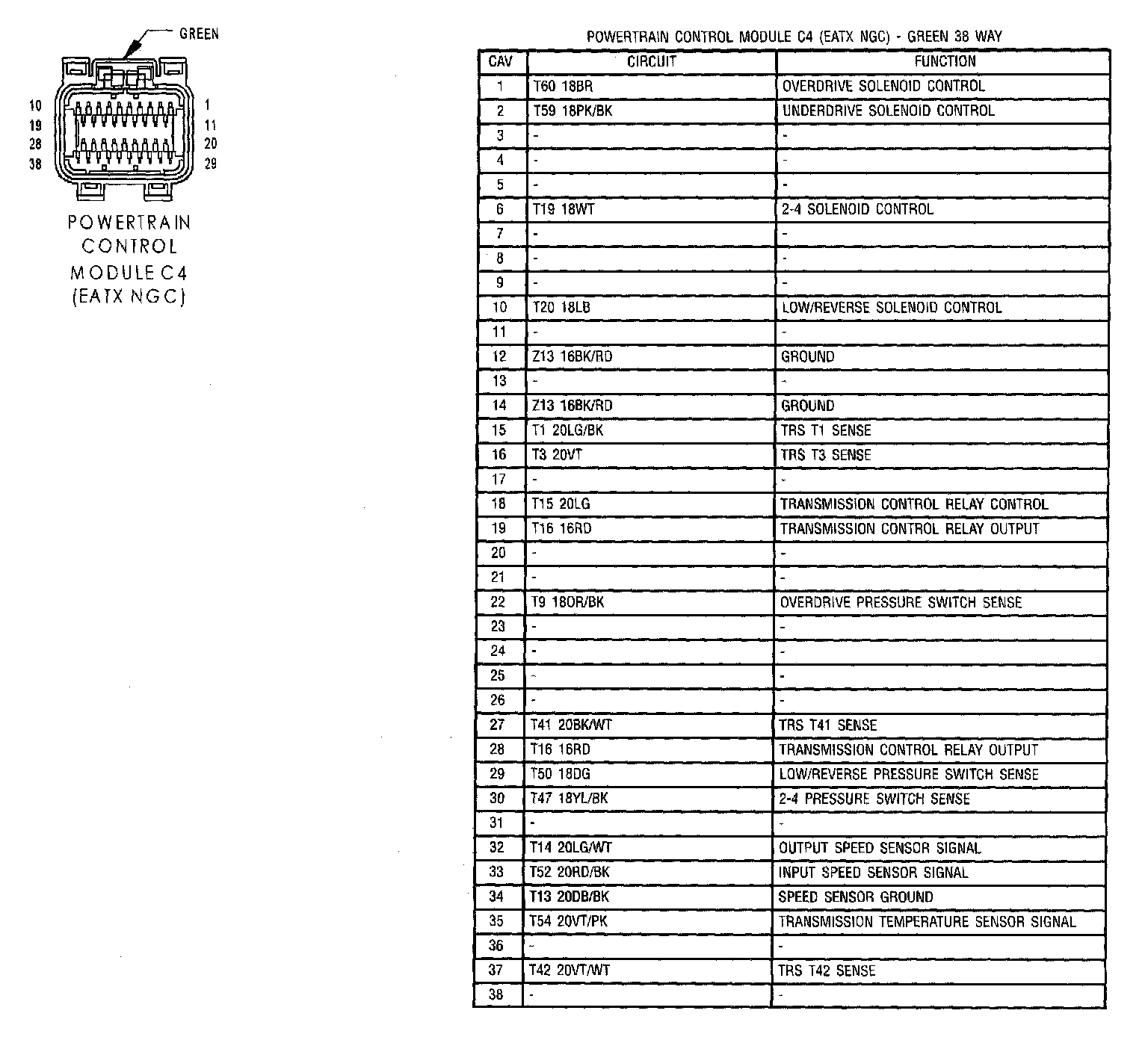

Powertrain Control Module C4 (EATX NGC):
