Any PCI Bus Cluster Indicator Inoperative

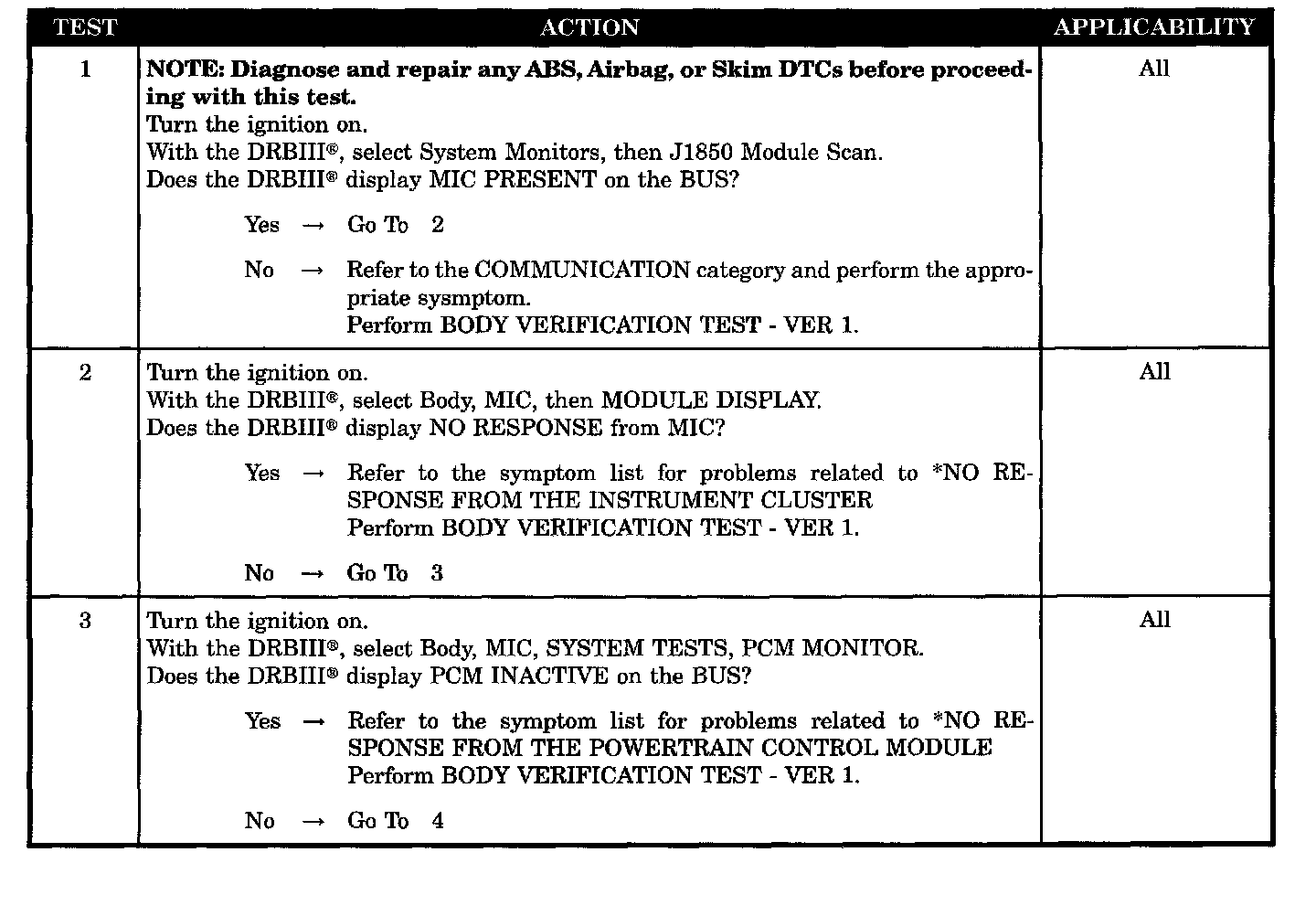

Test 1 - 3:

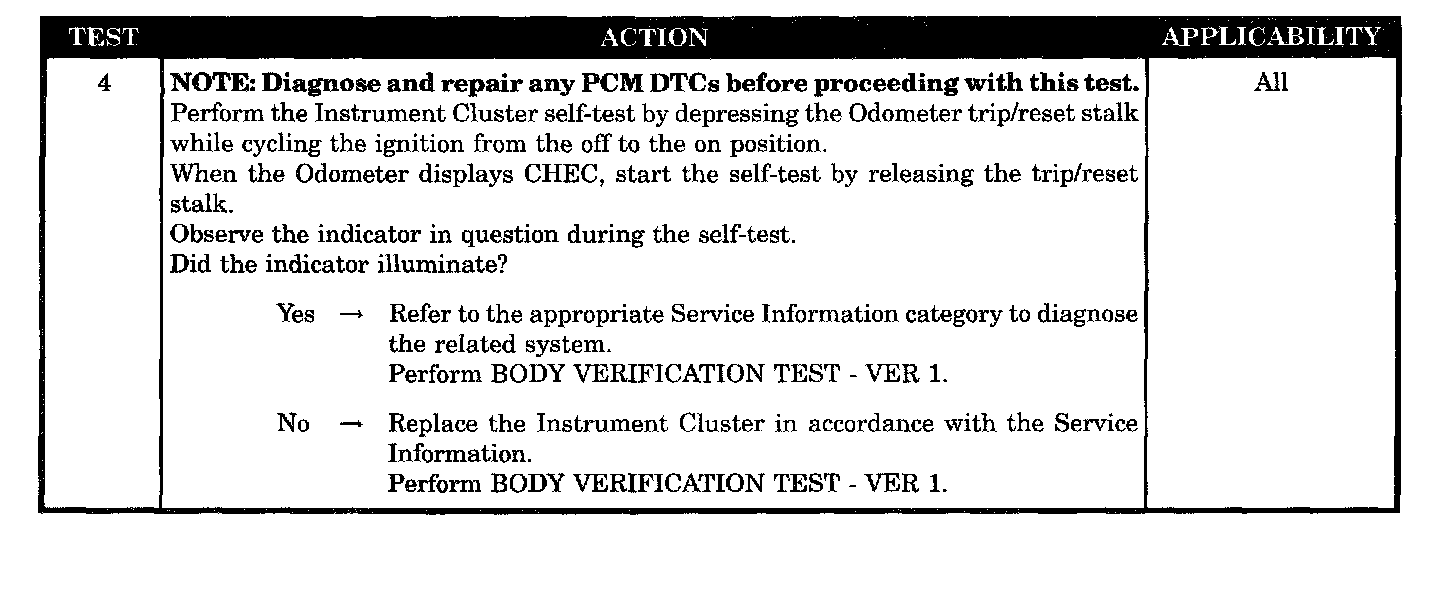

Test 4:






SYMPTOM
ANY PCI BUS CLUSTER INDICATOR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI bus
- No response - PCI bus - Instrument cluster
- No response - Powertrain control module
- Instrument cluster self test
- Instrument cluster
