No Response From Transfer Case Control Module

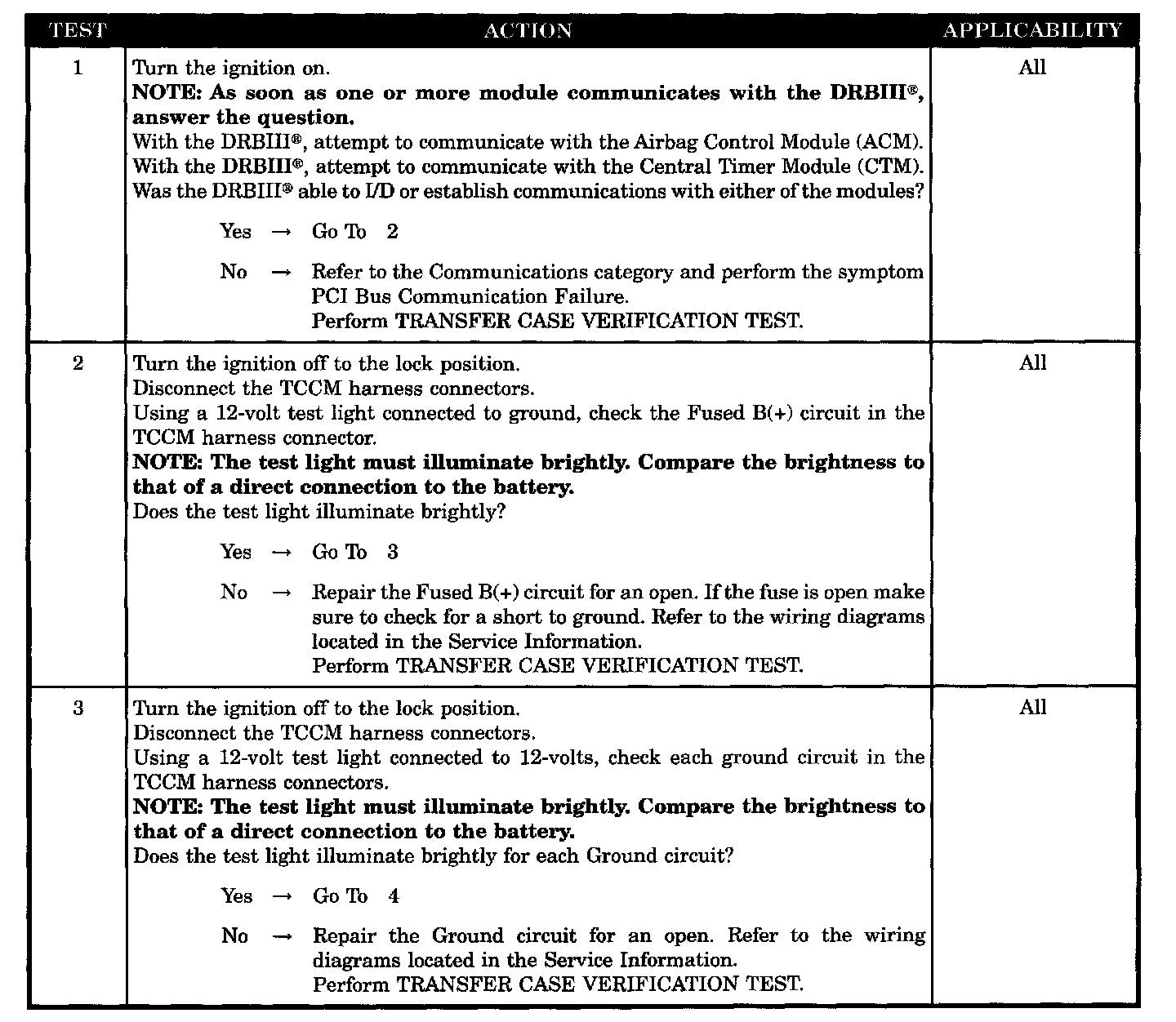

Test 1 - 3:

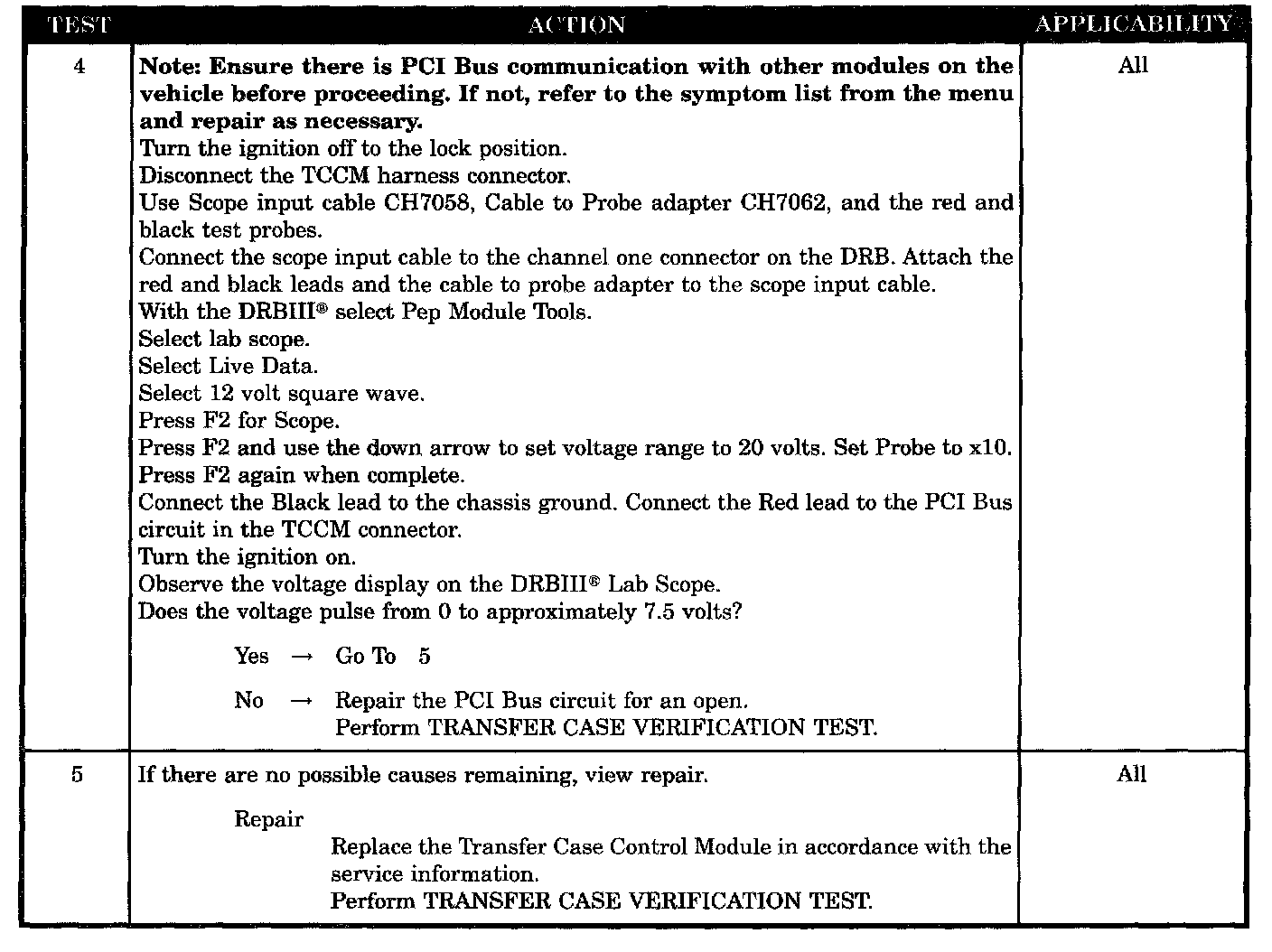

Test 4 - 5:

SYMPTOM
NO RESPONSE FROM TRANSFER CASE CONTROL MODULE

POSSIBLE CAUSES

- No response from transfer case control module
- Fused B(+) circuit open
- Ground circuit open
- Open PCI bus circuit
- Transfer case control module
