Rear Washer Motor Inoperative

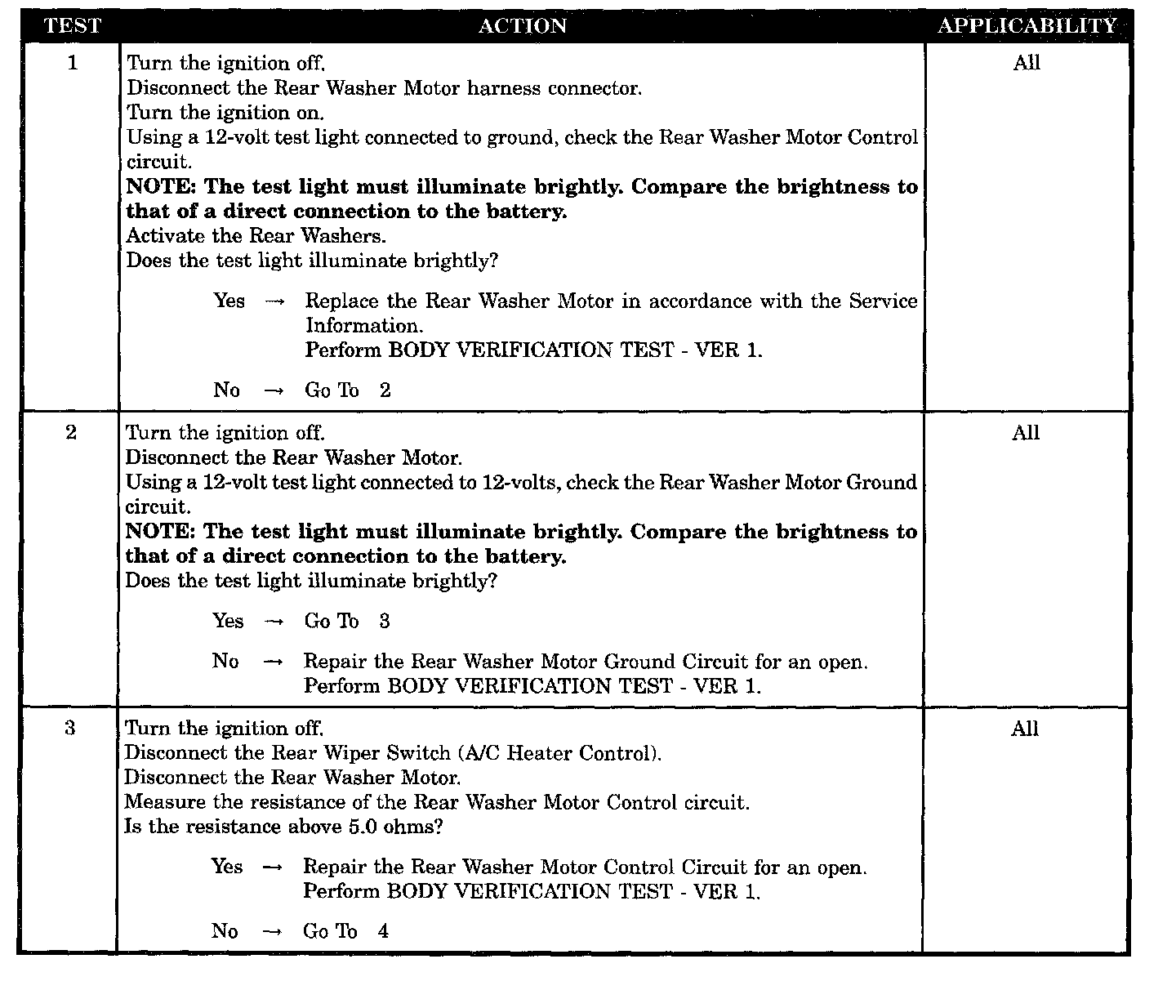

Test 1 - 3:

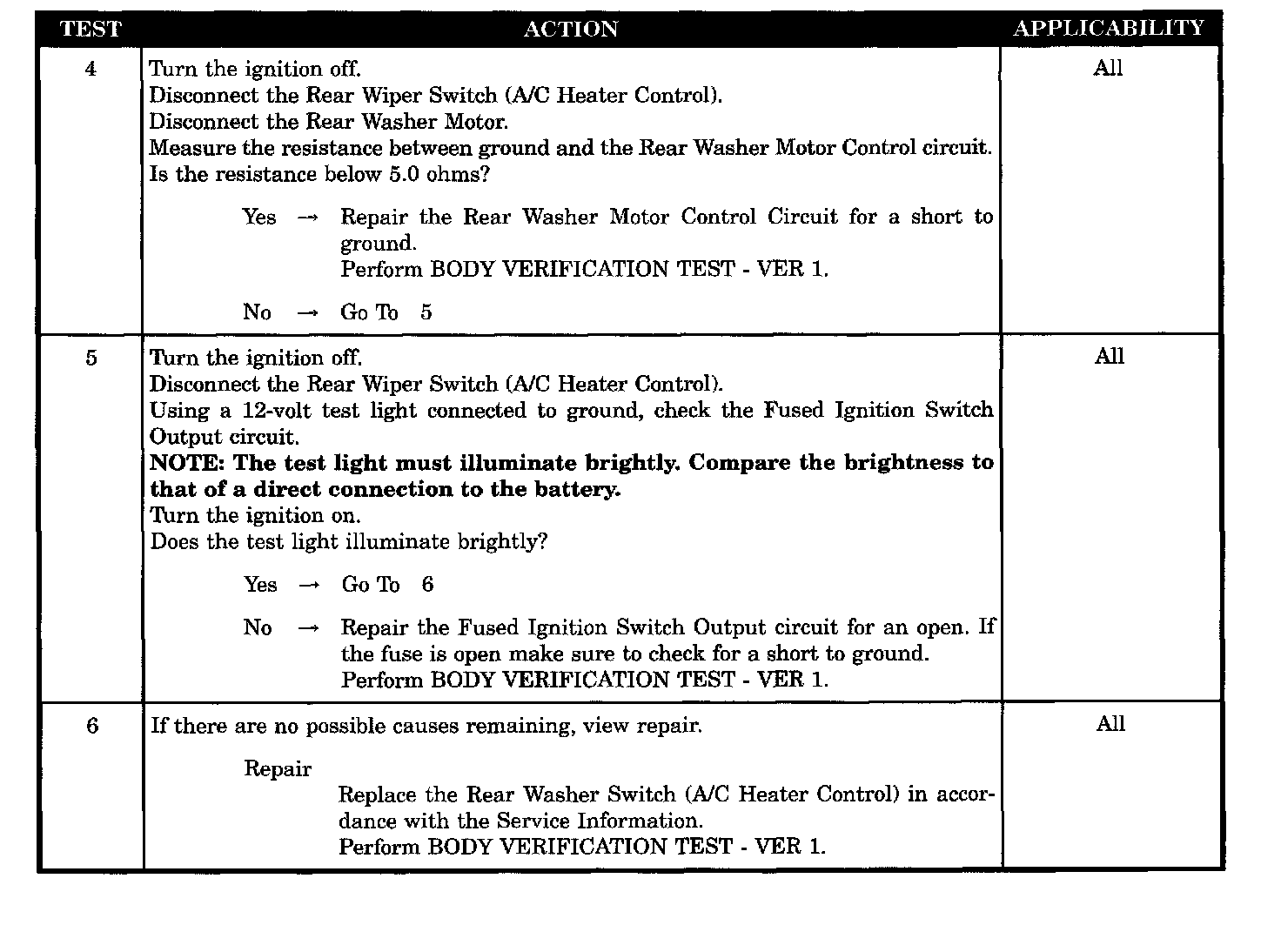

Test 4 - 6:

SYMPTOM
REAR WASHER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Rear washer motor
- Rear washer motor ground circuit open
- Rear washer motor control circuit open
- Rear washer motor control circuit shorted to ground
- Fused ignition switch output circuit
- Rear washer switch
