PRNDL Indicator Malfunction (4.7L)

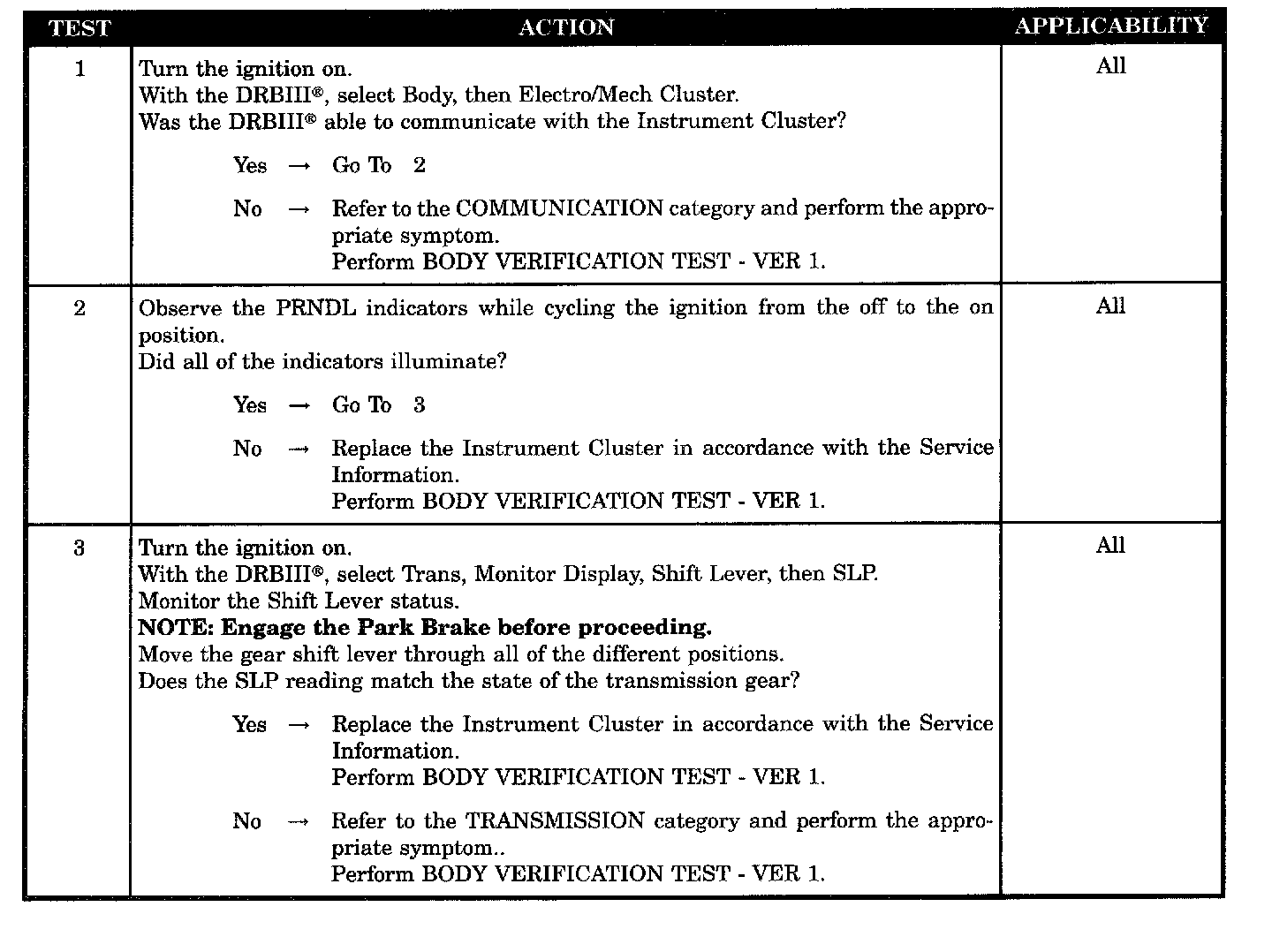

Test 1 - 3:






SYMPTOM
PRNDL INDICATOR MALFUNCTION (4.7L)

POSSIBLE CAUSES
- PCI bus communications - Instrument cluster
- Observe the PRNDL indicators
- Monitor the PRNDL indicator while shifting gears
- Instrument cluster
