Rear Blower Motor Inoperative

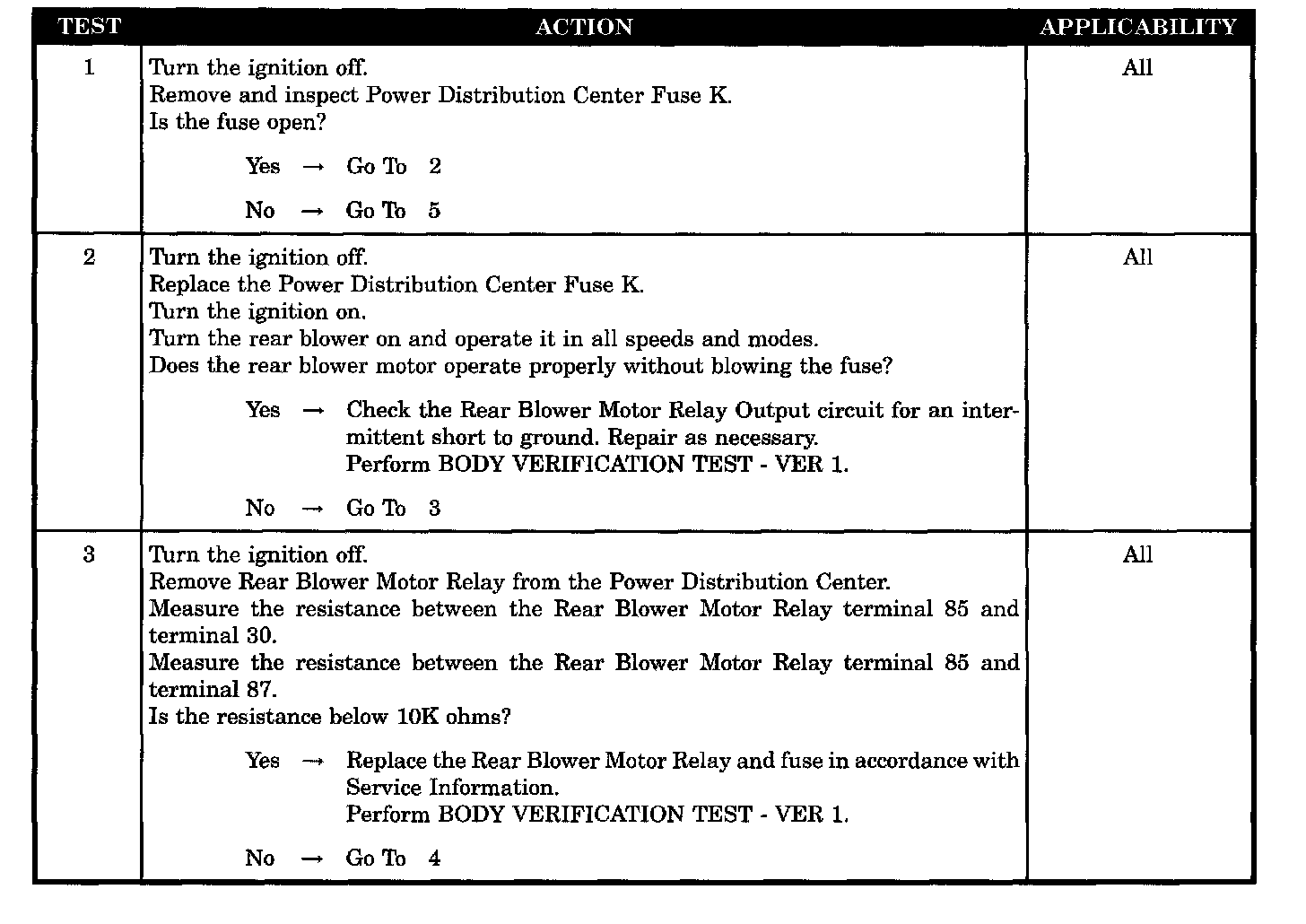

Test 1 - 3:

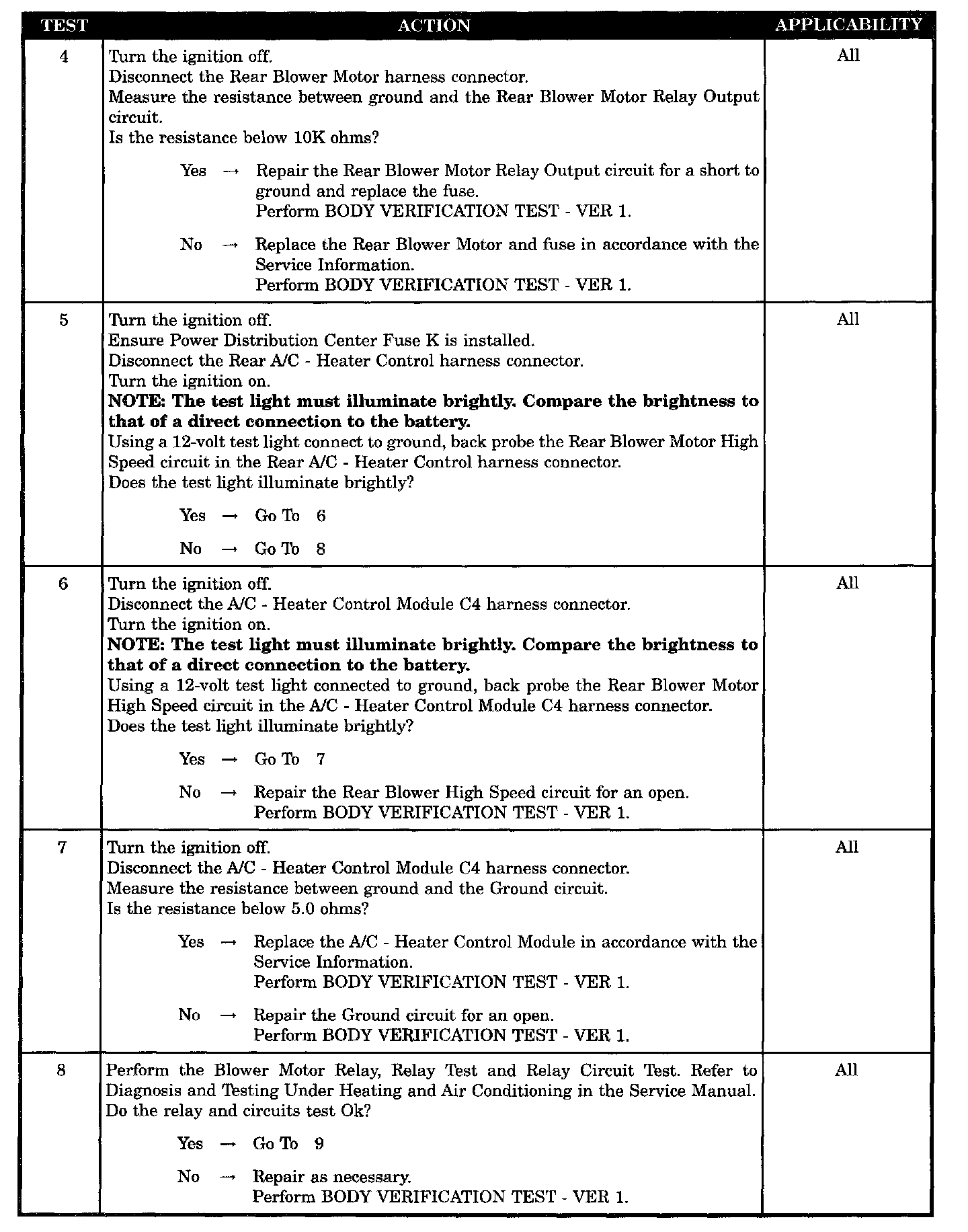

Test 4 - 8:

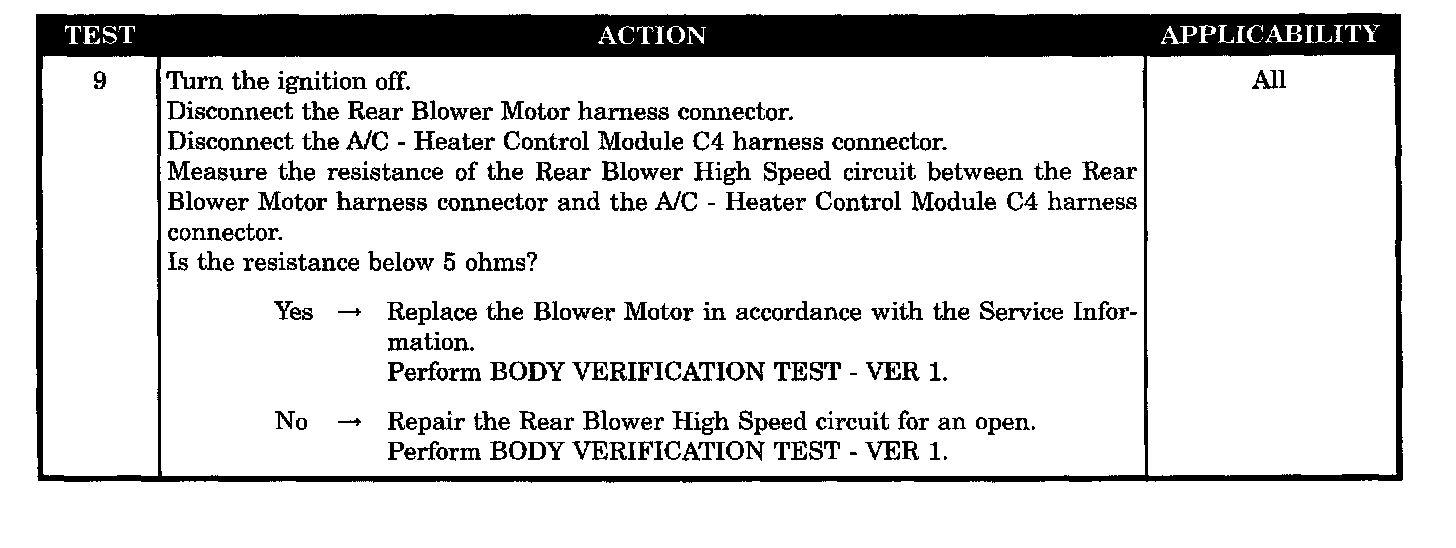

Test 9:

SYMPTOM
REAR BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Power distribution center fuse K
- Rear blower motor relay shorted to ground
- Rear blower motor relay output circuit shorted to ground
- Blower motor shorted to ground
- Rear blower high speed circuit open
- Ground circuit open
- A/C - Heater control module open
- Checking rear blower motor relay and relay circuits
- Rear blower high speed circuit open
- Blower motor
