Any Hardwired Cluster Indicator Inoperative

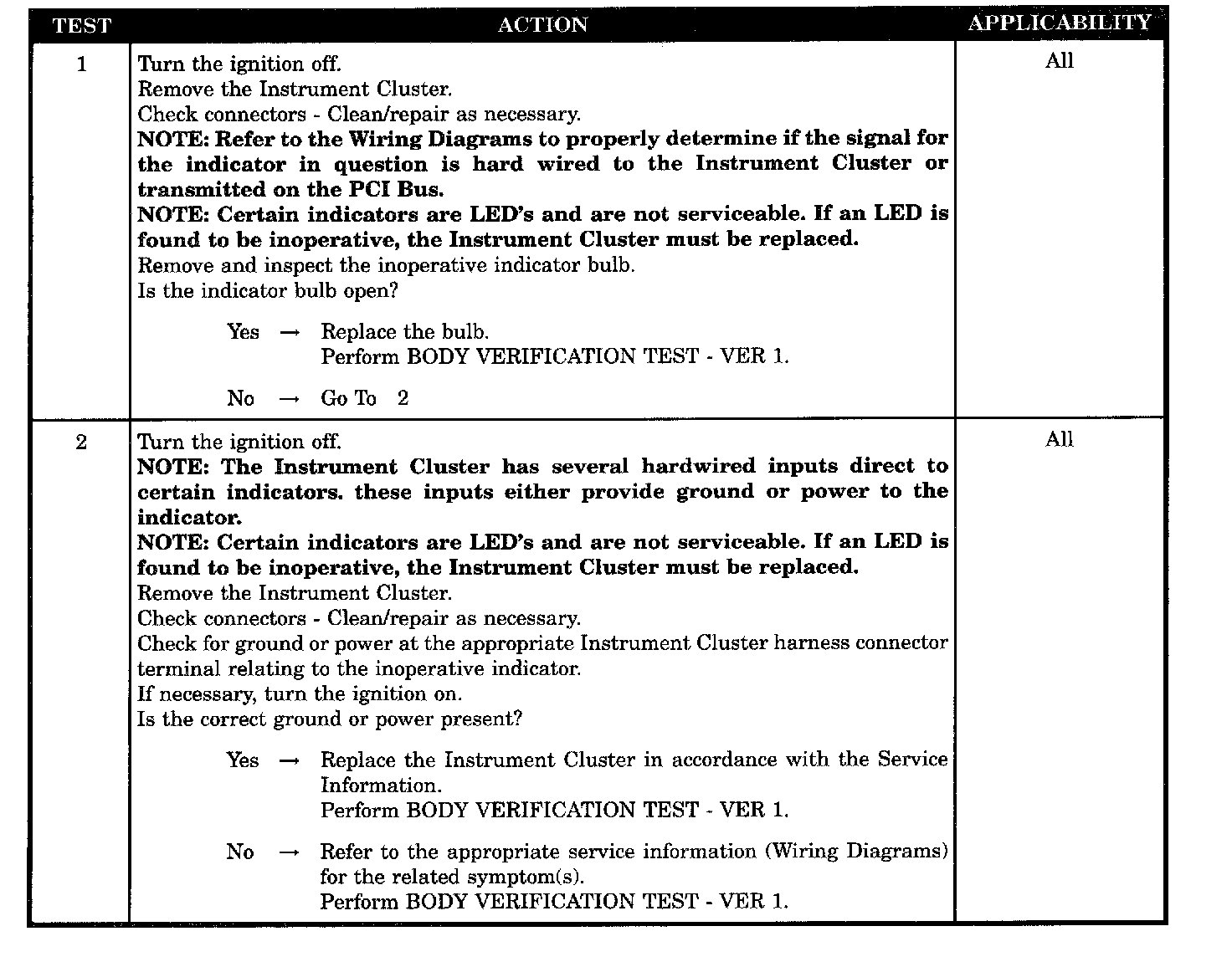

Test 1 - 2:






SYMPTOM
ANY HARDWIRED CLUSTER INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Inoperative indicator
- Indicator circuit fault
- Instrument cluster
