Durango 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)
8w-10-2 Power Distribution Center:

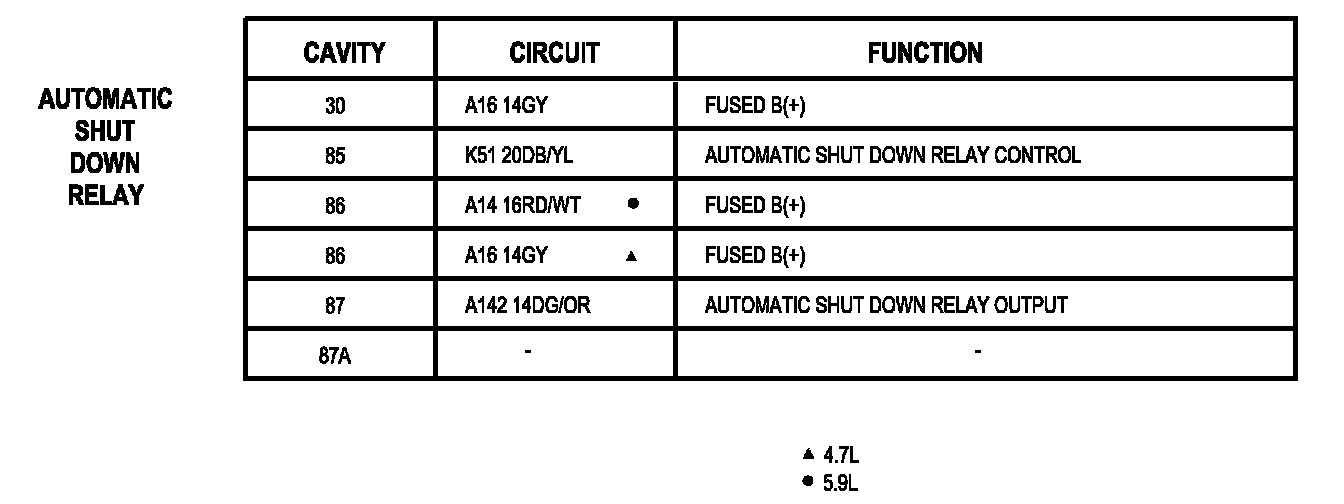

Automatic Shut Down Relay:
