Power Distribution Center

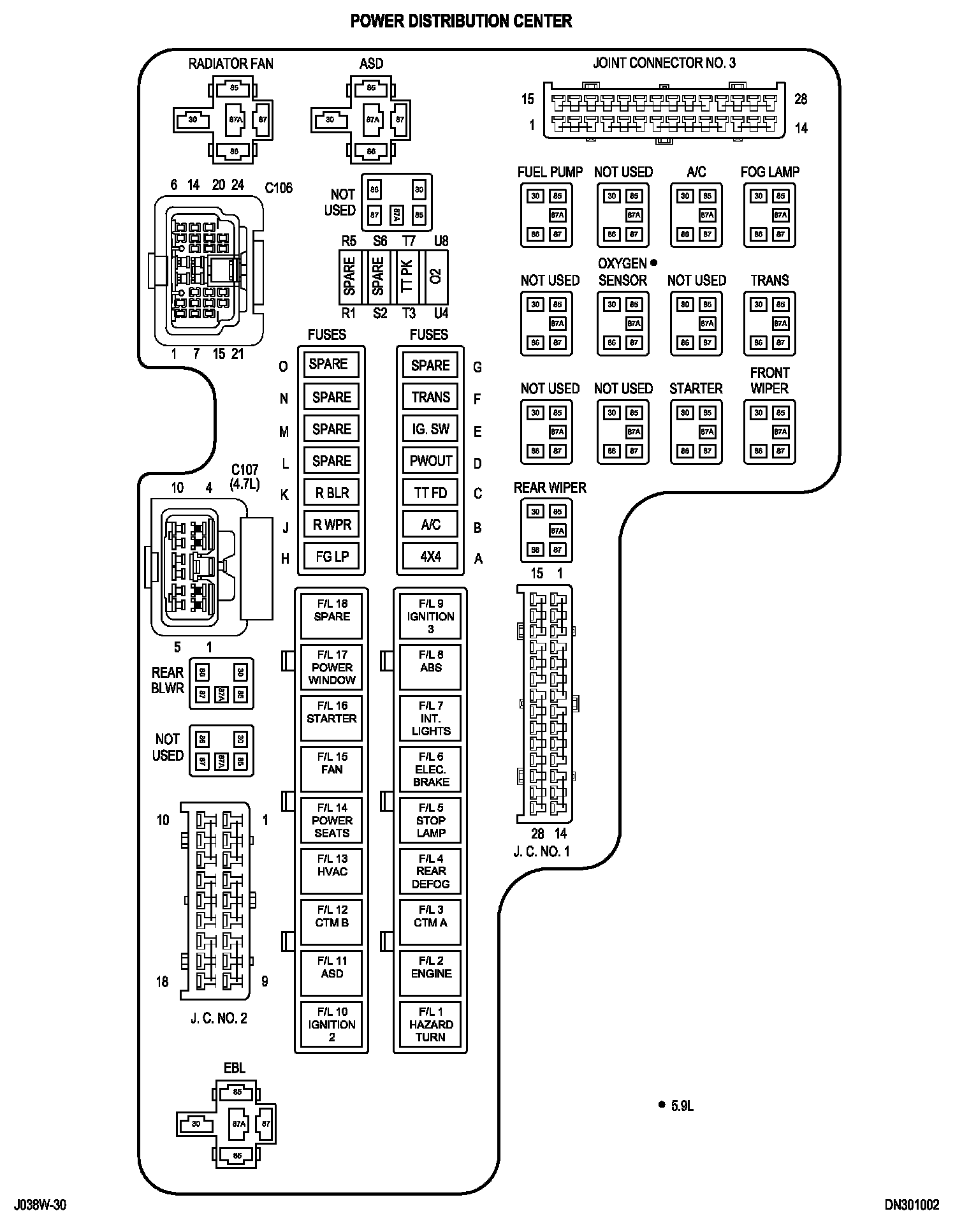

8w-10-2 Power Distribution Center:

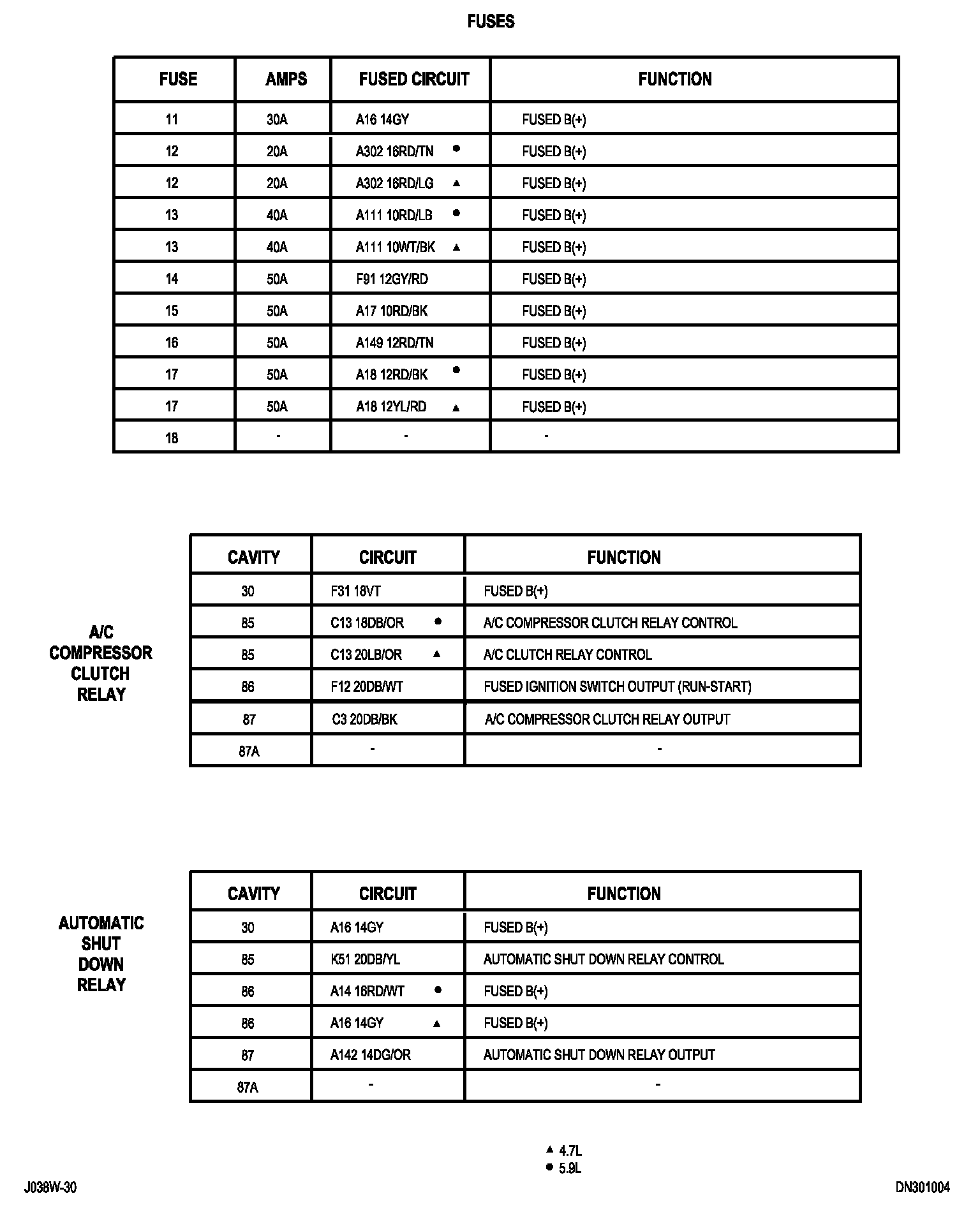

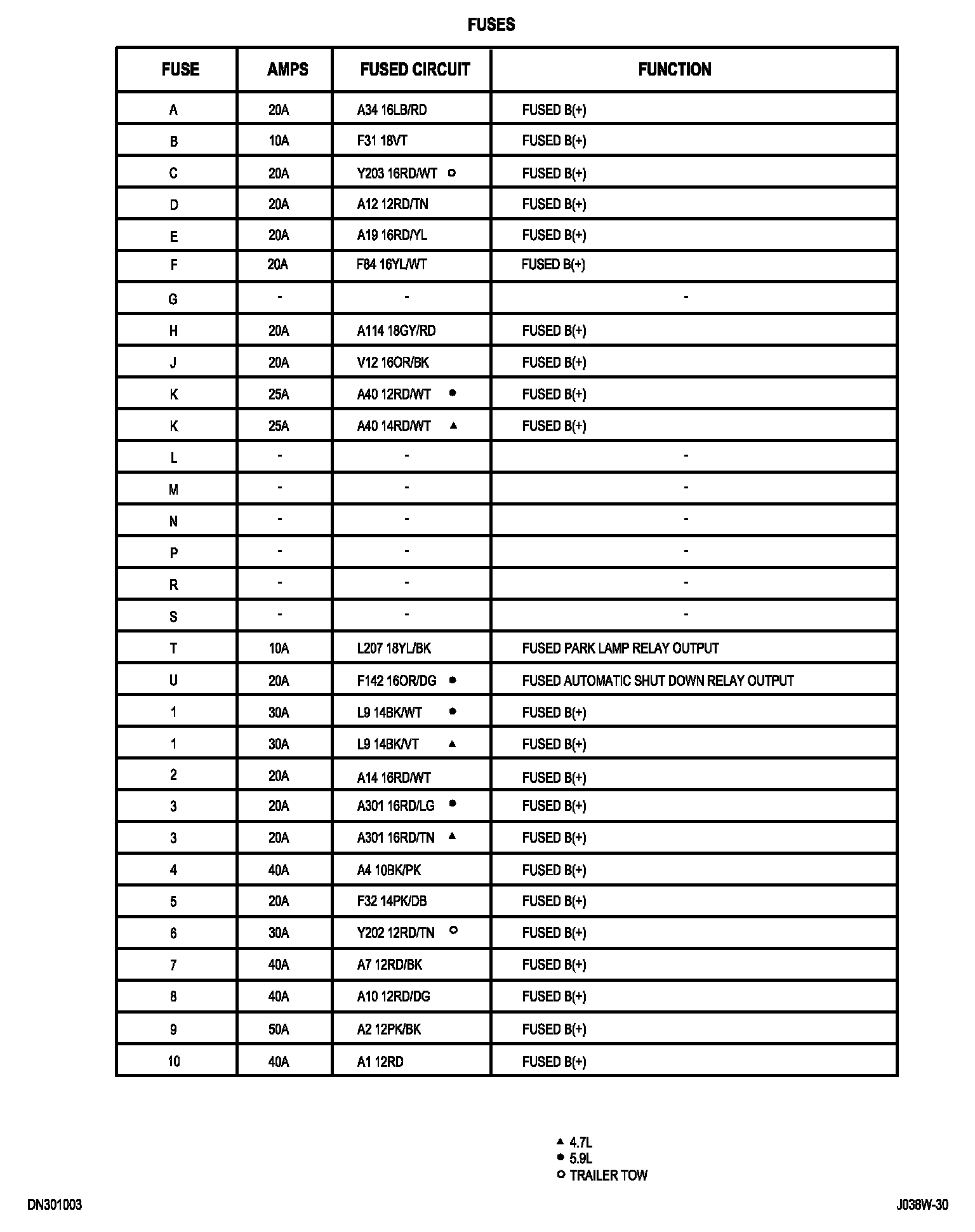

8w-10-3 Fuses (PDC):





8w-10-04:





8w-10-5:





8w-10-6:





8w-10-7:





8w-10-8:





8w-10-9 (4.7):





8w-10-10:





8w-10-11:





8w-10-12:





8w-10-13:
