Junction Block

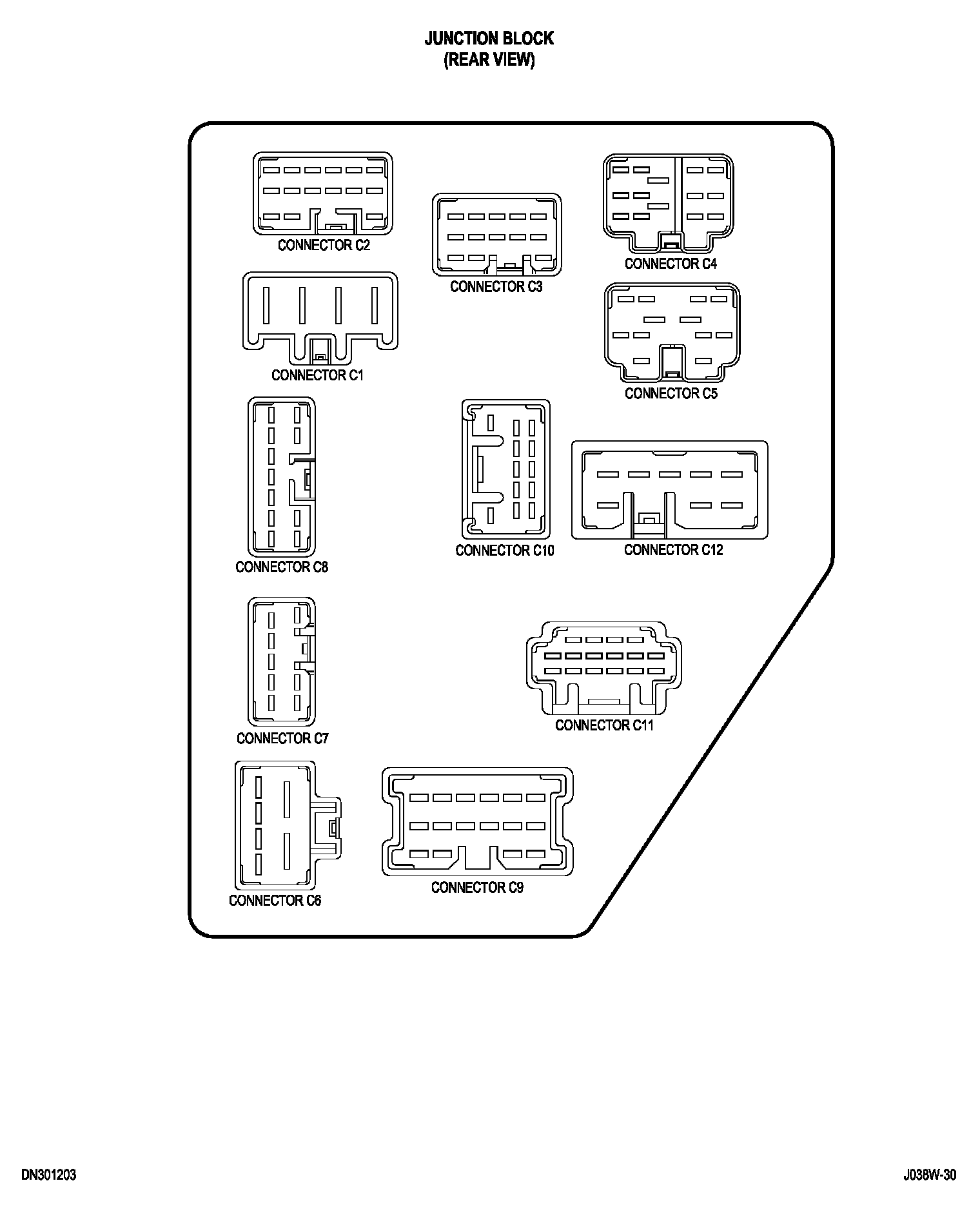

8w-12-3 Junction Block (Rear View):

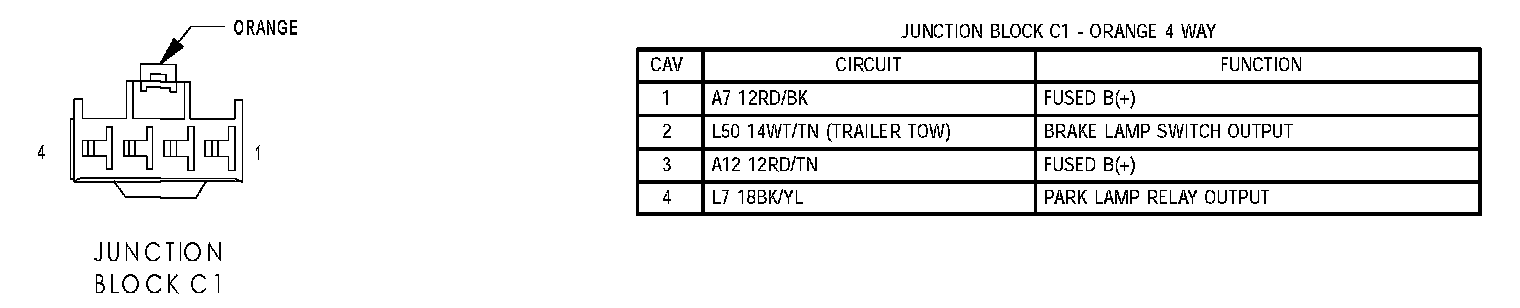

Junction Block C1:

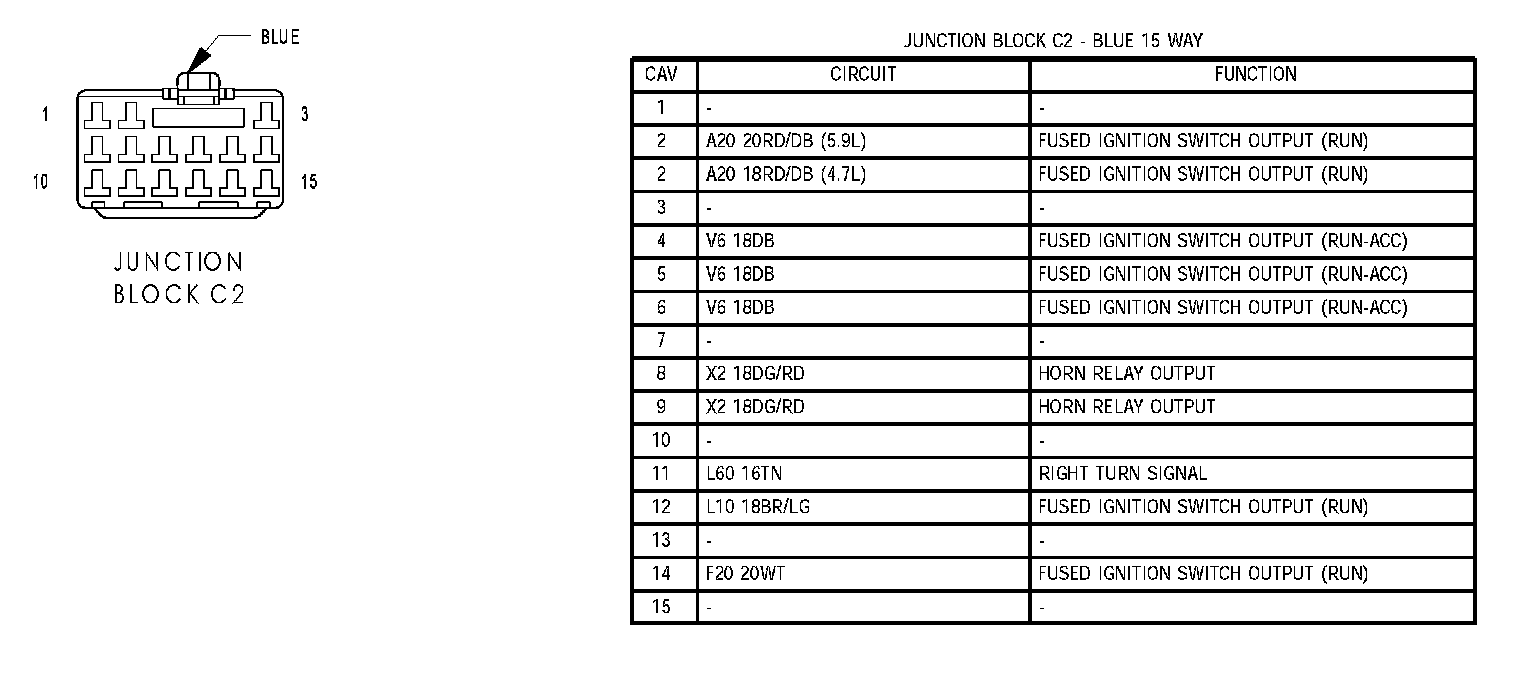

Junction Block C2:

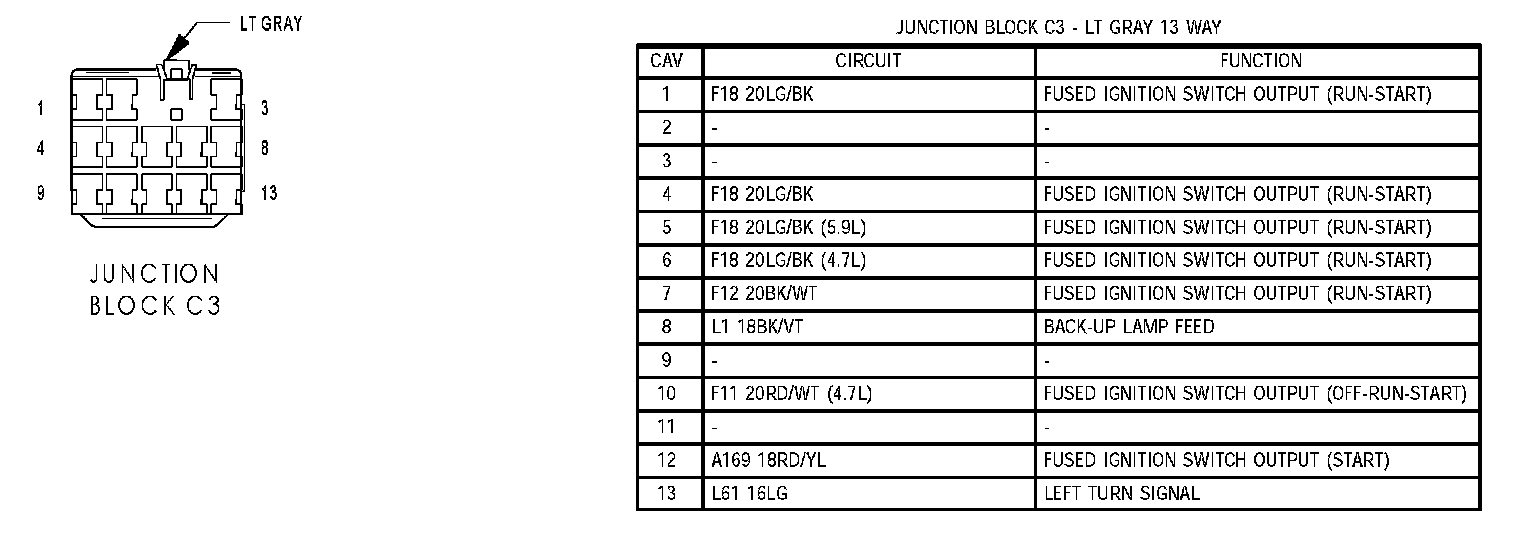

Junction Block C3:

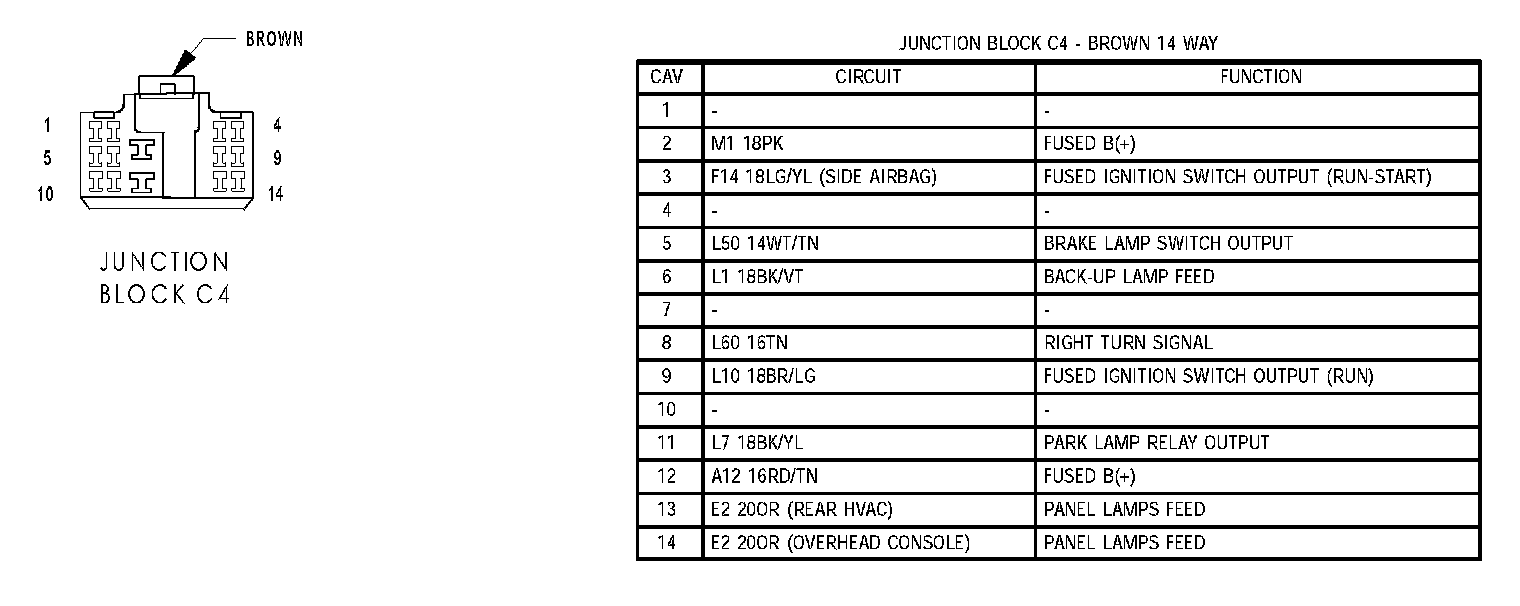

Junction Block C4:

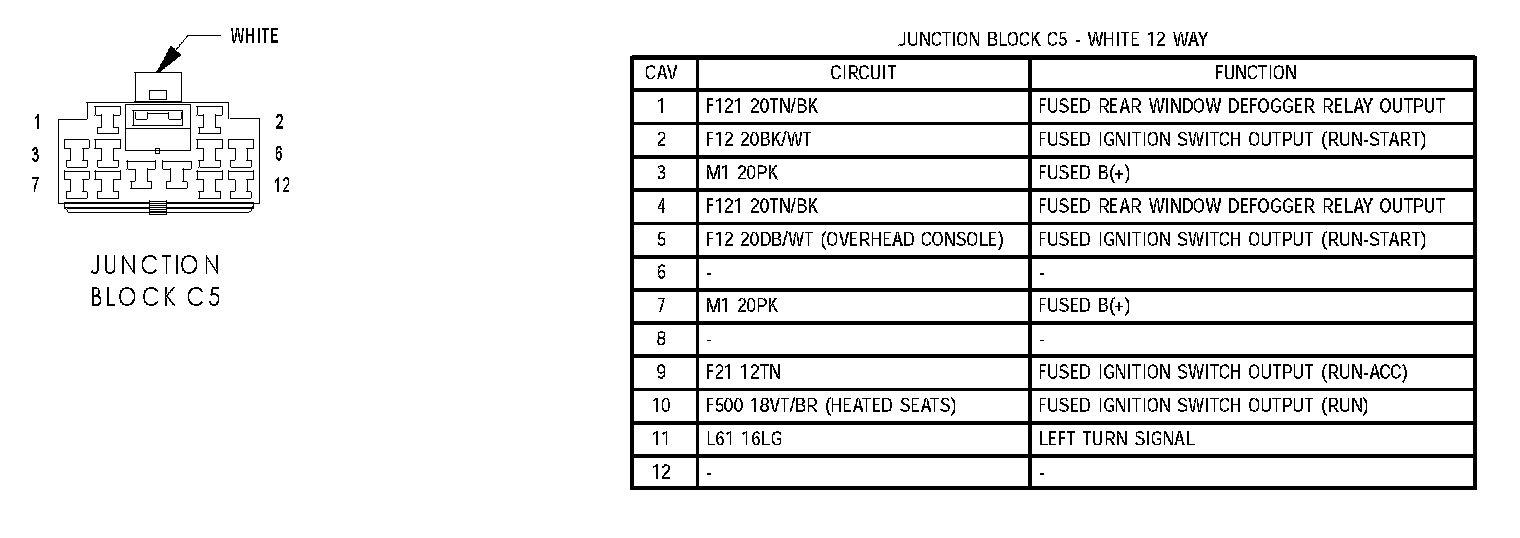

Junction Block C5:

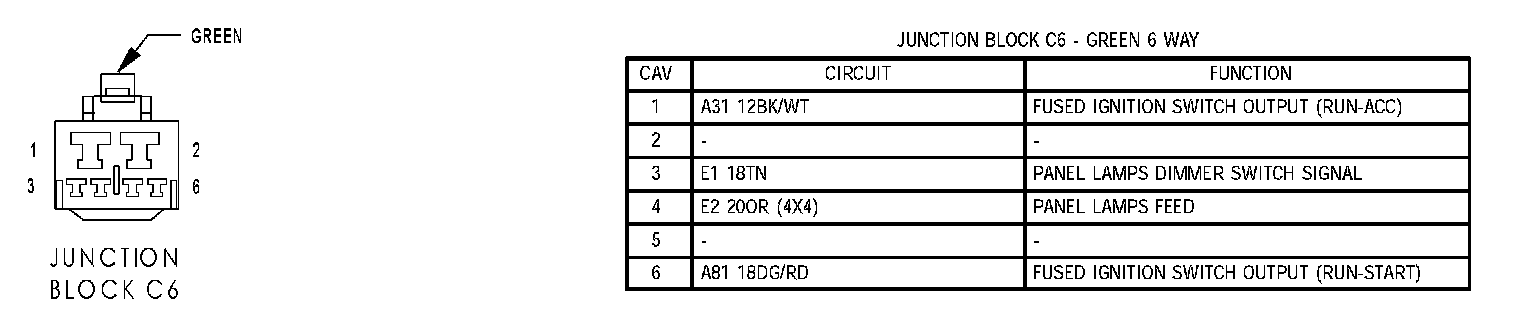

Junction Block C6:

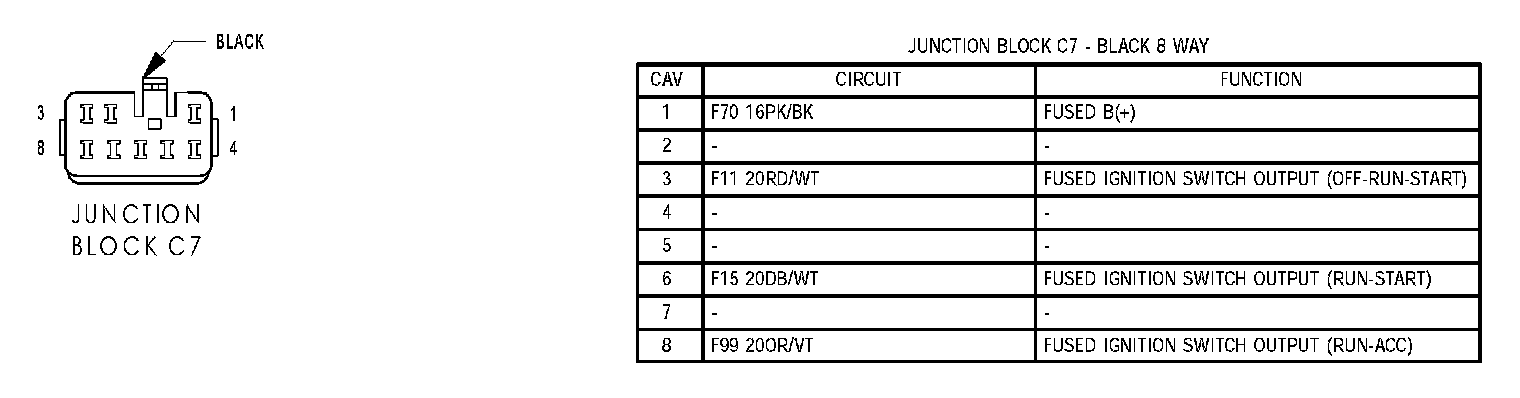

Junction Block C7:

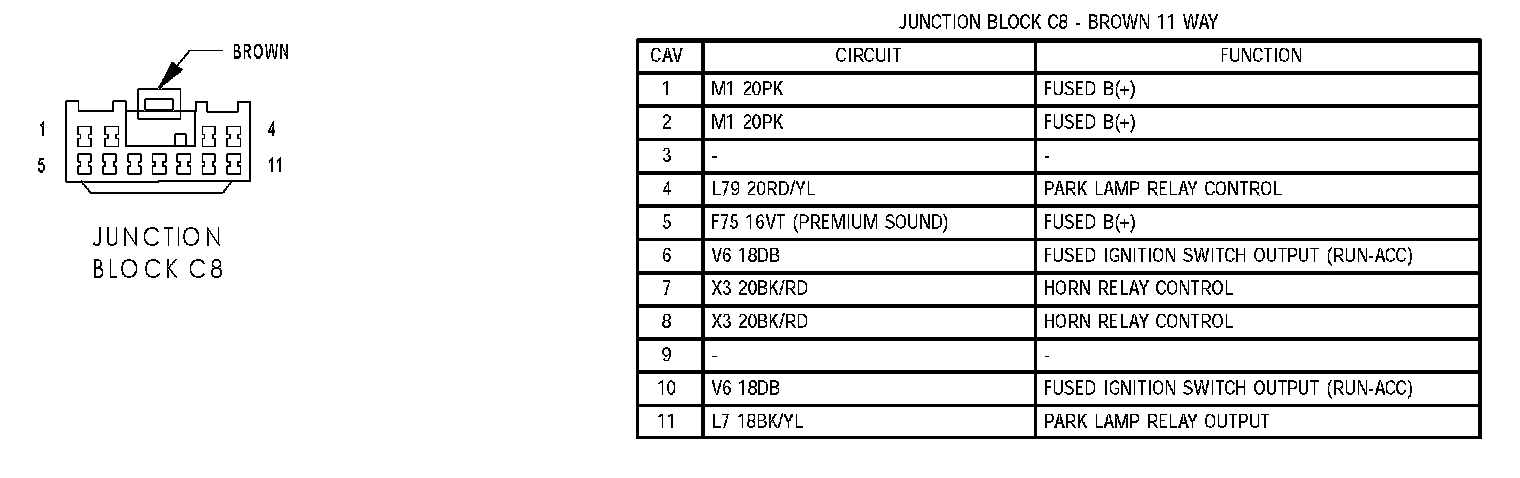

Junction Block C8:

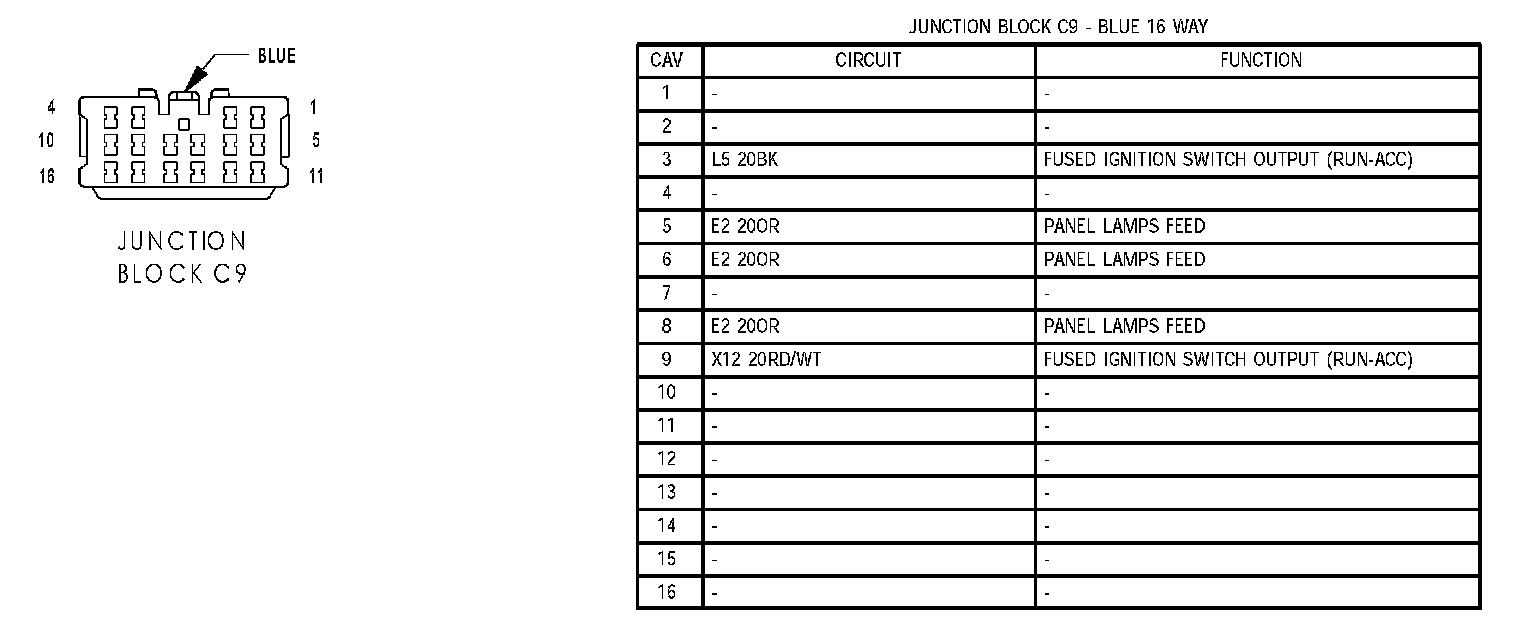

Junction Block C9:

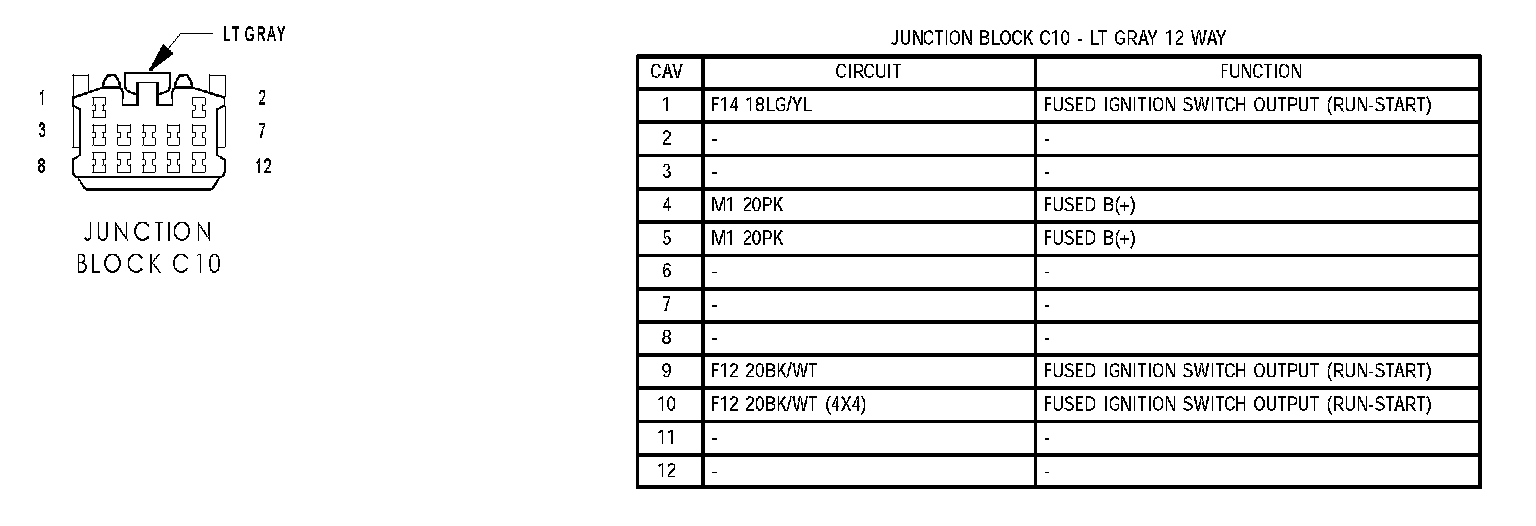

Junction Block C10:

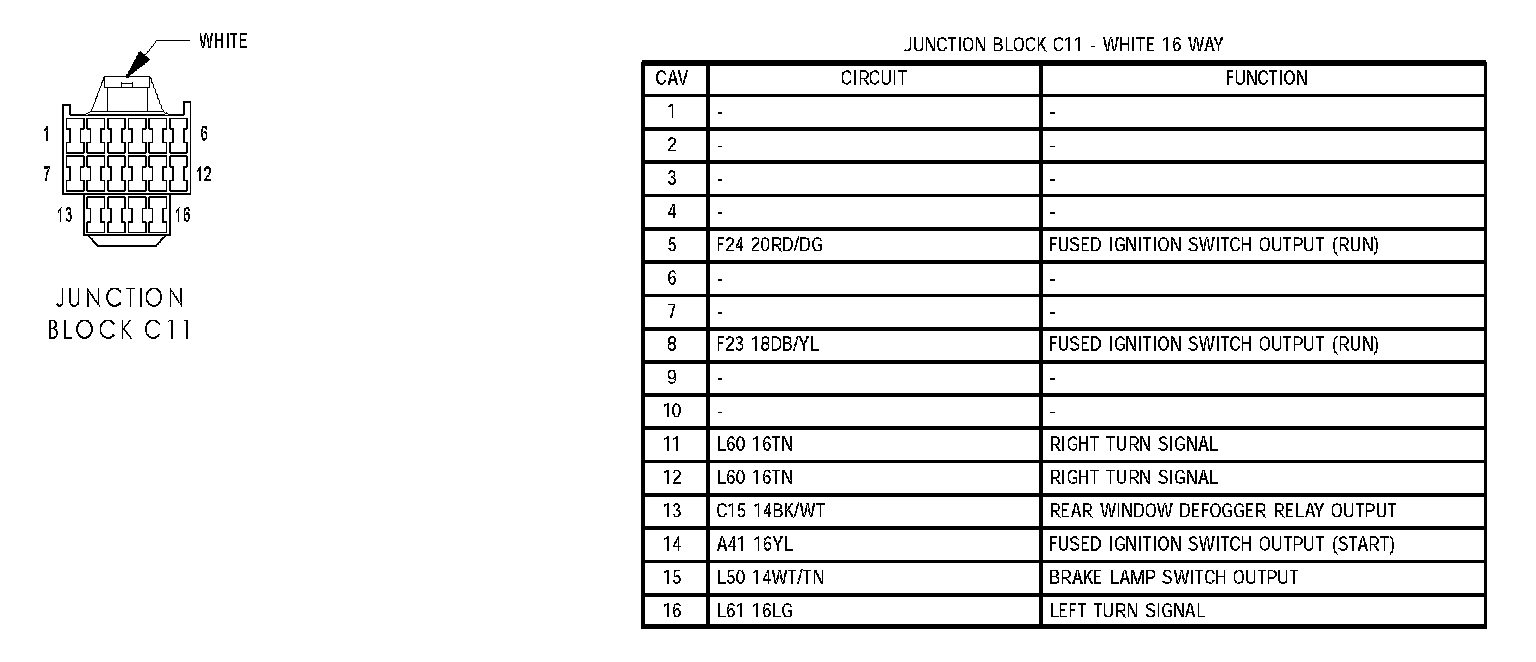

Junction Block C11:

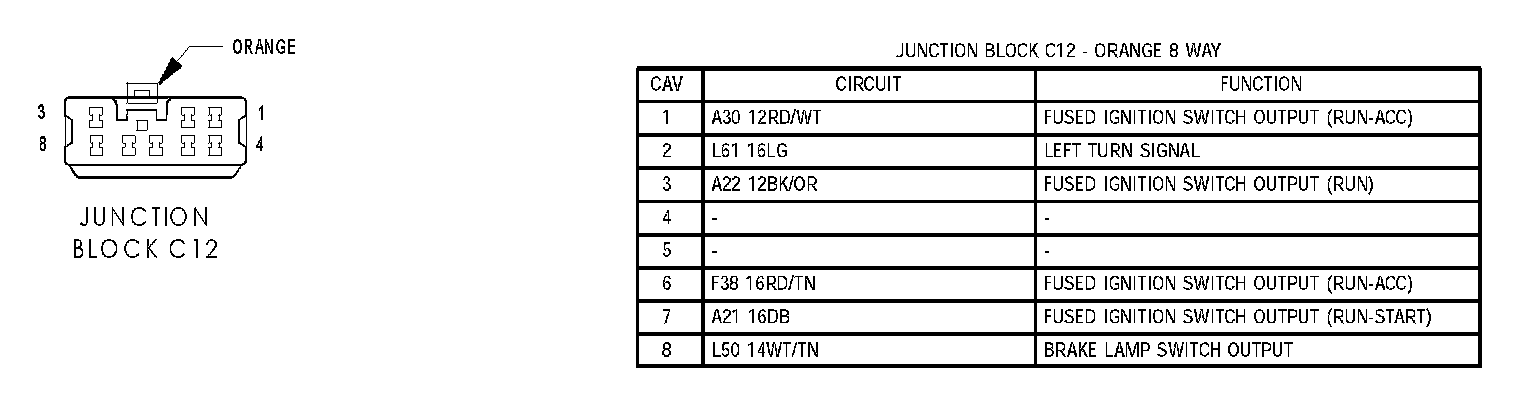

Junction Block C12:
