Electronic Brake Control Module

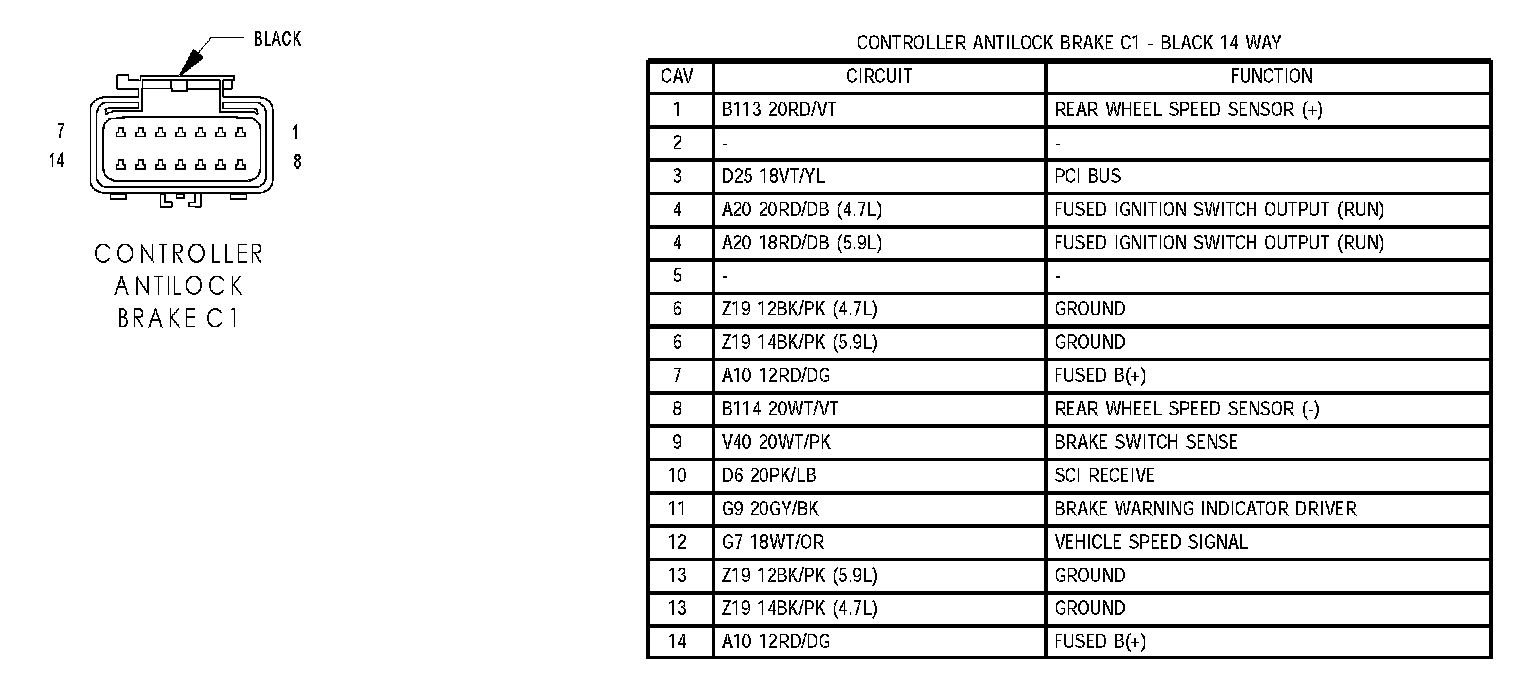

Controller Anticlock Brake C1:

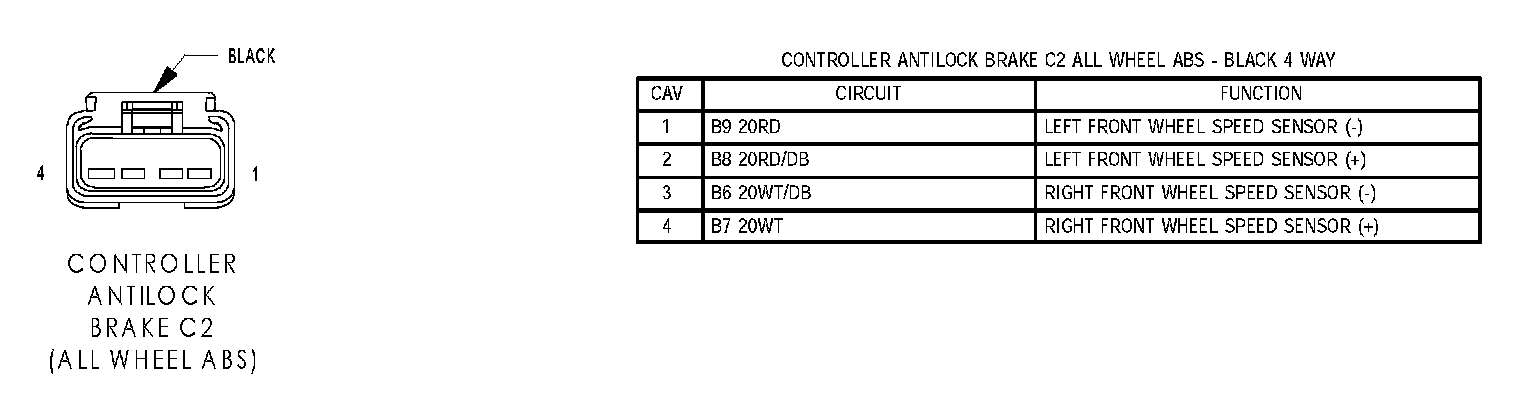

Controller Anticlock Brake C2 (All-Wheel ABS):
