Home >> Dodge and Ram >> 2003 >> Durango 2WD V8-4.7L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module

Door Module

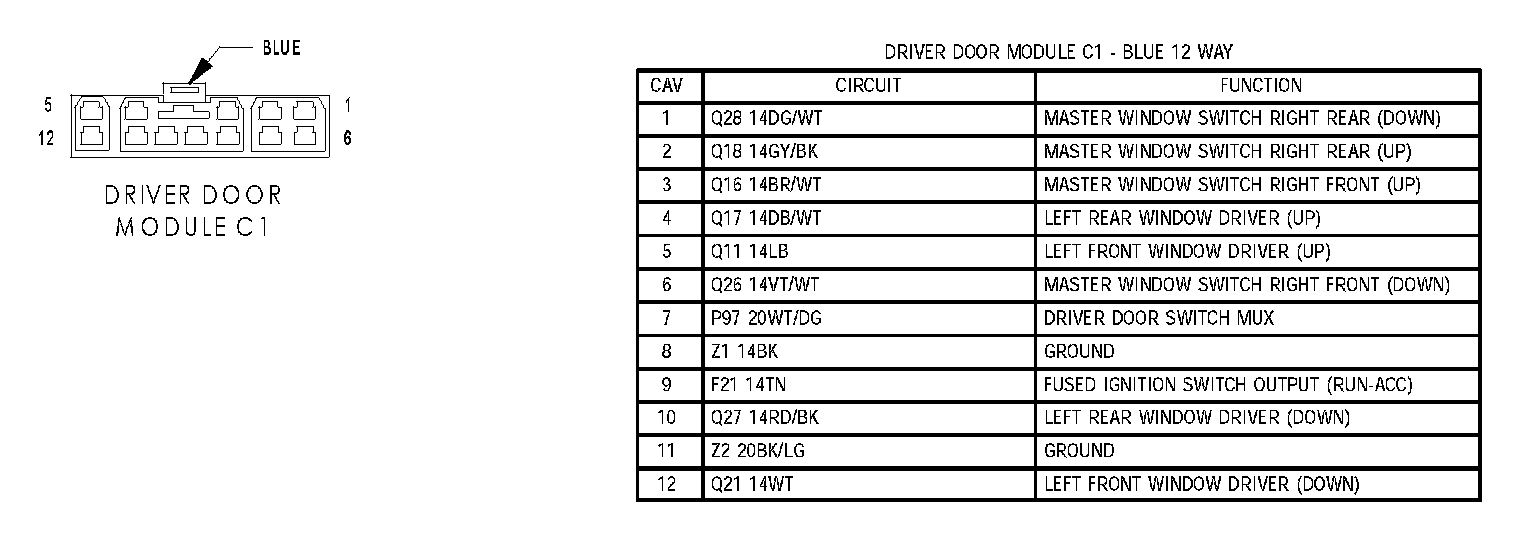

Driver Door Module C1:

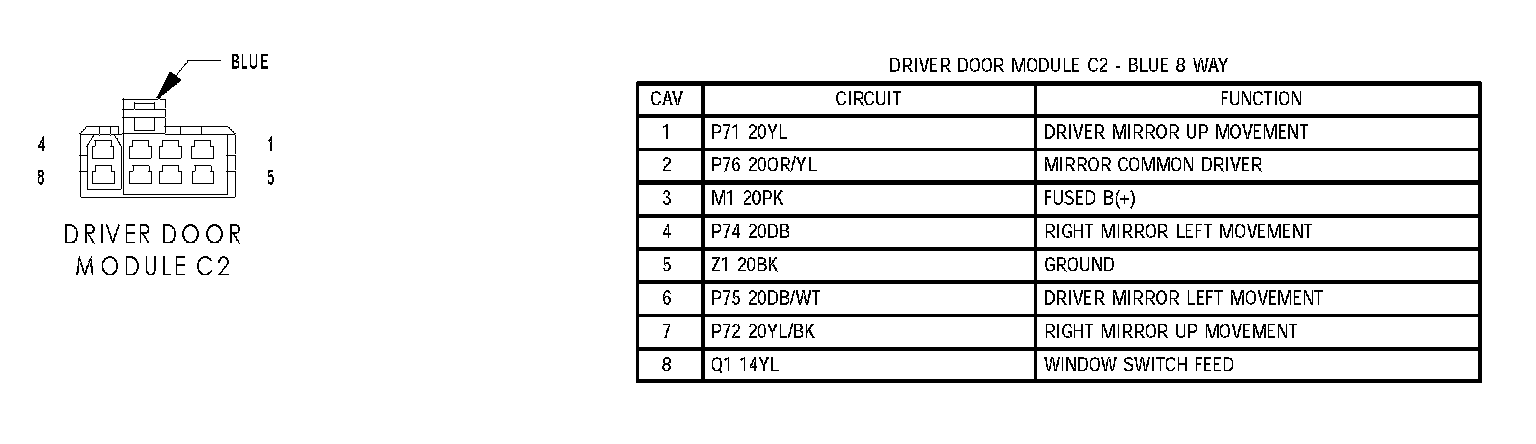

Driver Door Module C2:
