Durango 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

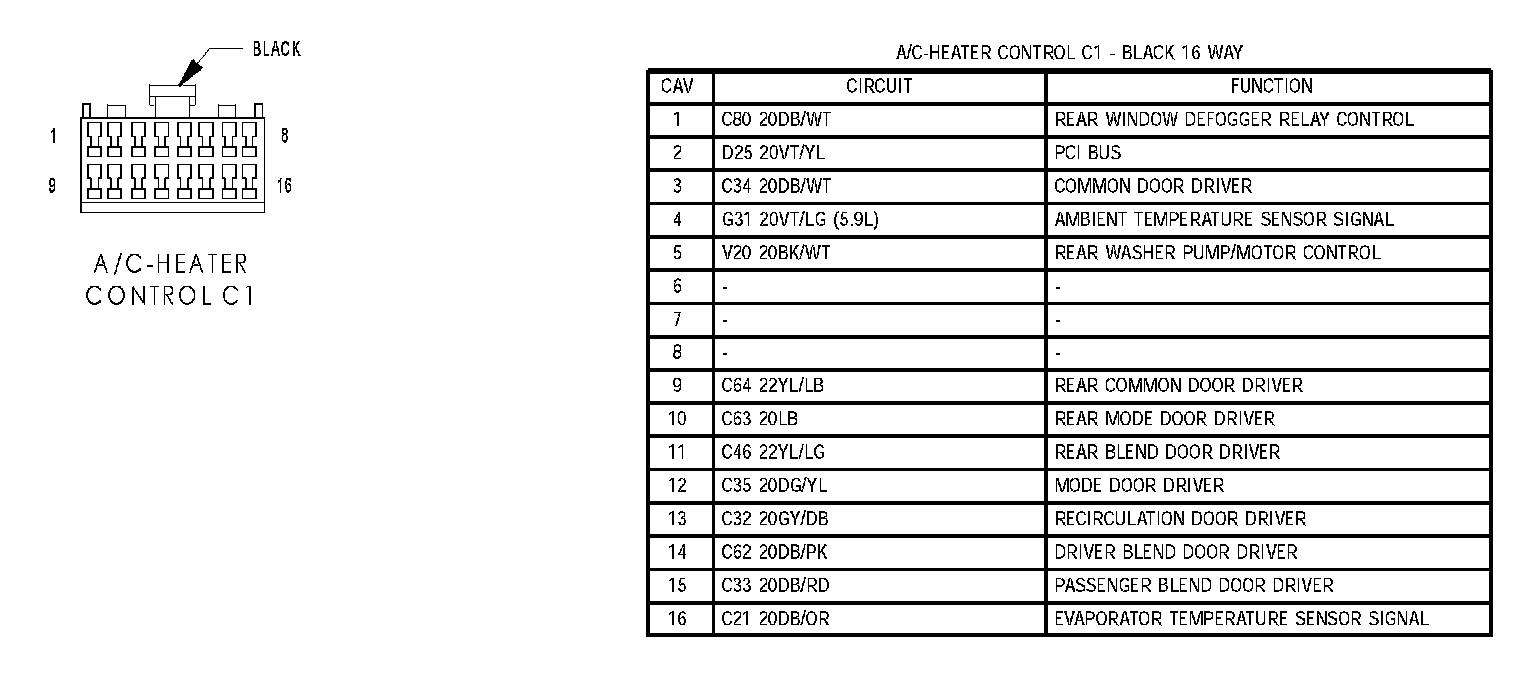

A/C-Heater Control C1:

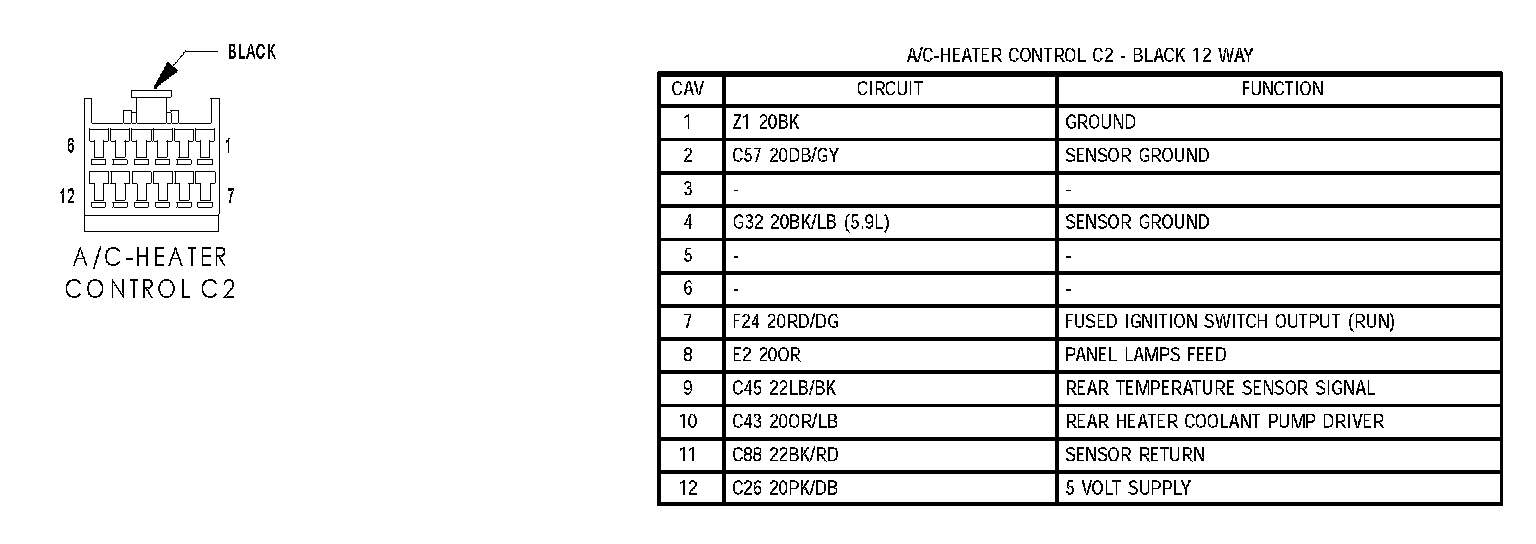

A/C-Heater Control C2:

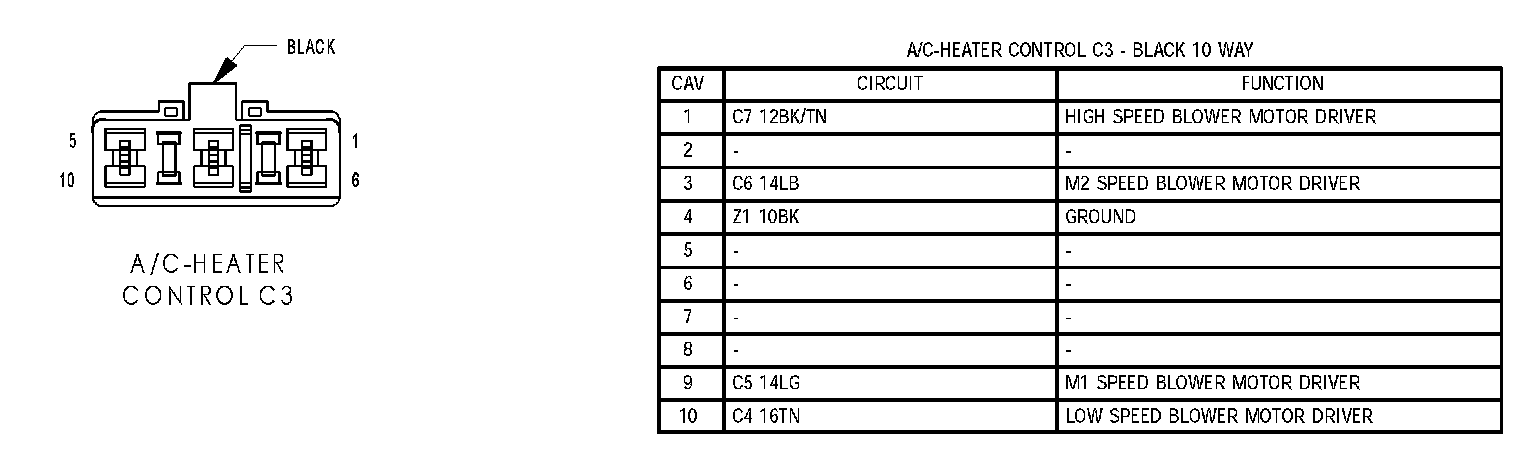

A/C-Heater Control C3:

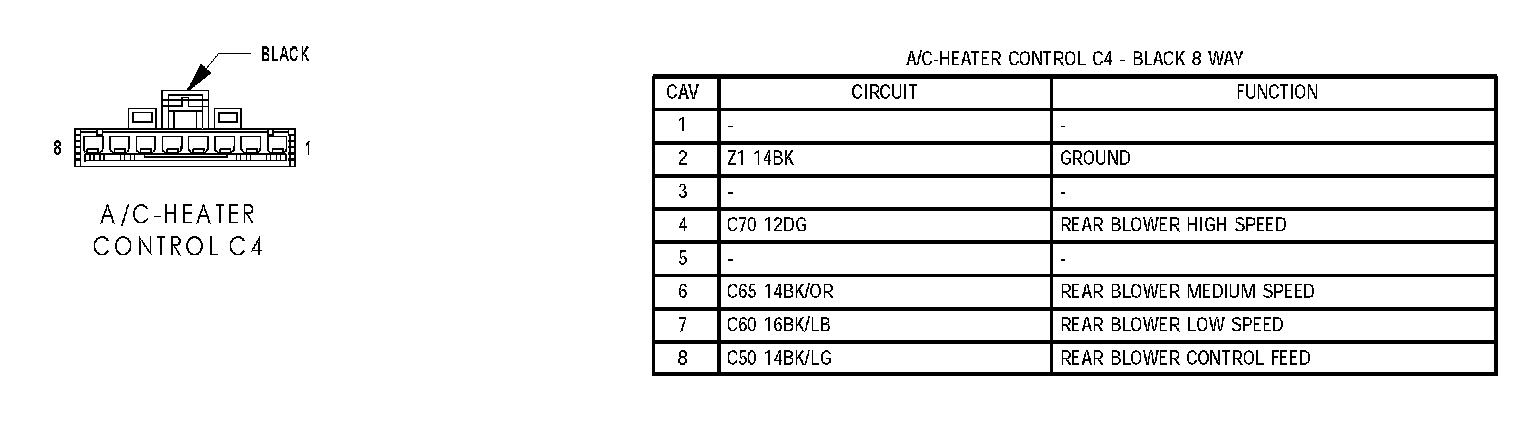

A/C-Heater Control C4:

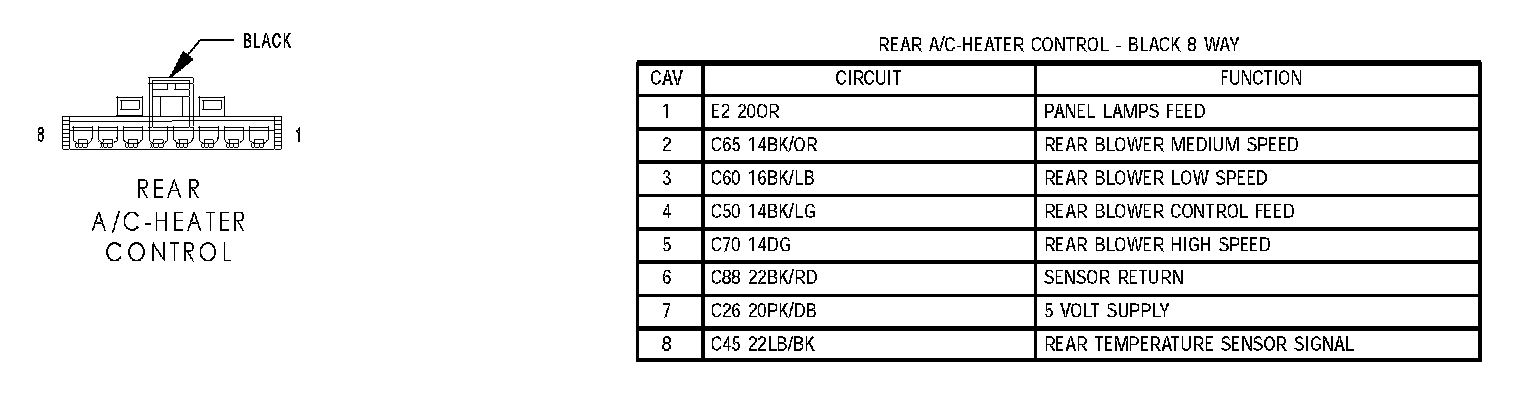

Rear A/C-Heater Control:
