Home >> Dodge and Ram >> 2003 >> Durango 2WD V8-4.7L VIN N >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams

Seat Temperature Control Module: Diagrams

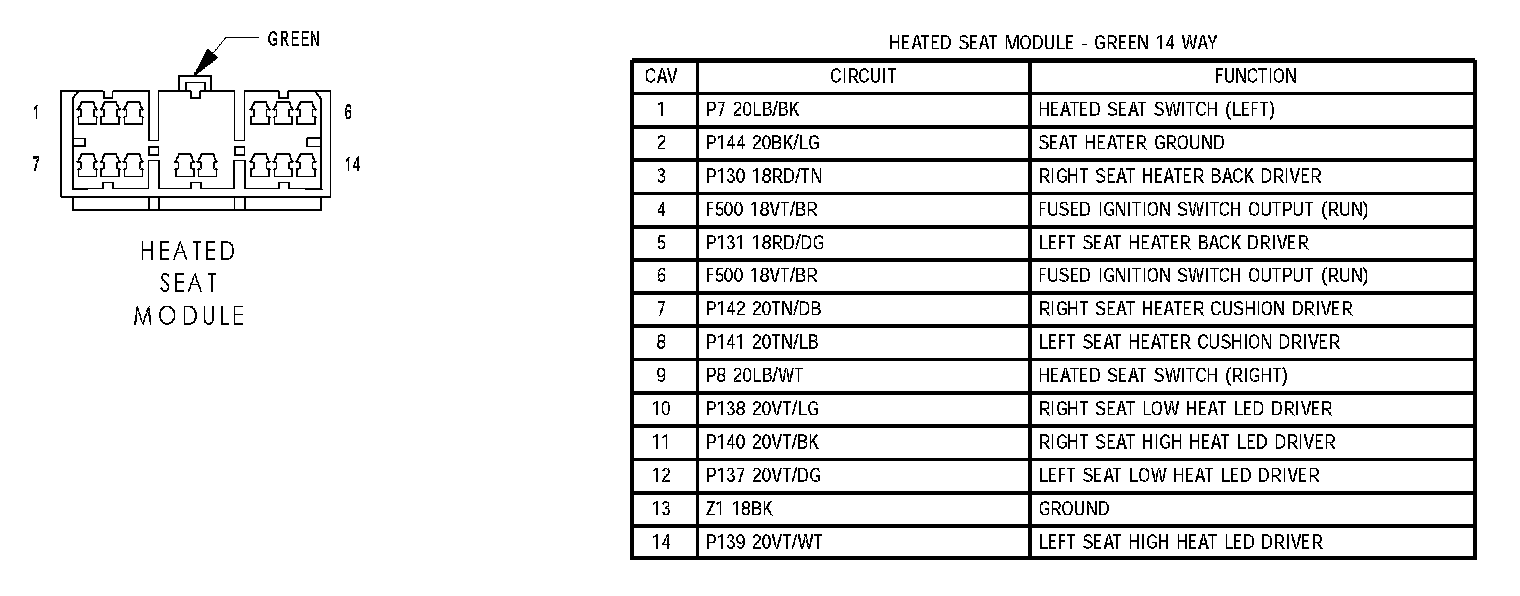

Heated Seat Module:
