Front Wiper Intermittent Inoperative

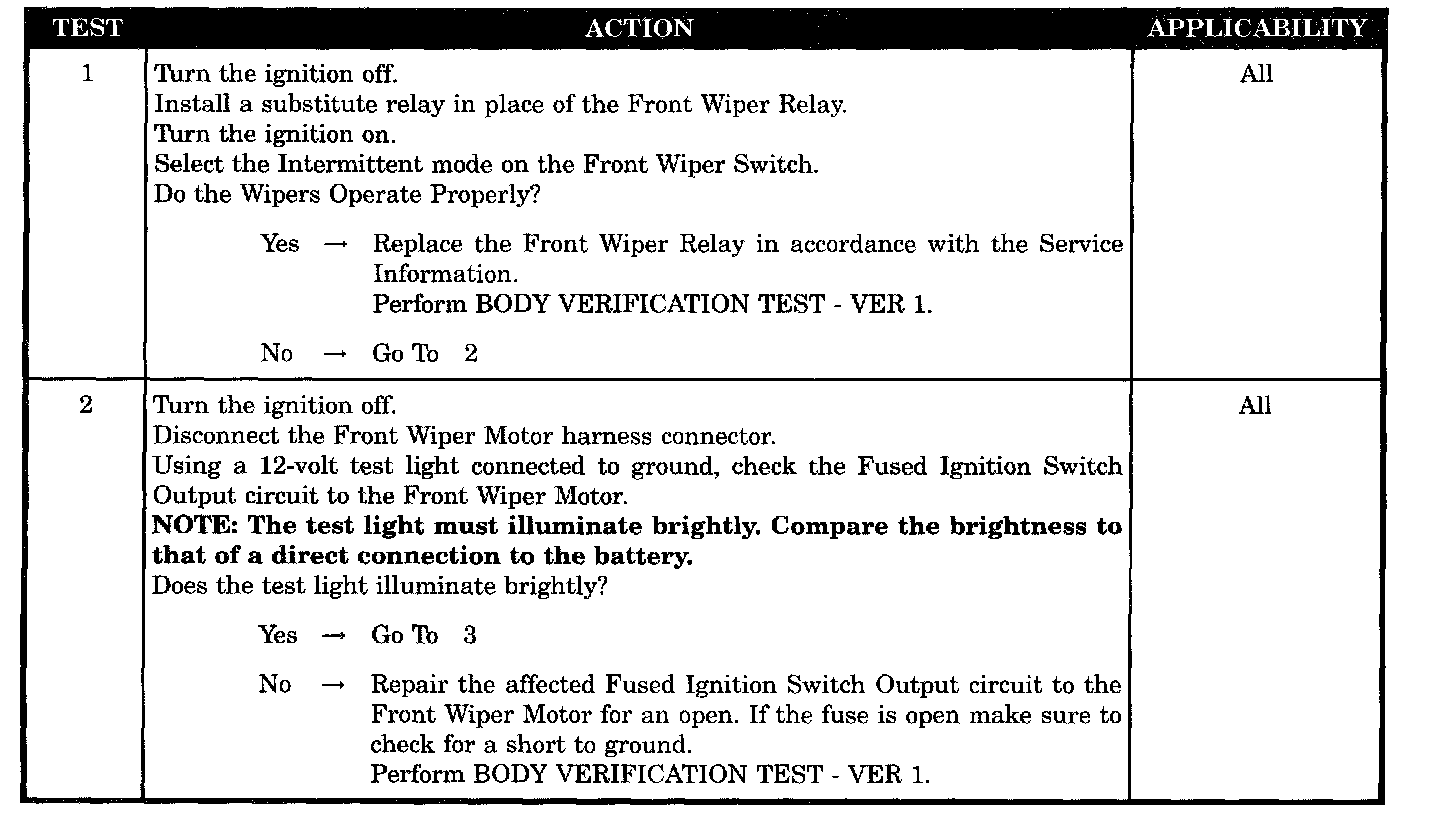

Test 1 - 2:

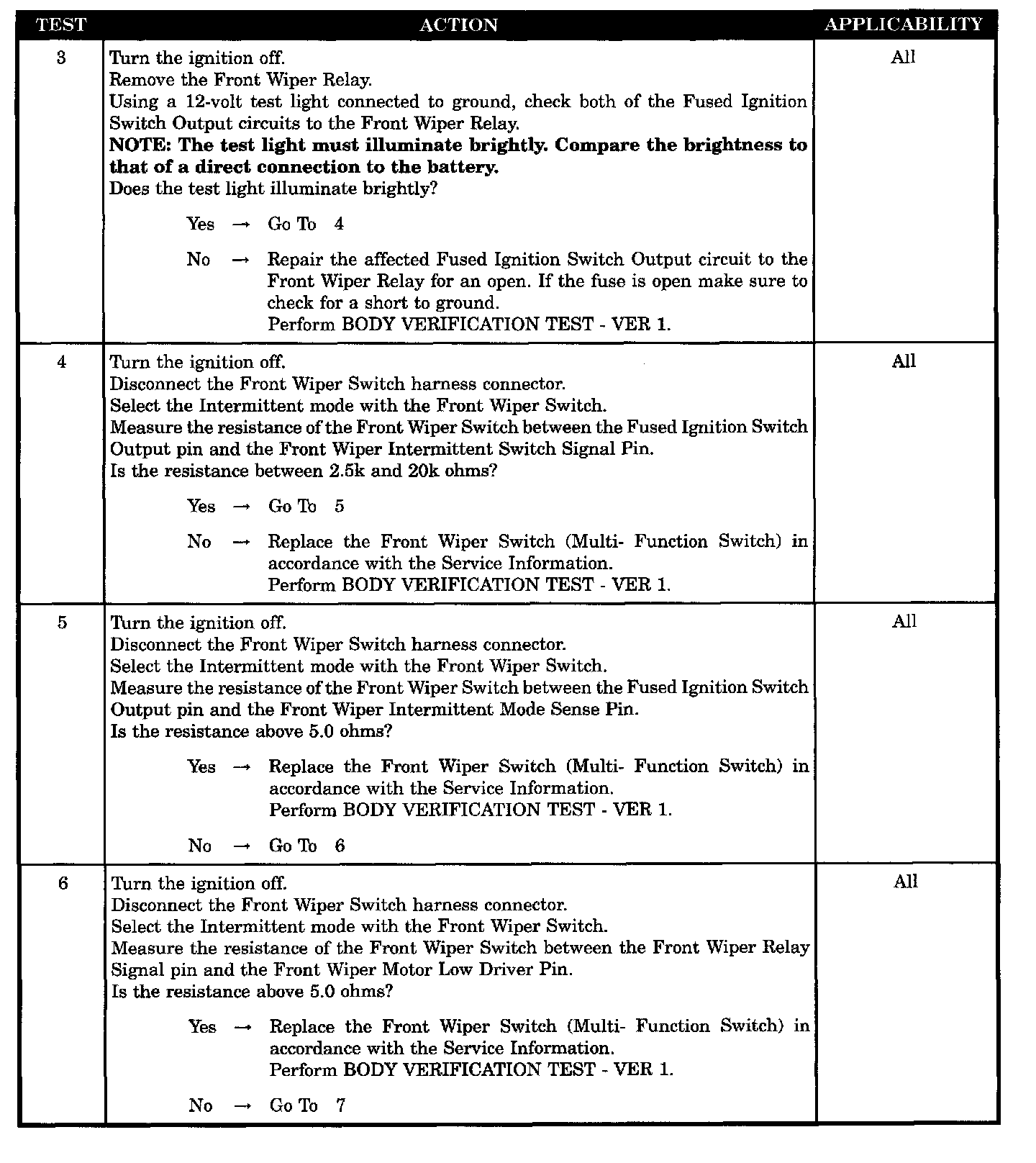

Test 3 - 6:

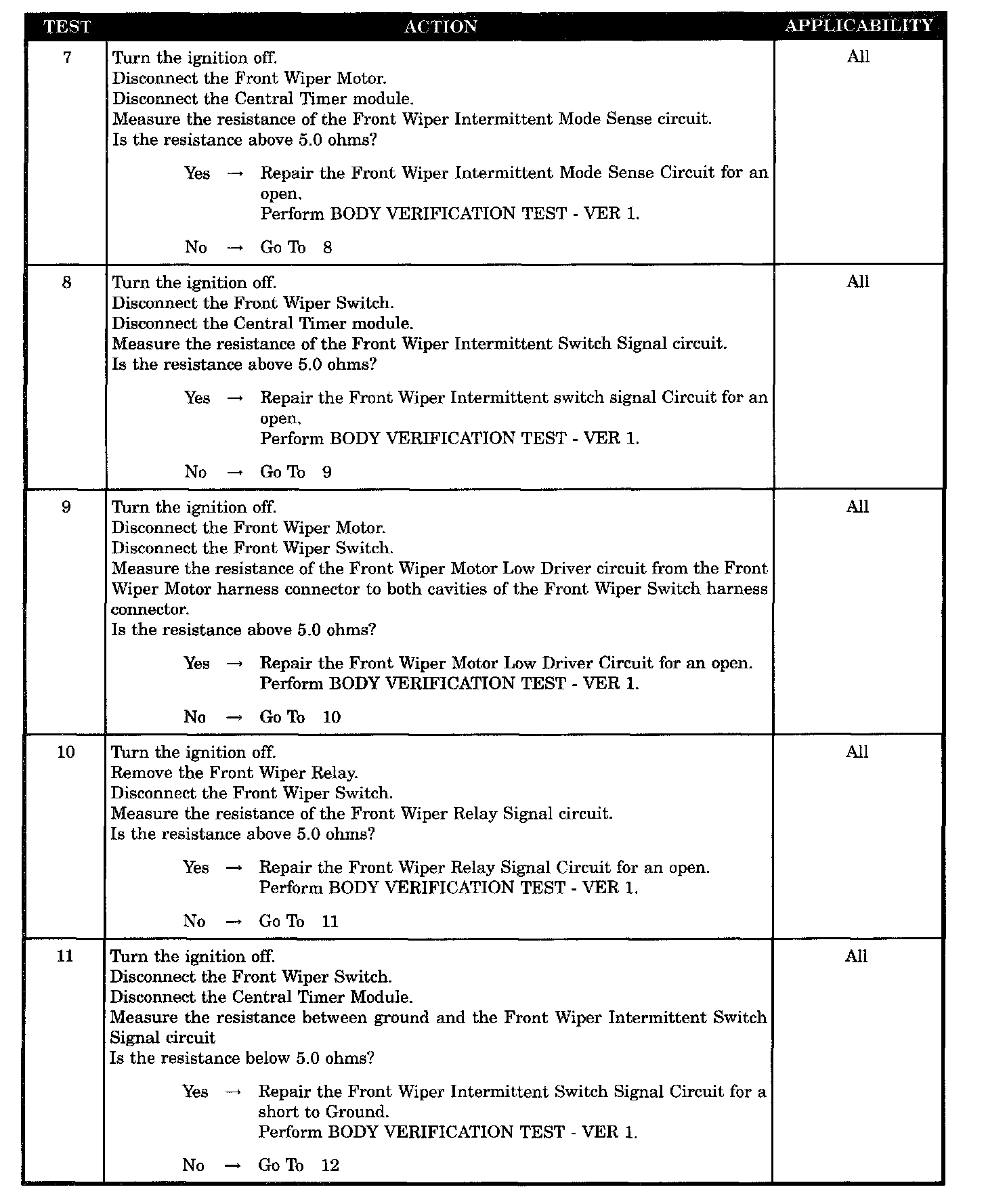

Test 7 - 11:

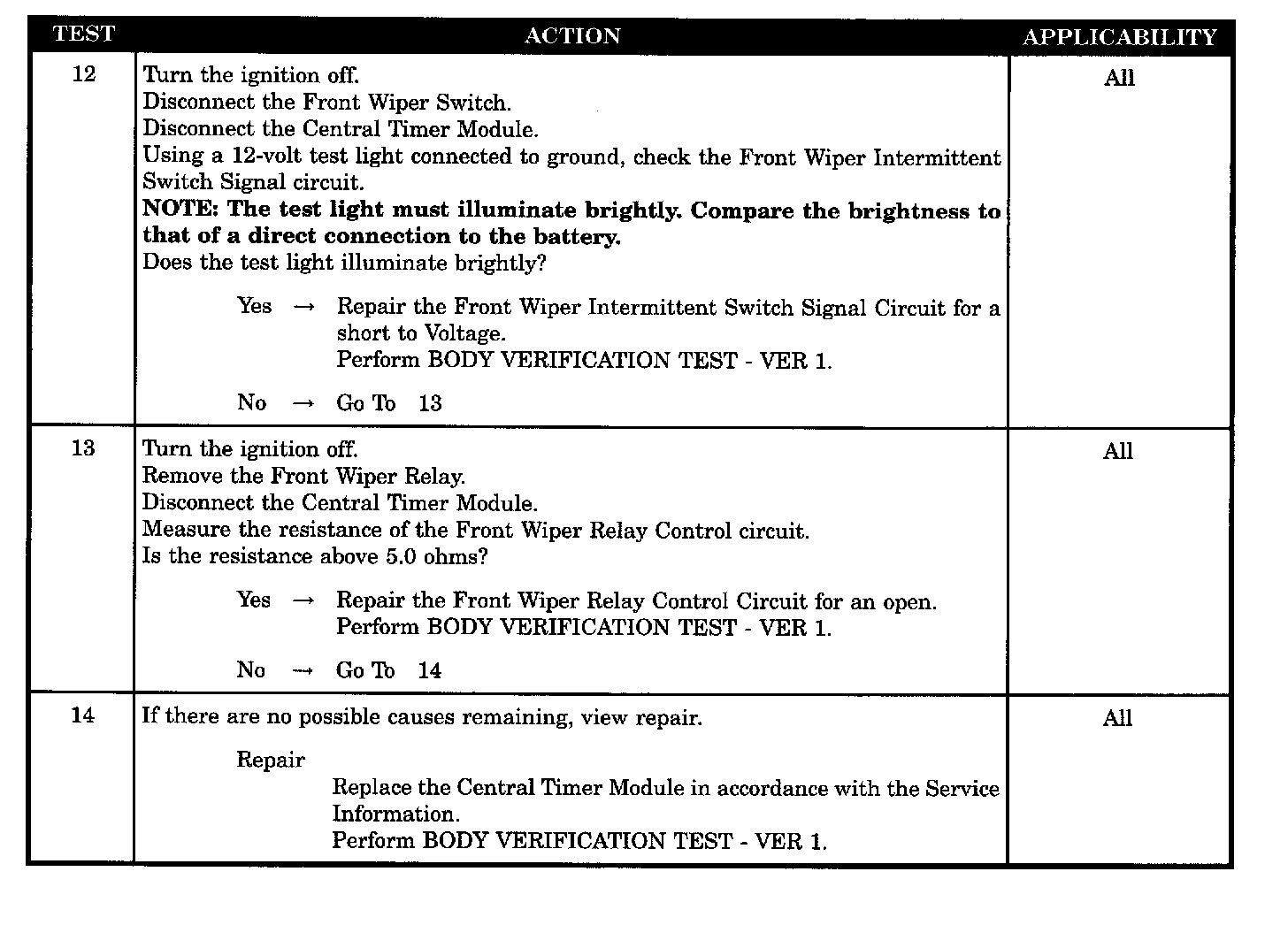

Test 12 - 14:

SYMPTOM
FRONT WIPER INTERMITTENT INOPERITIVE

POSSIBLE CAUSES
- Front wiper intermittent mode sense circuit open
- Front wiper intermittent switch signal circuit open
- Front wiper motor low driver circuit open
- Front wiper relay control circuit open
- Front wiper relay signal circuit open
- Fused ignition switch output circuit-motor
- Fused ignition switch output circuit-relay
- Front wiper intermittent switch signal circuit shorted to ground
- Front wiper intermittent switch signal circuit shorted to voltage
- Front wiper relay
- Front wiper switch-delay
- Front wiper switch-mode
- Front wiper switch-relay signal
- Central timer module
