Audible Warning Device Control Module

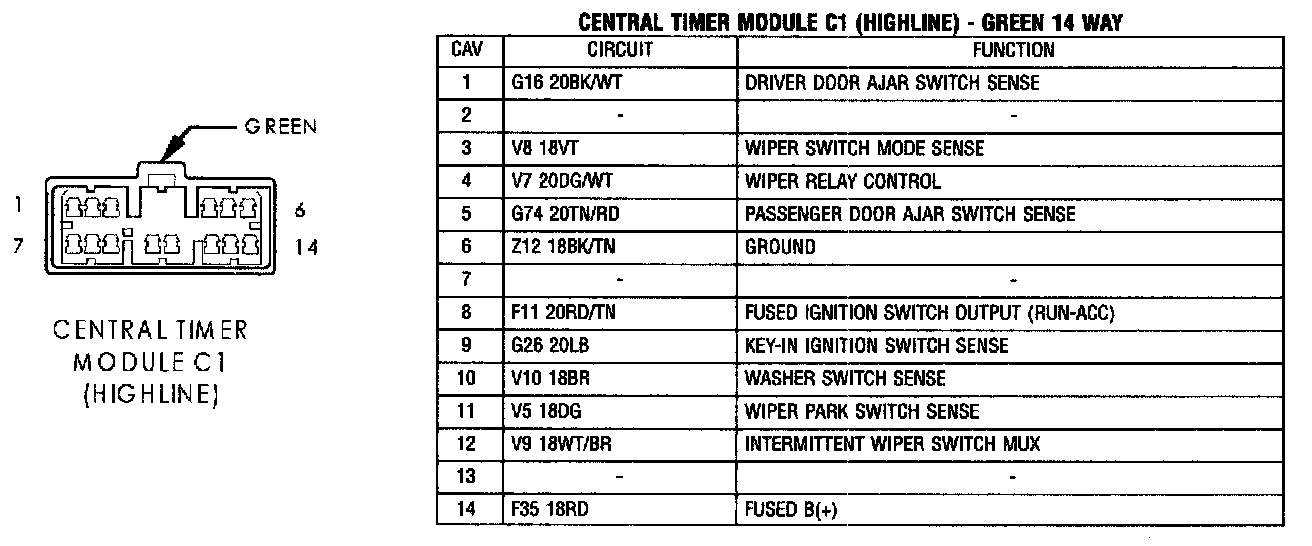

Central Timer Module C1 (Highline):

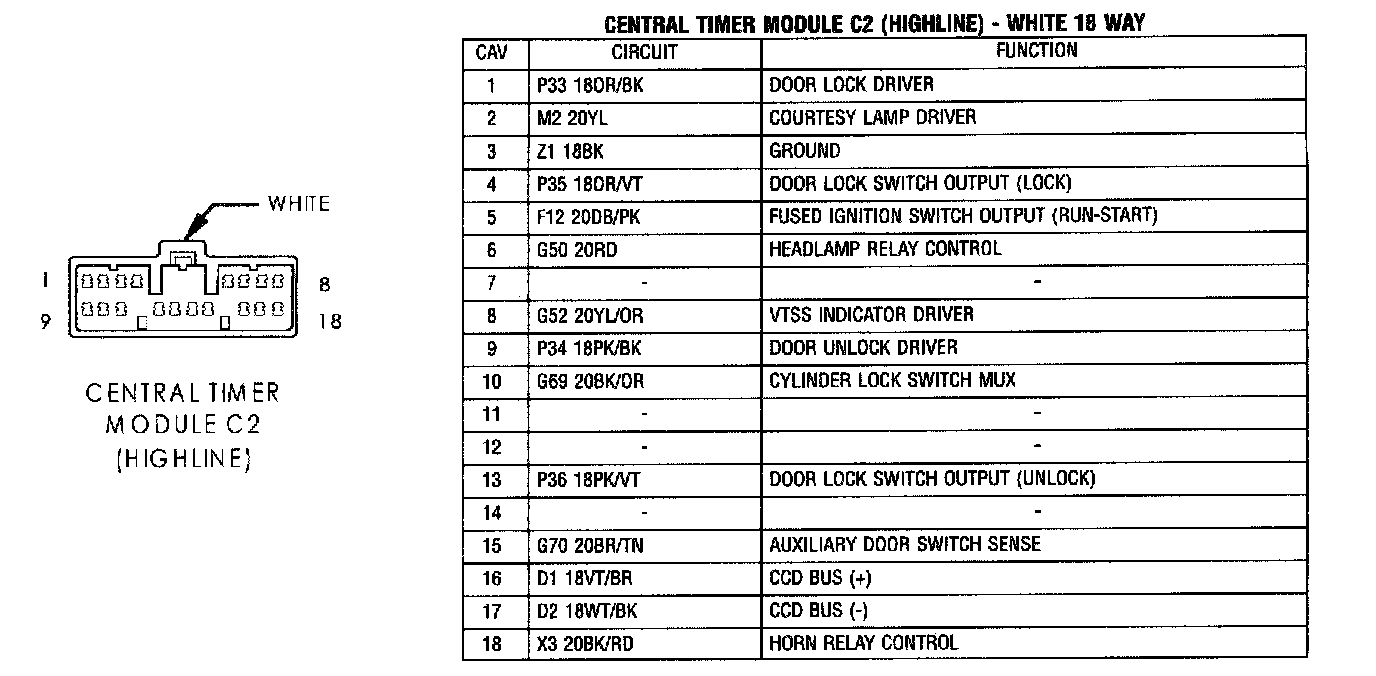

Central Timer Module C2 (Highline):
