Automatic Transmission/Transaxle





GENERAL SPECIFICATIONS





GEAR RATIOS





BAND ADJUSTMENT





BEARING SETTING (END PLAY & TURNING TORQUE)





CLUTCH CLEARANCES





END PLAY





OIL PUMP CLEARANCES

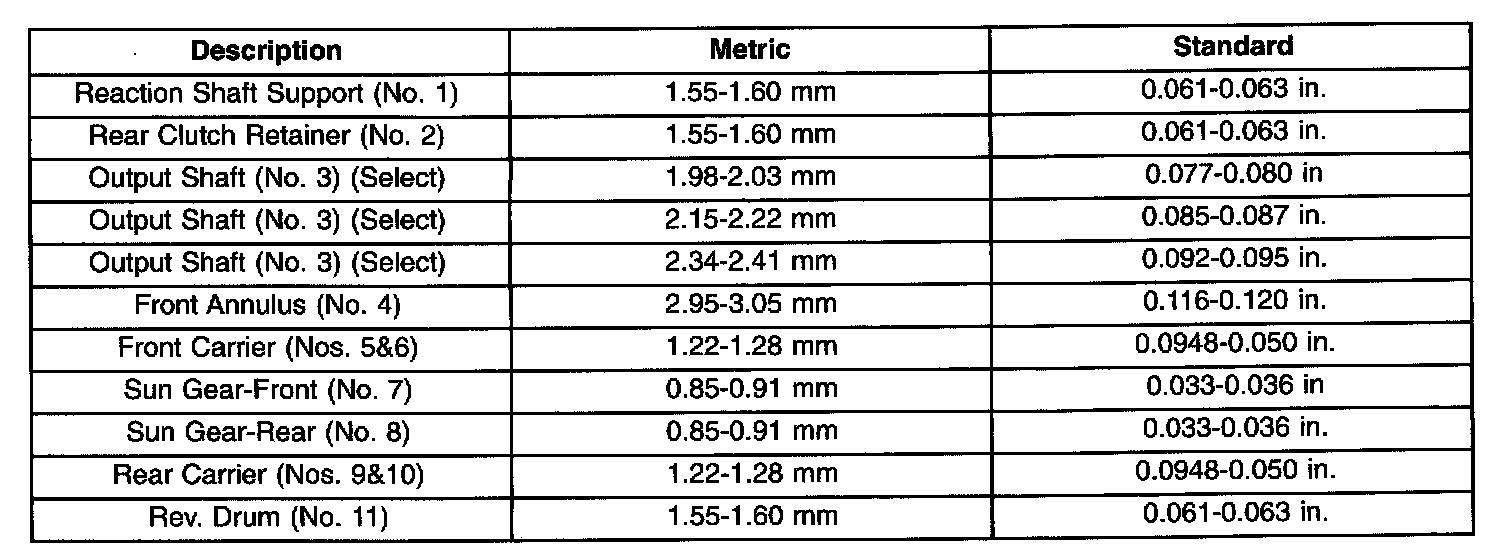

THRUST WASHERS

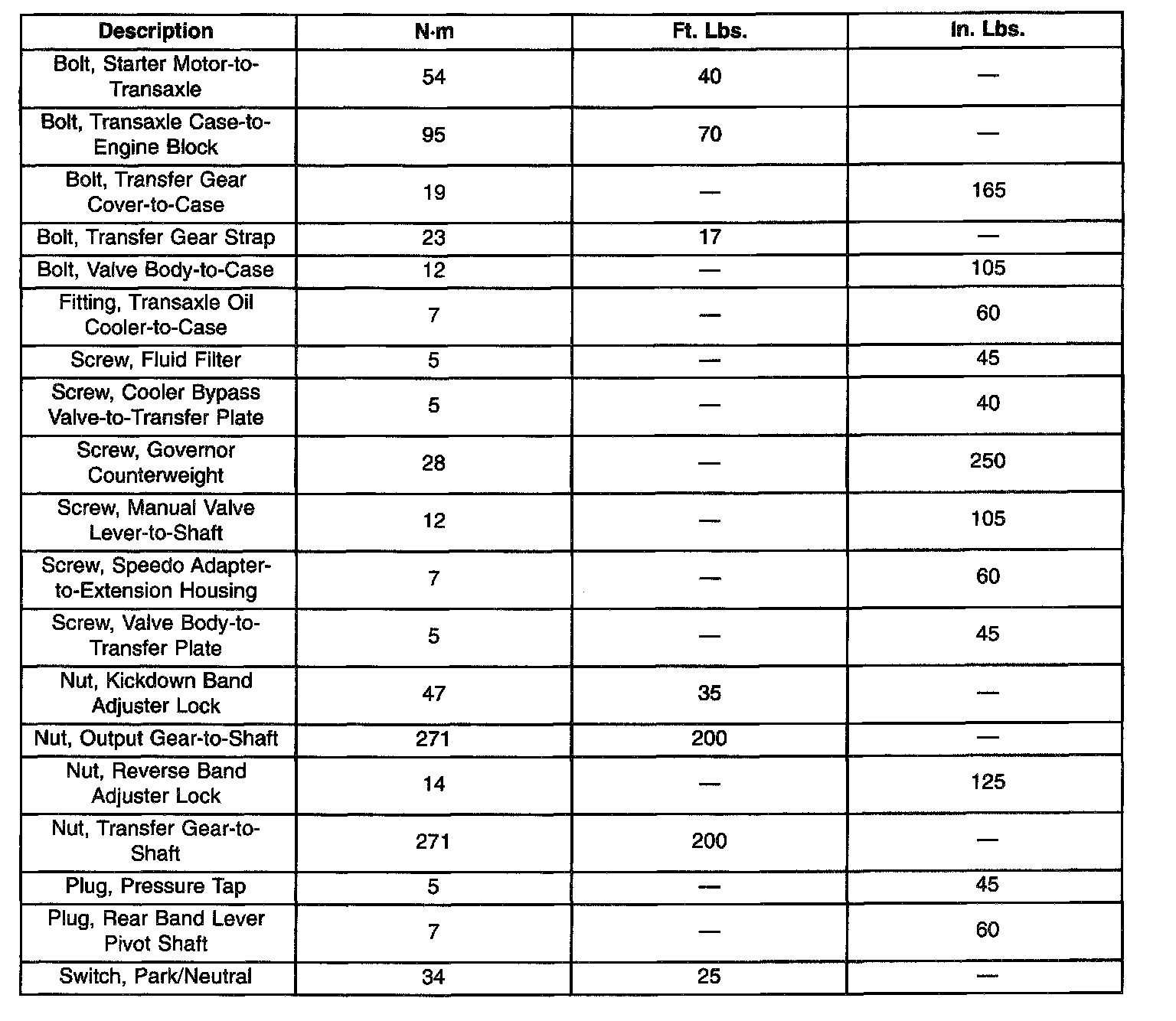

TORQUE SPECIFICATIONS PART 1 of 2

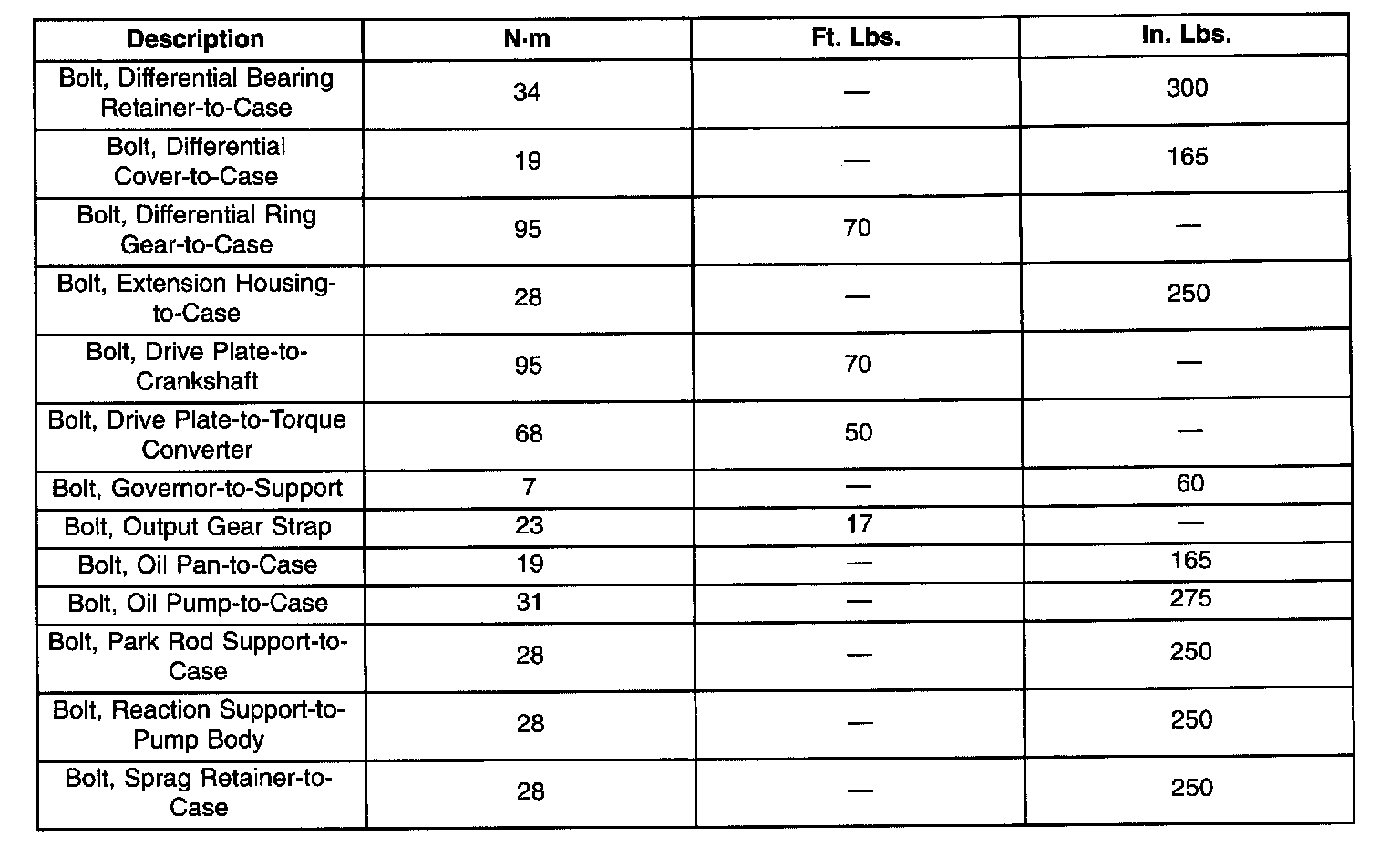

TORQUE SPECIFICATIONS PART 2 of 2
