Cruise Control Servo: Locations

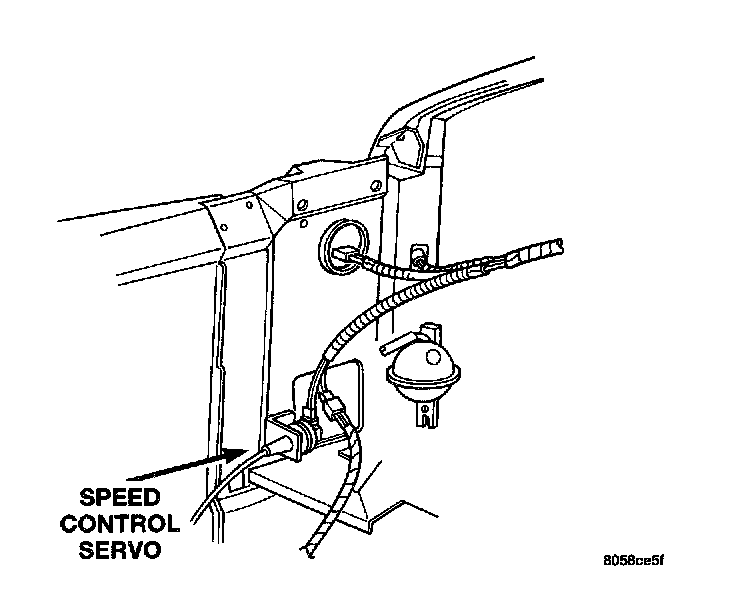

Speed Control Servo Location:

Speed Control Servo Location:

The speed control servo is bolted to the radiator/grille support under the right headlamp.
