Home >> Dodge and Ram >> 2000 >> Durango 4WD V8-4.7L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Diagrams

Control Module: Diagrams

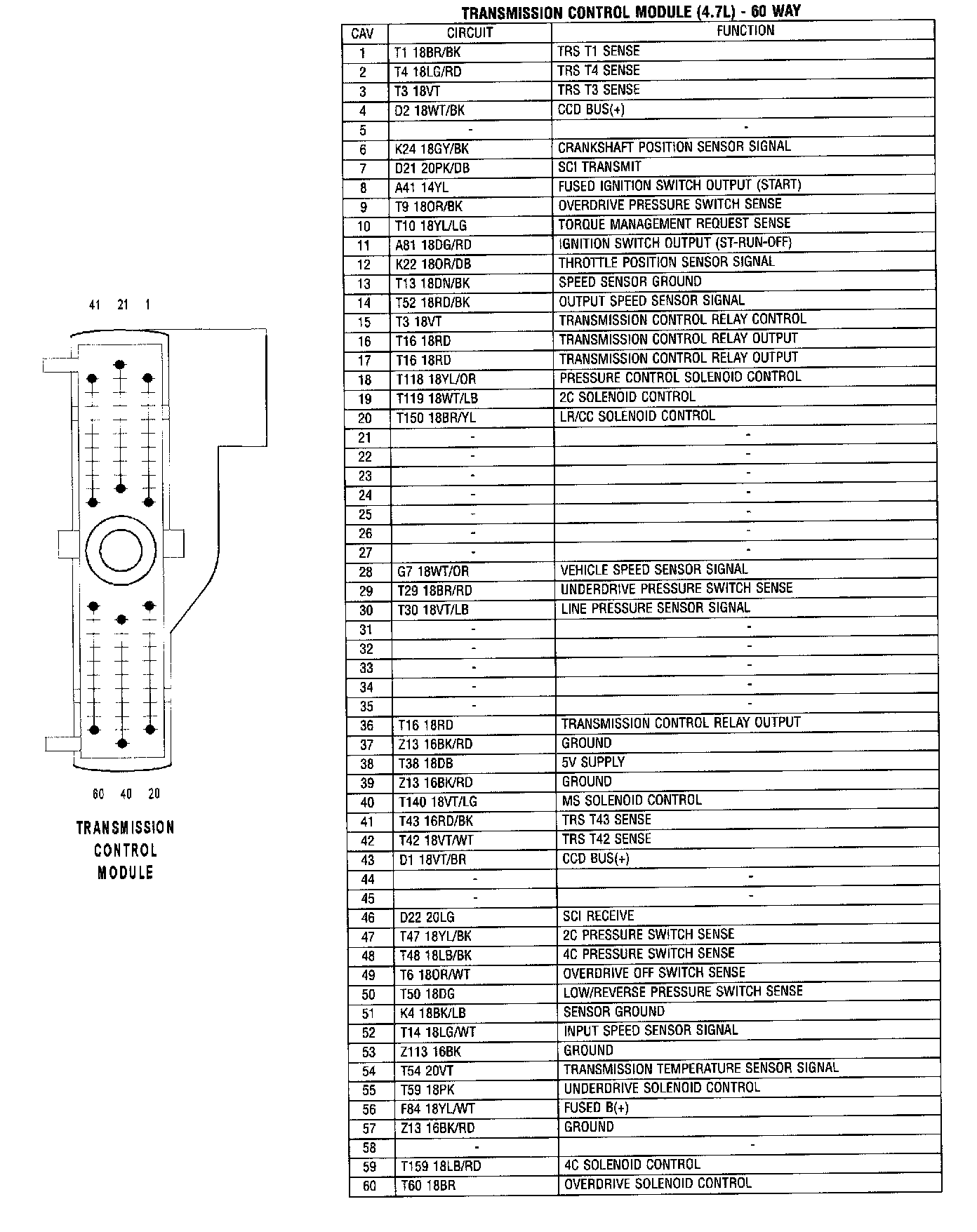

Transmission Switch Module:
