Home >> Dodge and Ram >> 2000 >> Durango 2WD V8-5.2L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Module >> Joint Connector 1

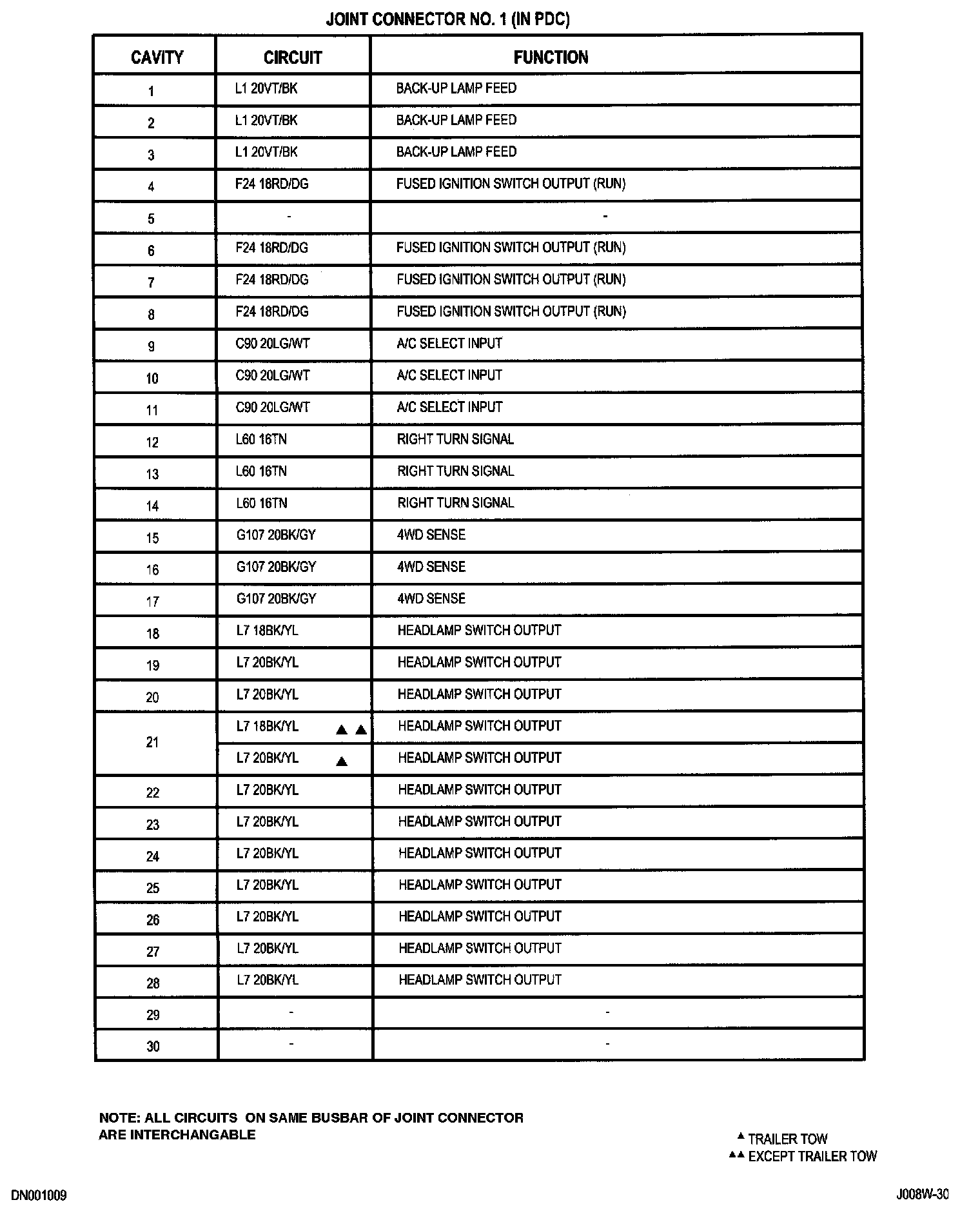

Joint Connector 1

8w-10-9:
