Terminal Resistance and Continuity Check

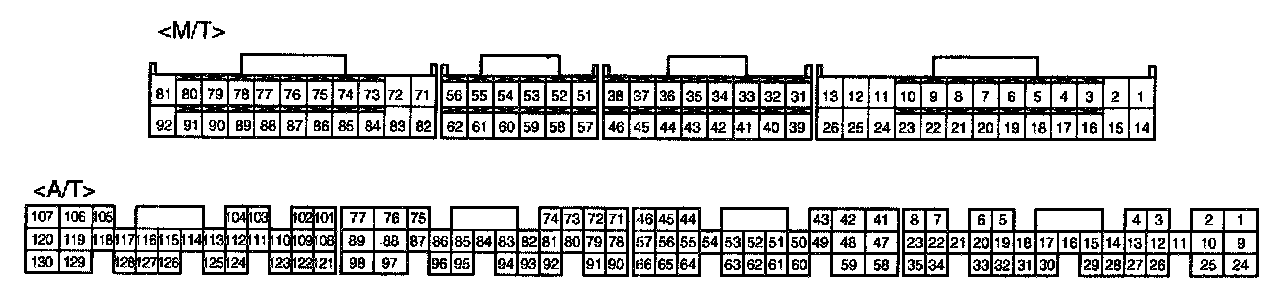

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement:

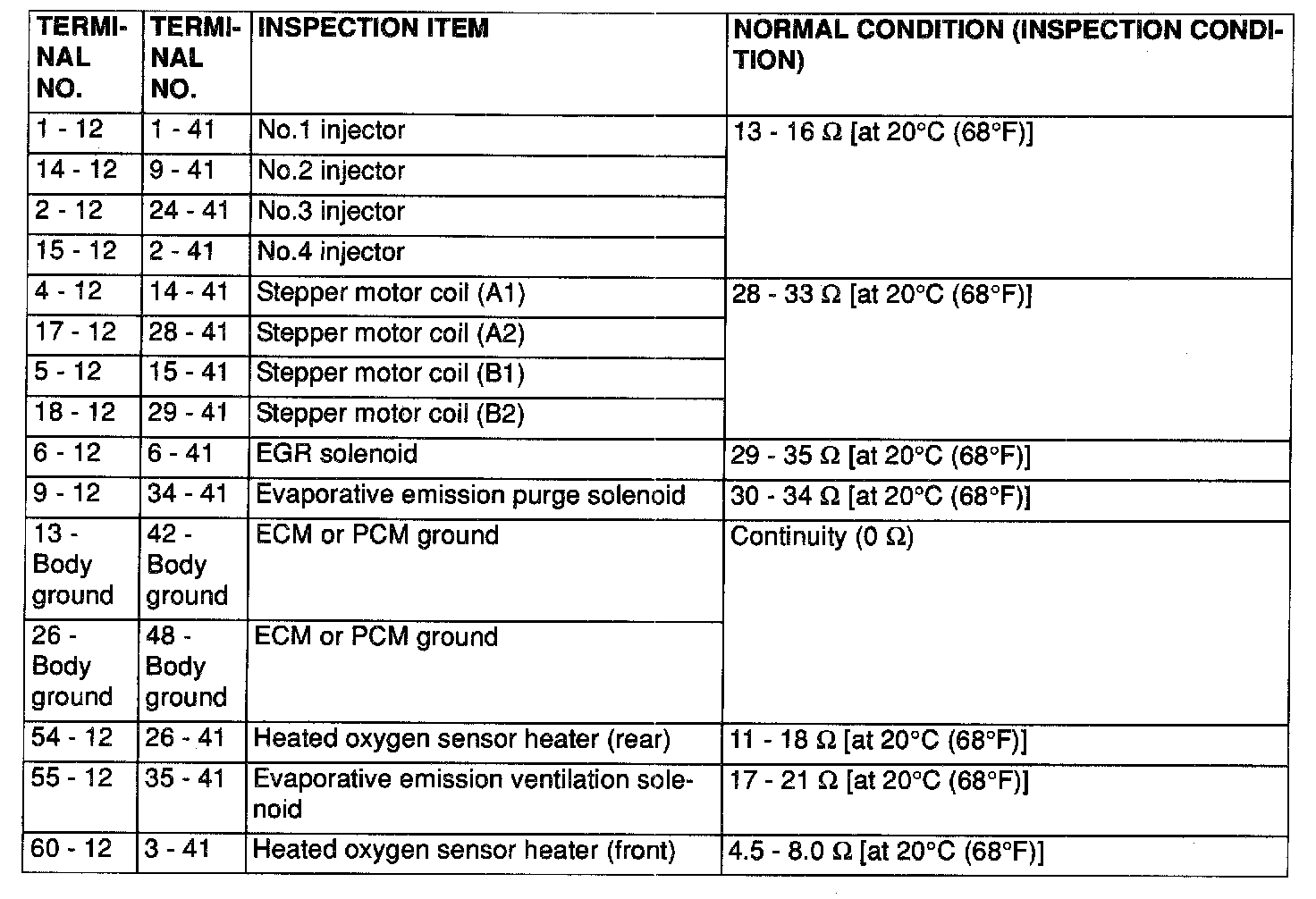

Terminal Resistance And Continuity Check ( Part 1 Of 2 ):

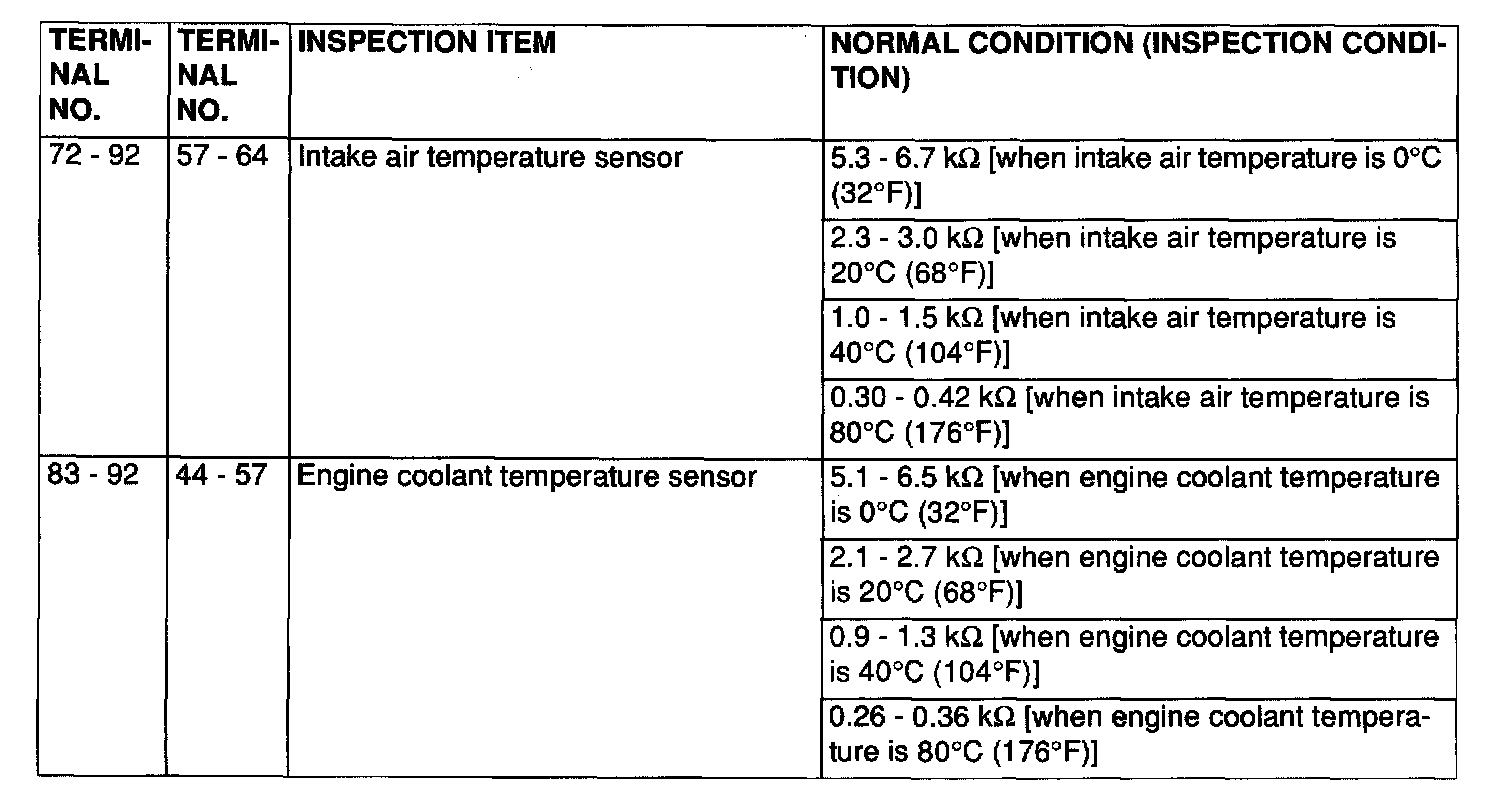

Terminal Resistance And Continuity Check ( Part 2 Of 2 ):
