Home >> Dodge and Ram >> 1996 >> Caravan L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

Engine Control Module

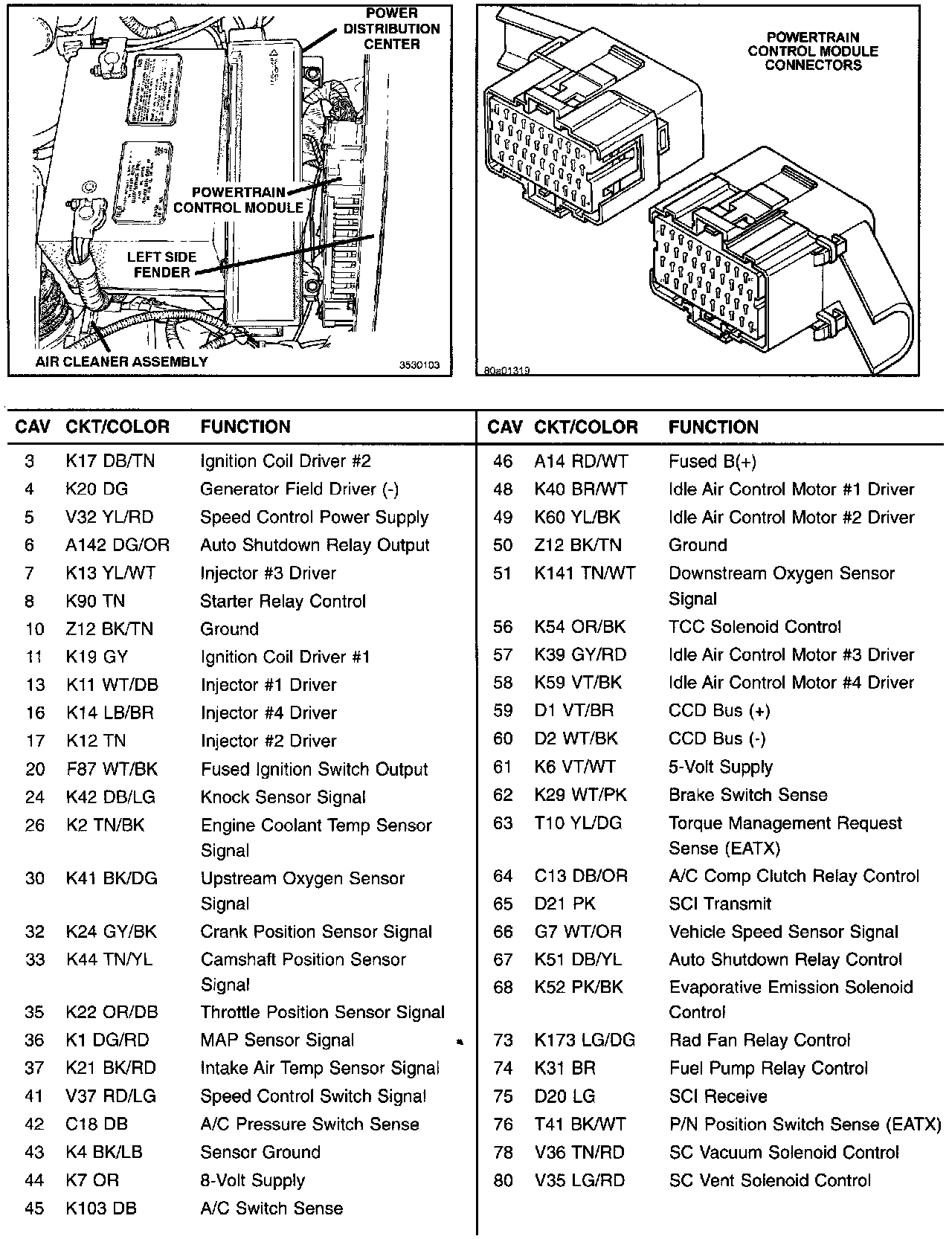

Powertrain Control Module Connector:
