Dodge and Ram
>>
1996
>>
Caravan L4-2.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

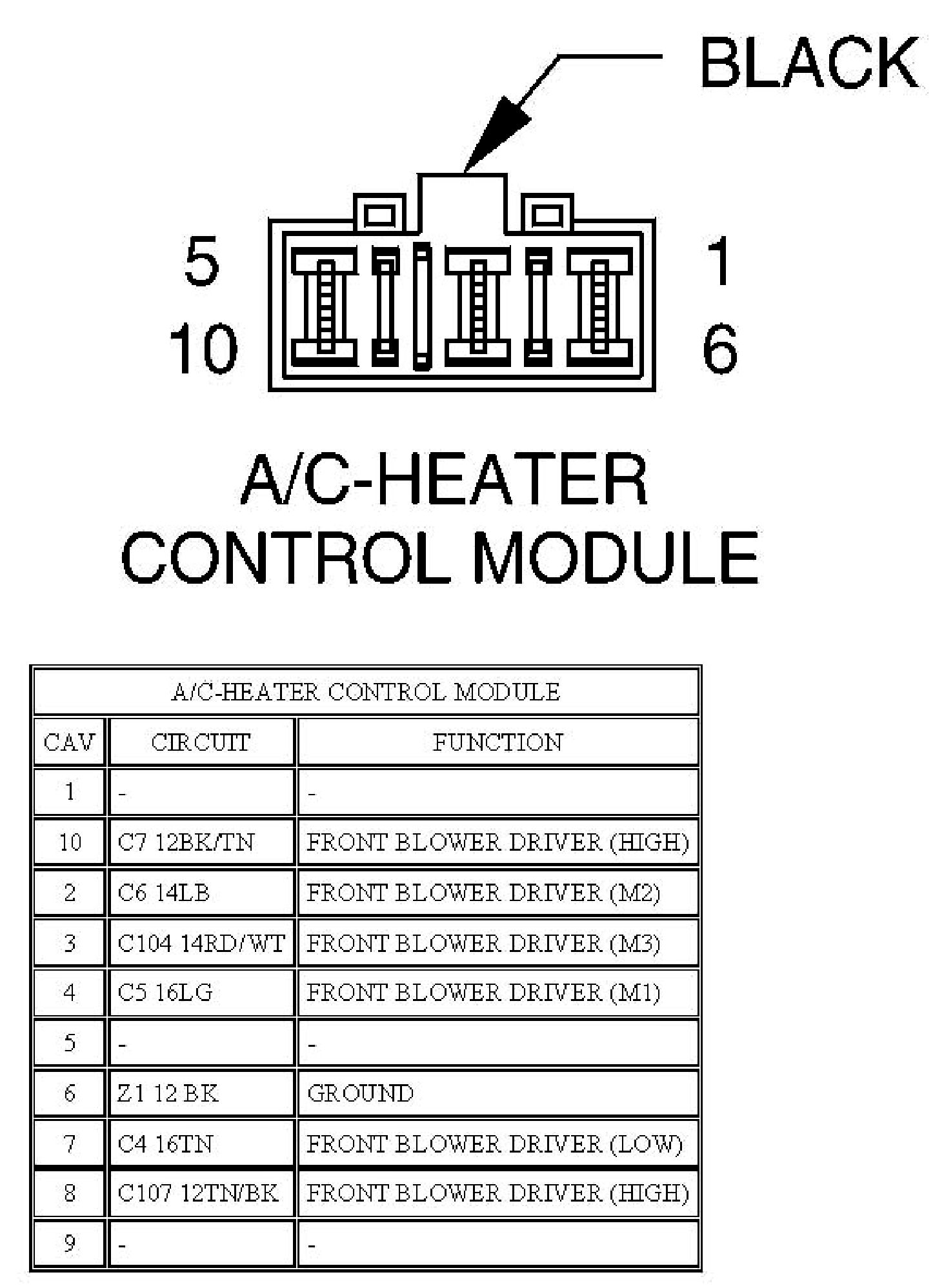

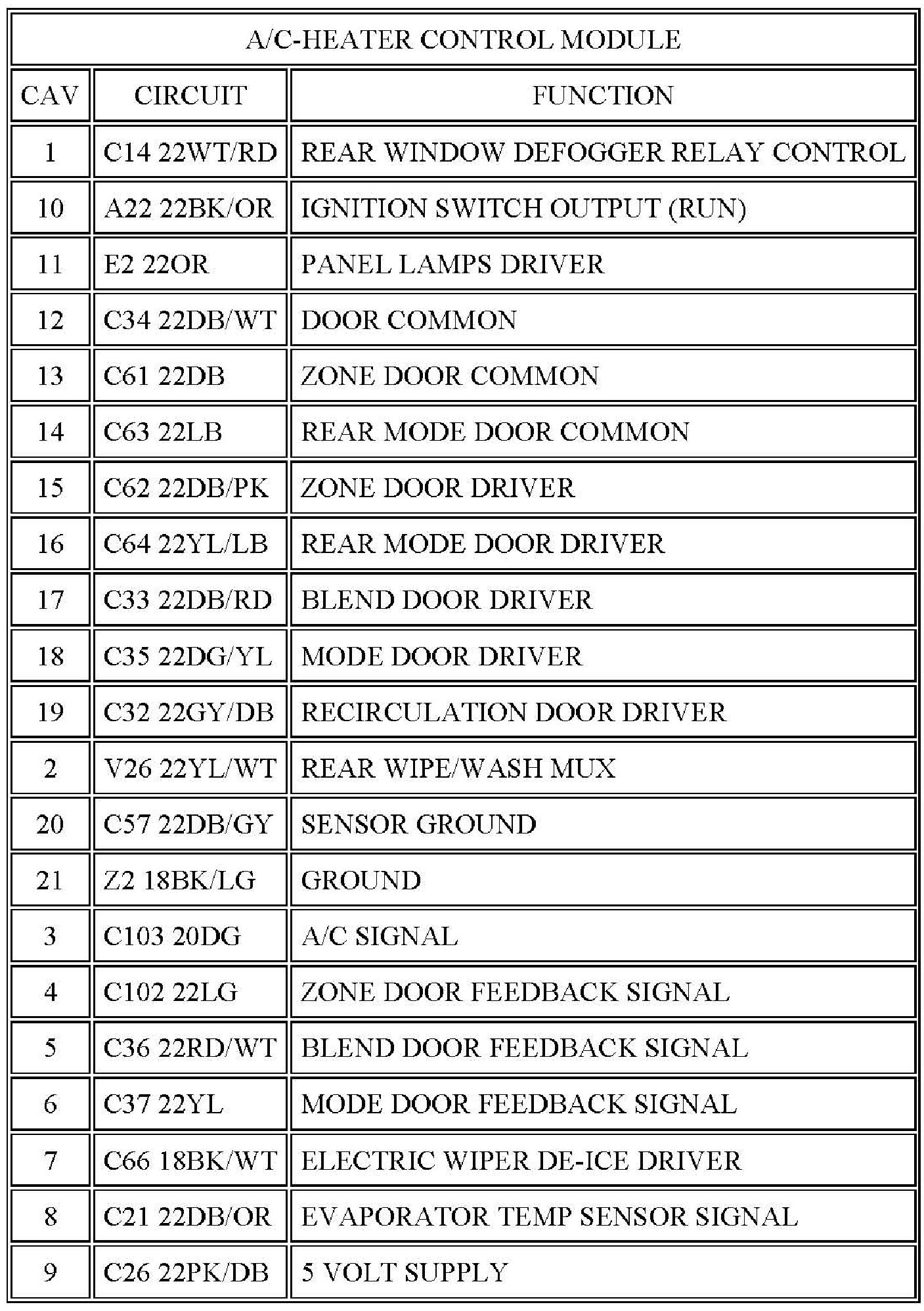

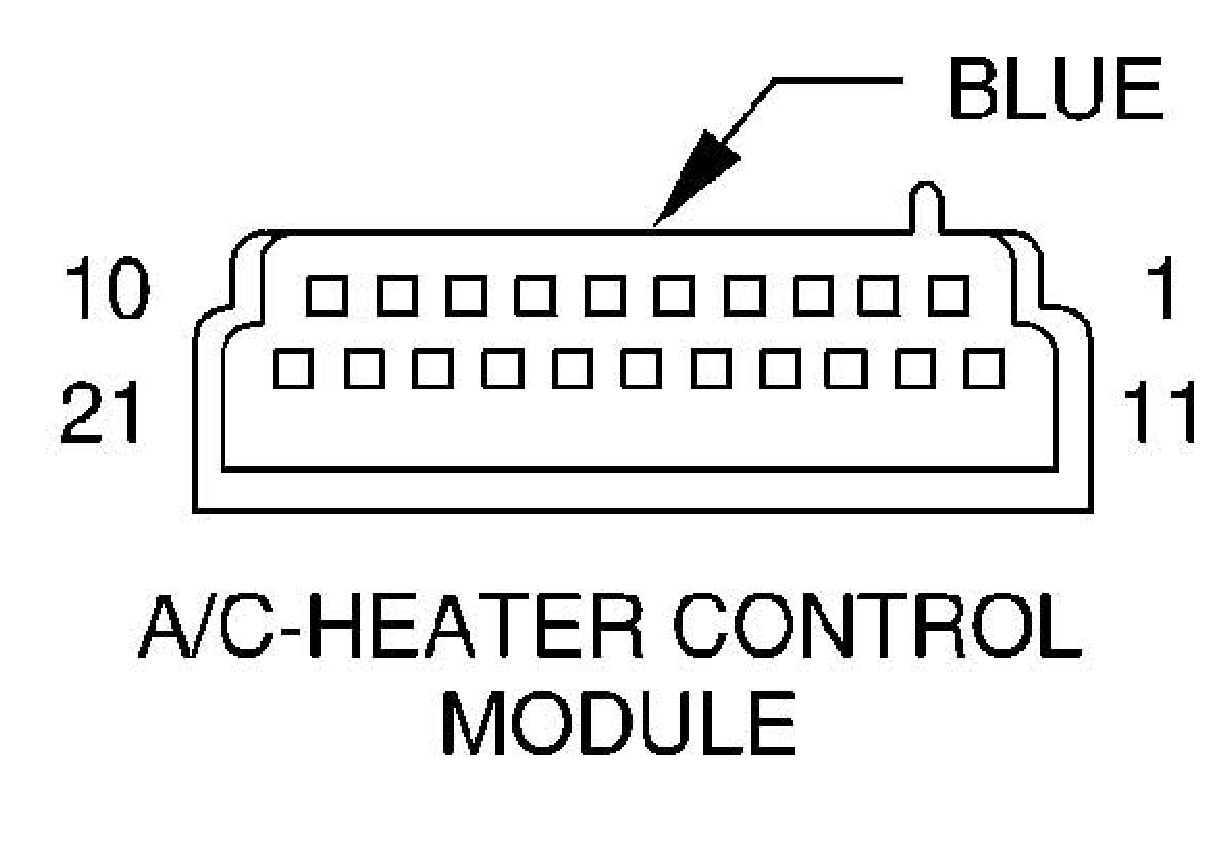

Control Assembly, HVAC
Control Assembly, HVAC
