Home >> Dodge and Ram >> 1984 >> Conquest L4-2555cc 2.6L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> W/O Intercooler

W/O Intercooler

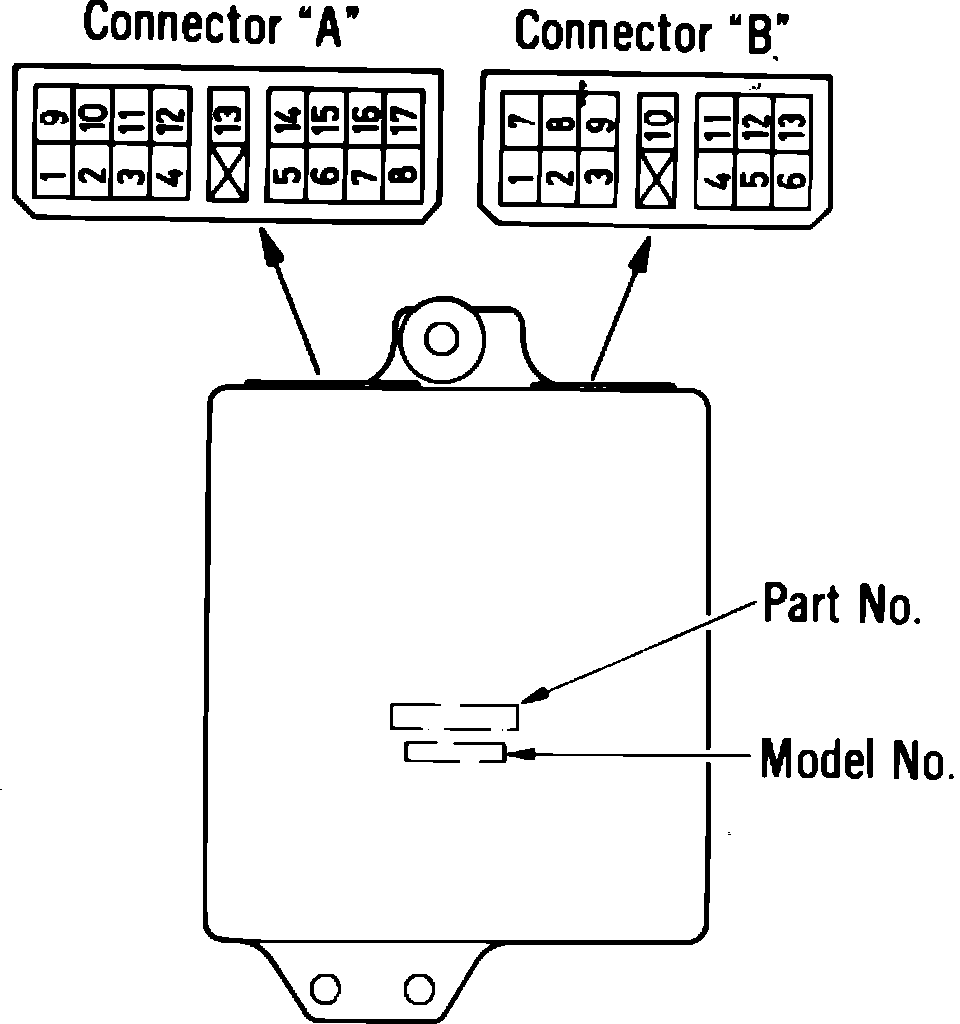

Fig. 17 ECU terminal identification. Exc. Conquest w/intercooler:
