Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

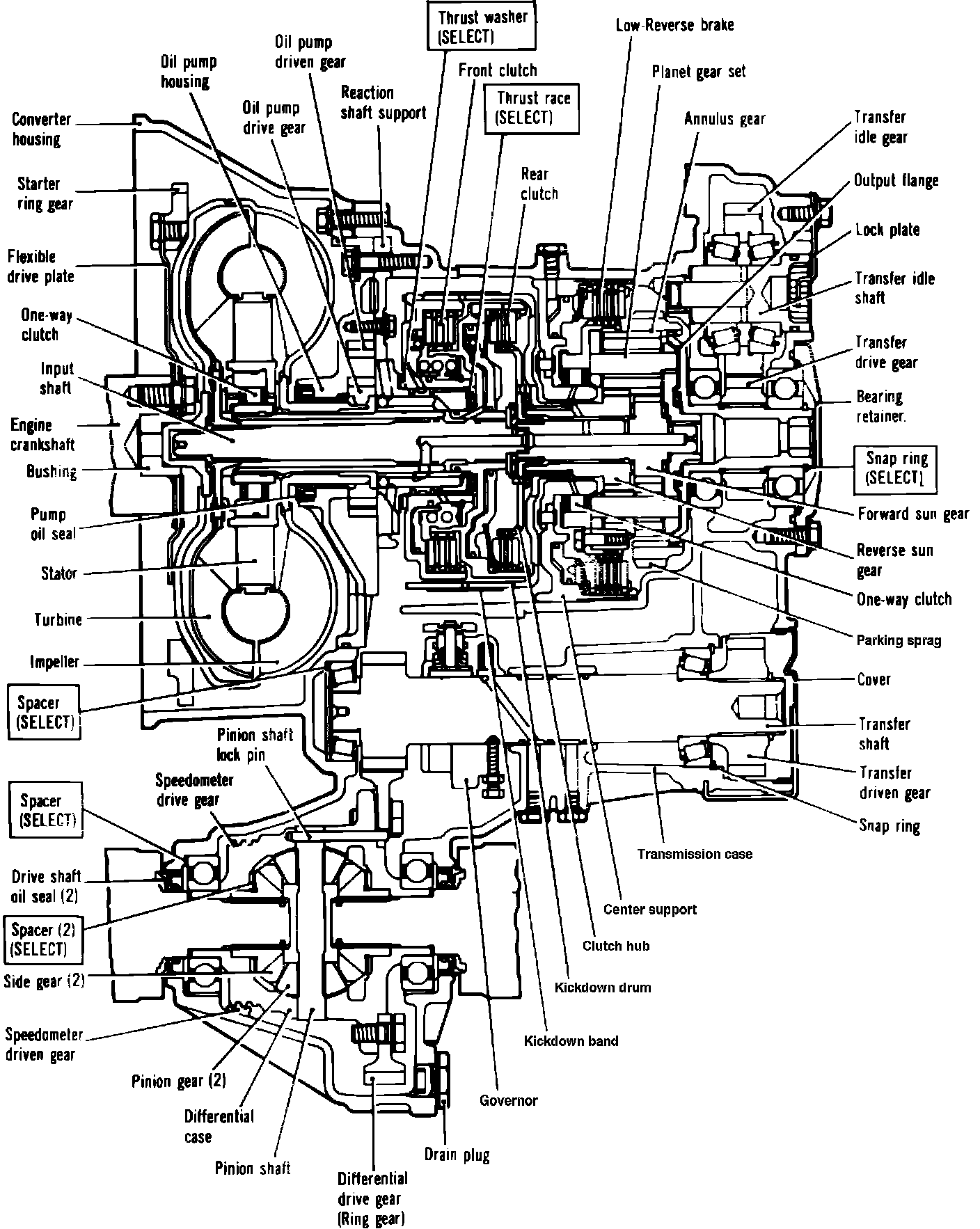

Fig. 18 Sectional view of Mitsubishi KM170 automatic transaxle. 1984 Colt Hatchback:
