Fuse Block

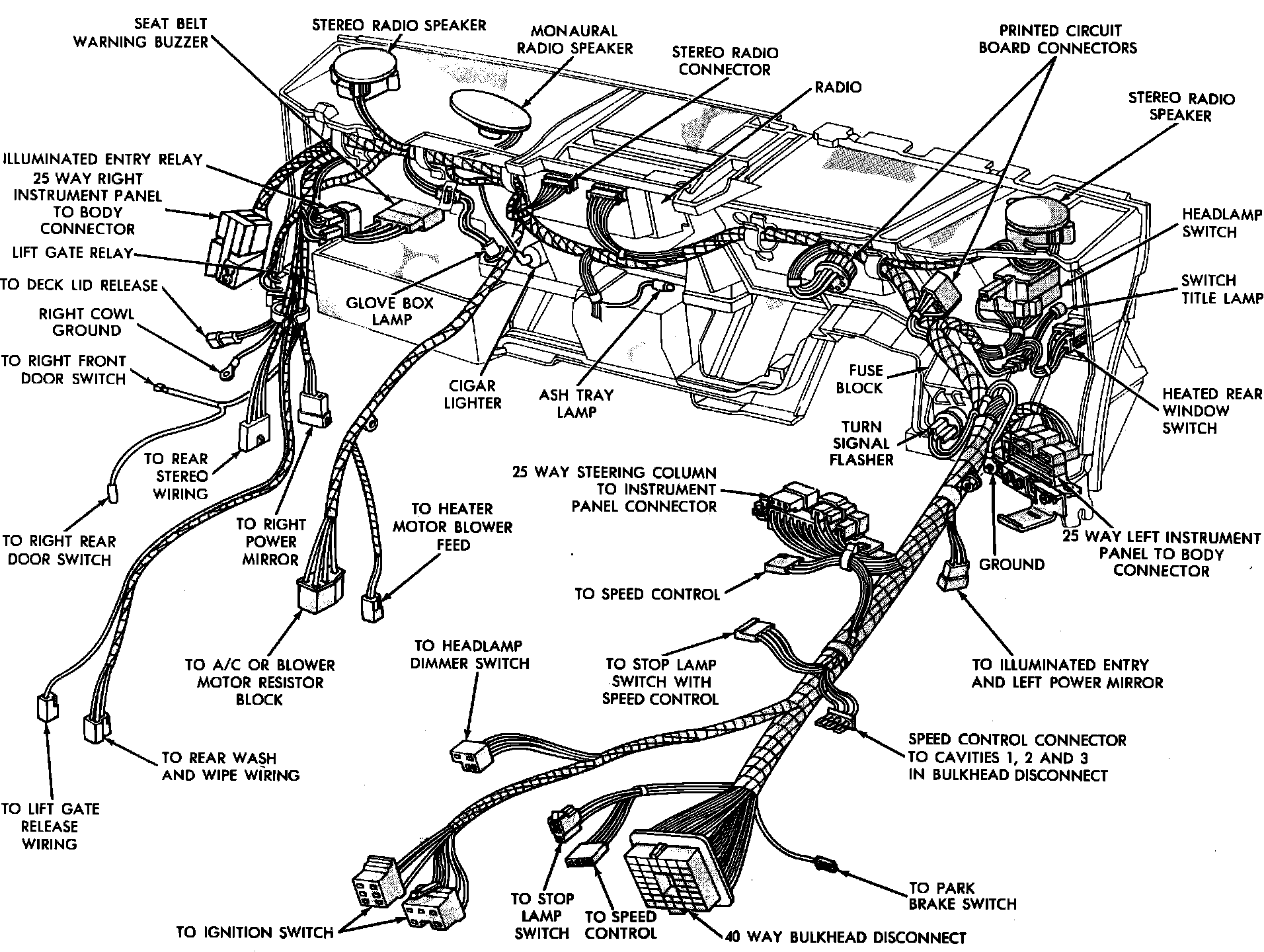

Instrument Panel Electrical Components.:




Behind LH Side Of I/P

Applicable to: 1984

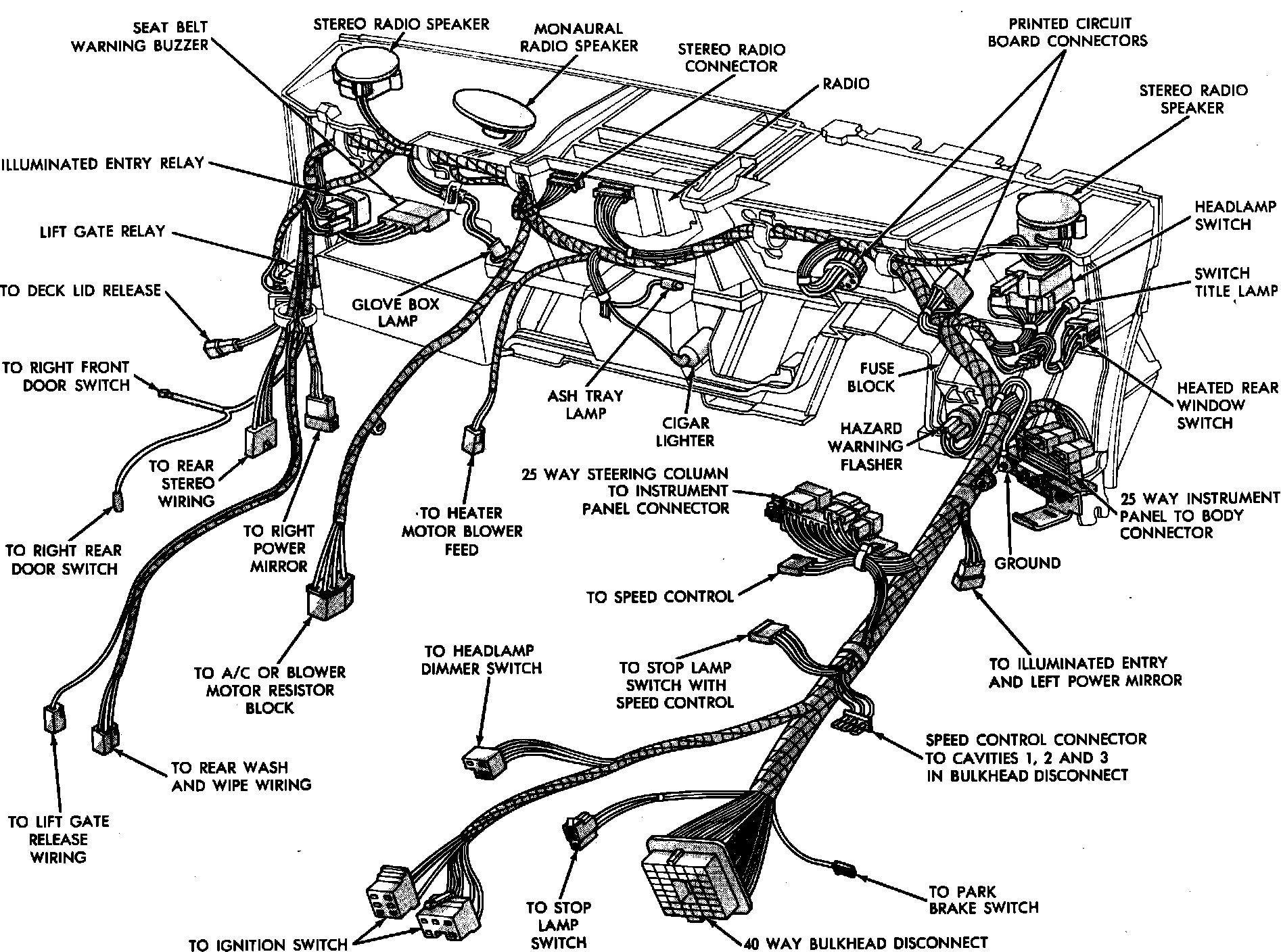

Instrument Panel Electrical Components.:




Behind LH Side Of I/P

Applicable to: 1985
