Engine Controls - Self-Diagnostics
>>
Diagnostic Trouble Codes
>>
DTC P0464: Fuel Level Rationality
DTC P0464: Fuel Level Rationality

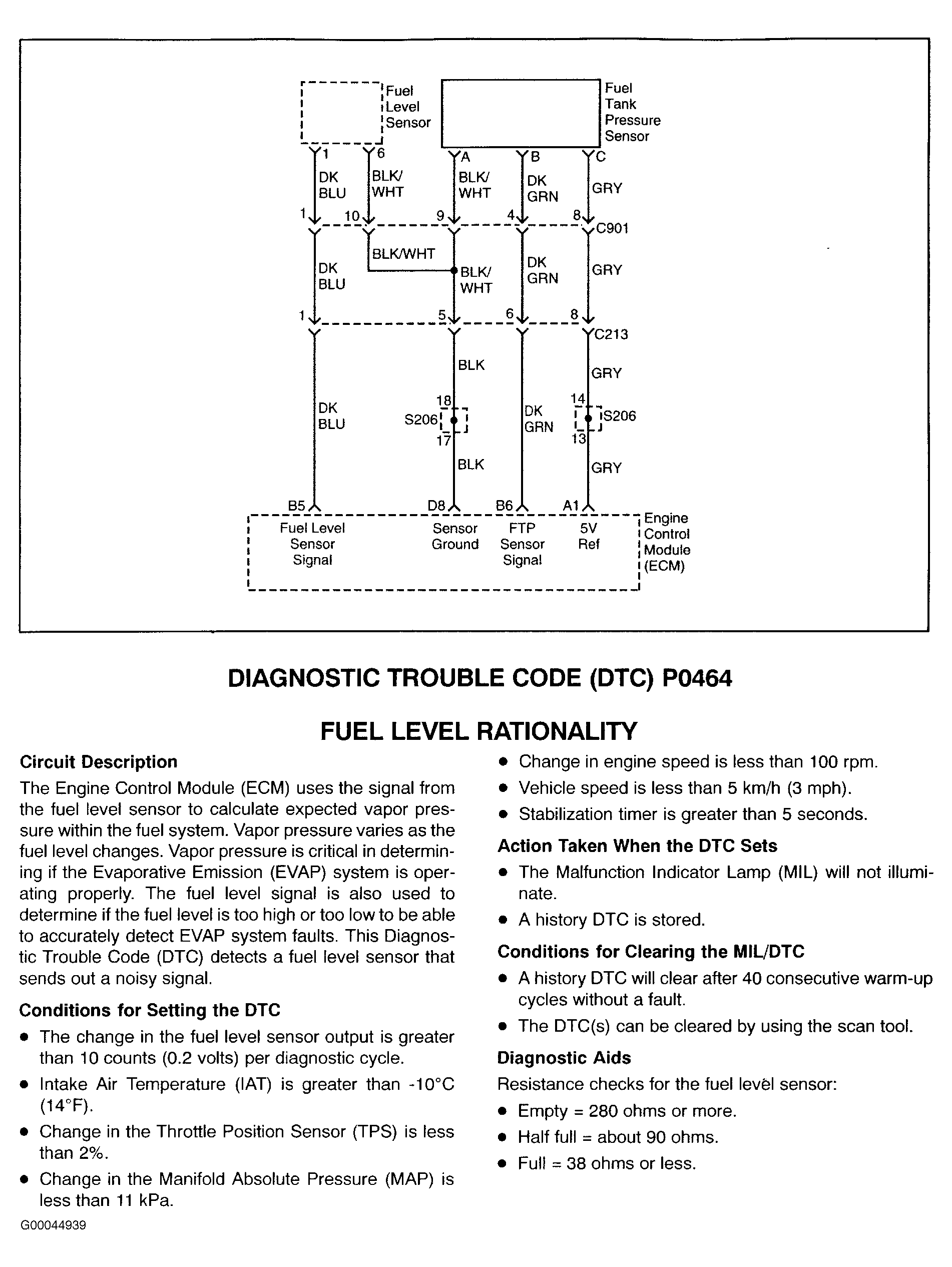

Fig 1: DTC P0464: Fuel Level Rationality (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

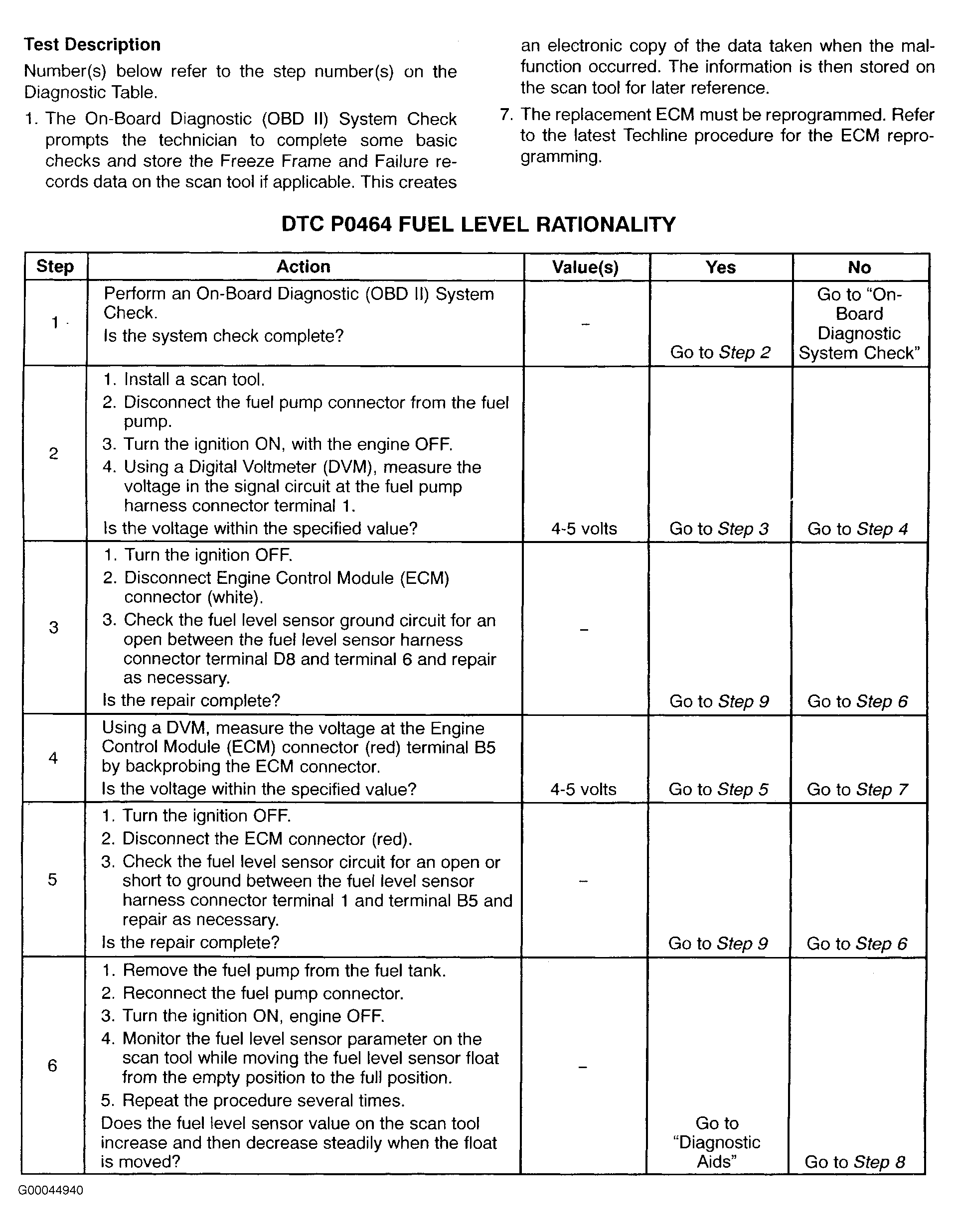

Fig 2: DTC P0464: Fuel Level Rationality (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

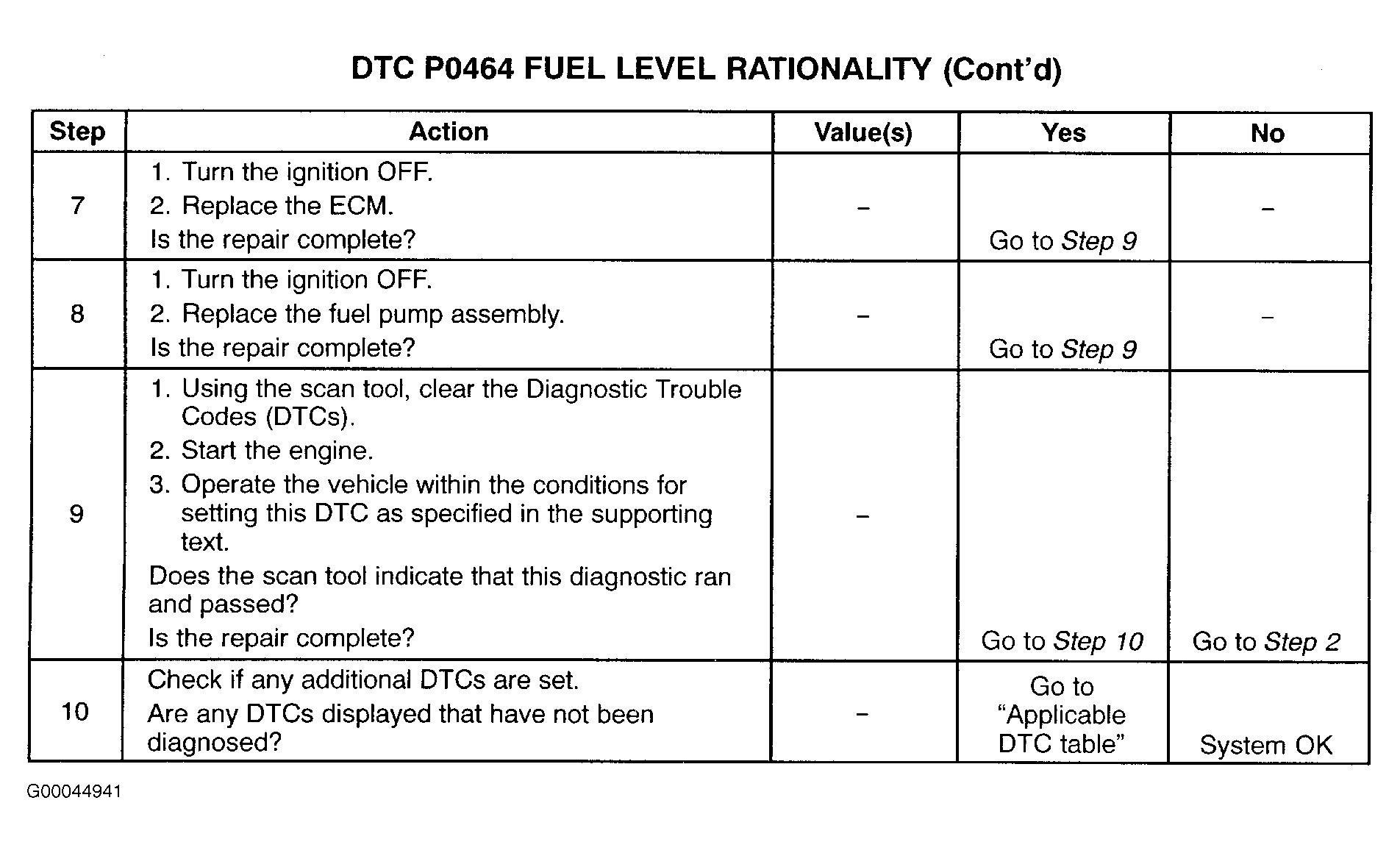

Fig 3: DTC P0464: Fuel Level Rationality (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
