Ignition Capacitor - Installation

5.7L / 6.4L

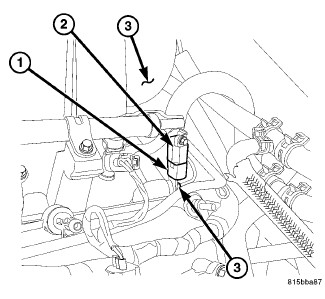

1. Position the ignition capacitor (2) at the left rear corner of intake manifold (3).
2. Install the retaining bolt.
3. Install the electrical connector (1).
4. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
