Front

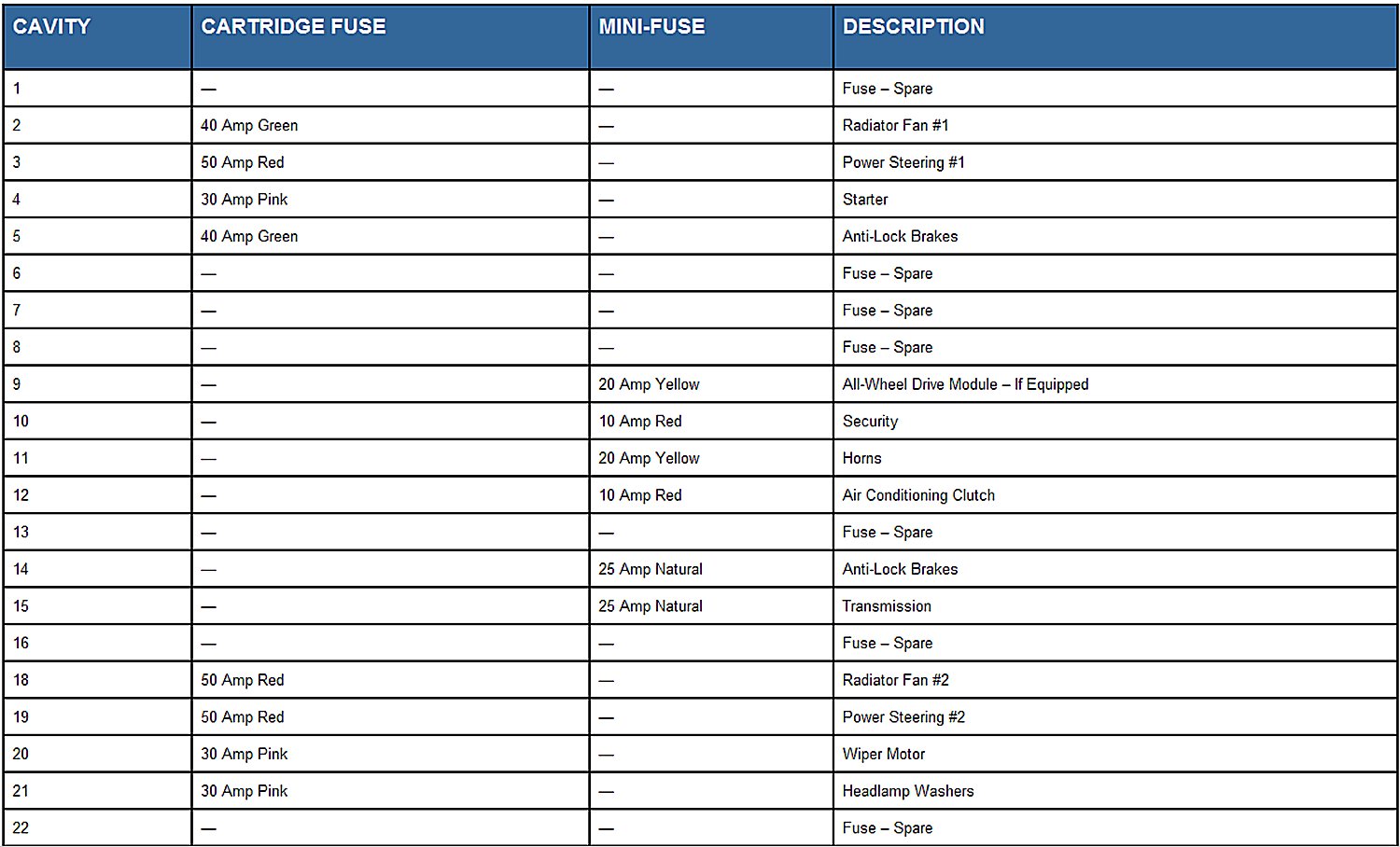

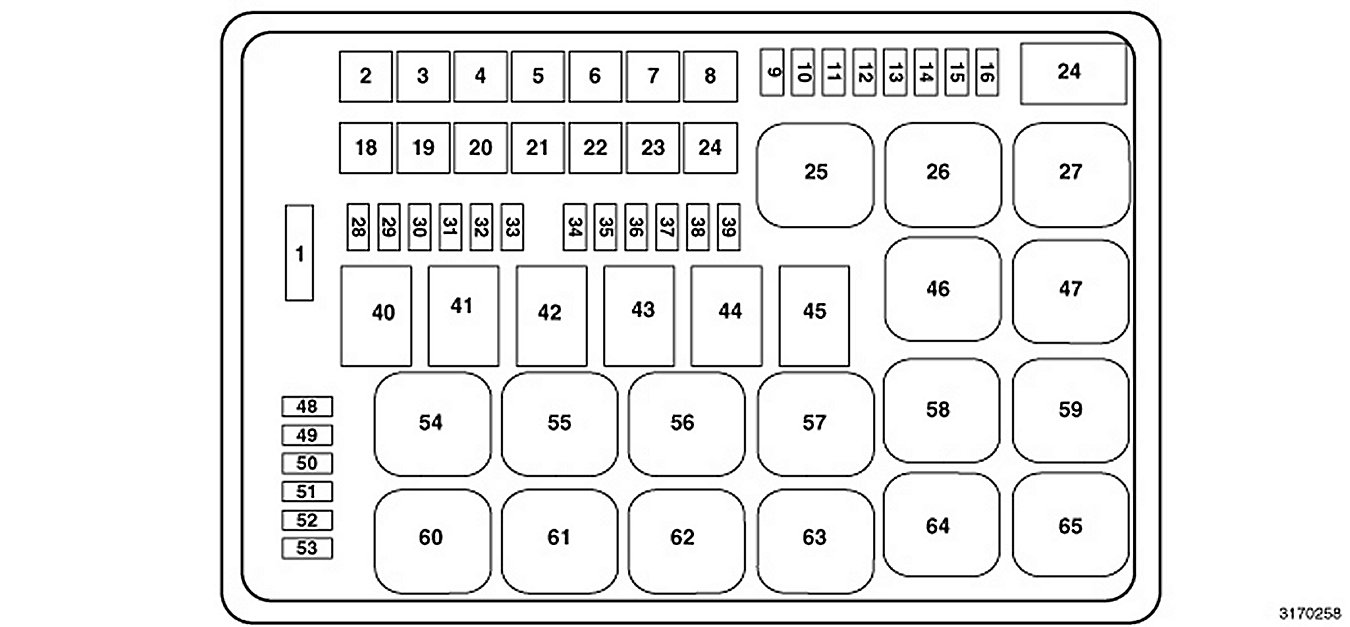

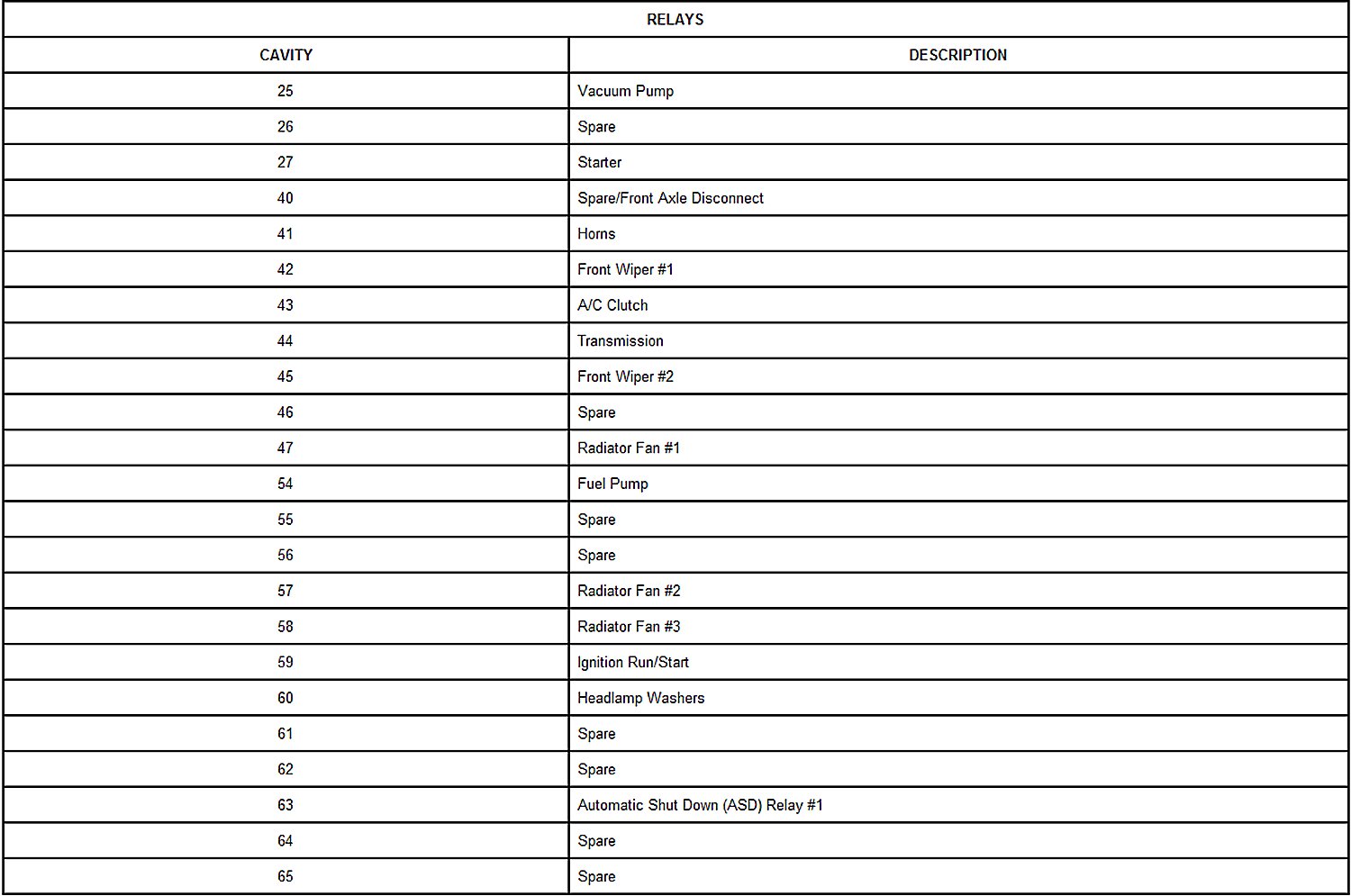

Front Power Distribution Center Fuses

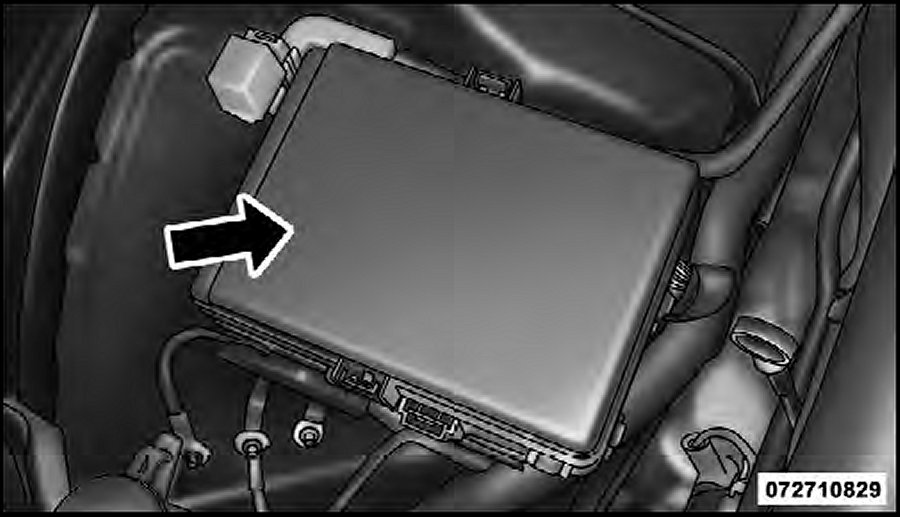

The Integrated Power Module (IPM) is located in the engine compartment.
