Oil Pressure Sensor - Installation

INSTALLATION

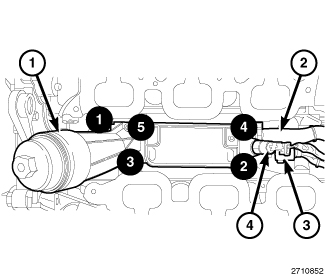

1. Install the oil pressure sensor (2) and tighten to 20 Nm (177 in. lbs.).





2. Connect the oil pressure sensor electrical connector (3).
3. Install the upper and lower intake manifolds and air cleaner housing assembly Intake Manifold - Installation
4. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
