Fuel Tank Pressure Sensor - Installation

INSTALLATION

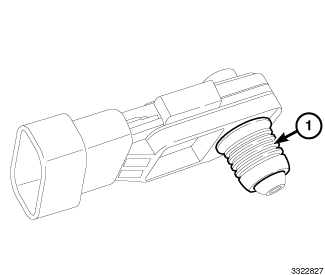

1. The fuel tank pressure sensor seal (1) can be reused if not damaged.

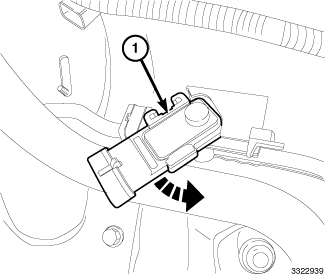

2. Install the fuel tank pressure sensor (1) into the fuel tank vent tube and rotate into position.

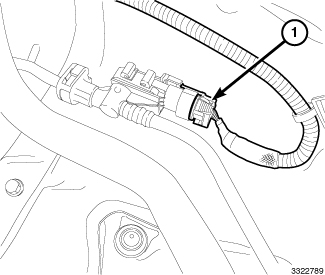

3. Connect the fuel tank pressure sensor electrical connector (1).
4. Install the left rear wheel splash shield Splash Shield - Installation.
5. Lower the vehicle.
6. Install the fuel filler cap.
7. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
