Camshaft Position Sensor: Description and Operation

2.4L






NOTE: The graphic represents the relationship between camshaft and crankshaft sensors edges with camshafts in "lock pin" position (cam shafts are not "phasing"). This is normally seen during idle.

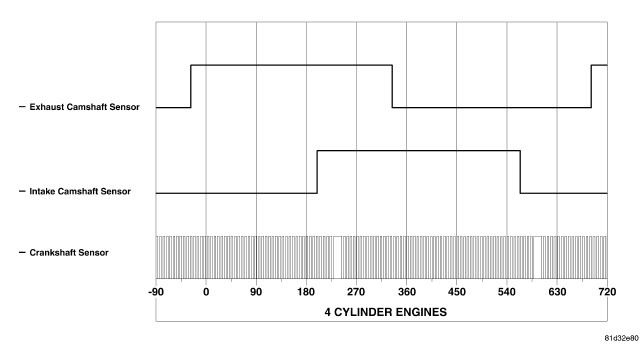

Depiction of good camshaft and crankshaft square wave signals for 4 cylinder engines.

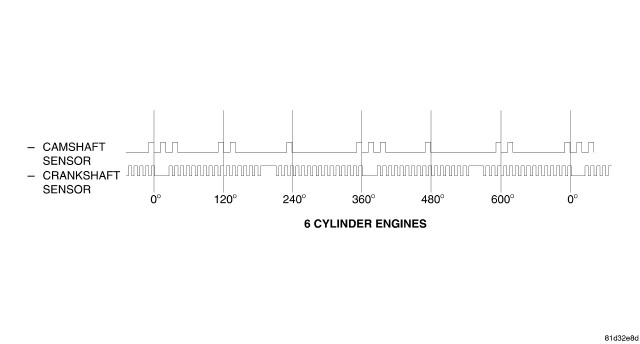

Depiction of good camshaft and crankshaft square wave signals for 6 cylinder engines.
