BOTTLE, Coolant Recovery: Installation: Installation

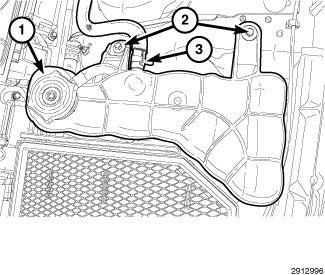

Fig 1: Coolant Recovery Container Pressure Cap, Tube & Screws

Courtesy of CHRYSLER LLC

1. Install the lower supply line to the coolant recovery container (3)
2. Position the coolant recovery container.
3. Install mounting screws (2). Tighten to 10 N.m (89 in. lbs.).
4. Install the coolant recovery return tube (3).
5. Fill cooling system. Refer to Standard Procedure .
6. Install coolant recovery container pressure cap (1).
