Home
>>
Chrysler
>>
2010
>>
300 V6-2.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Power Distribution Center
>>
Front
Front

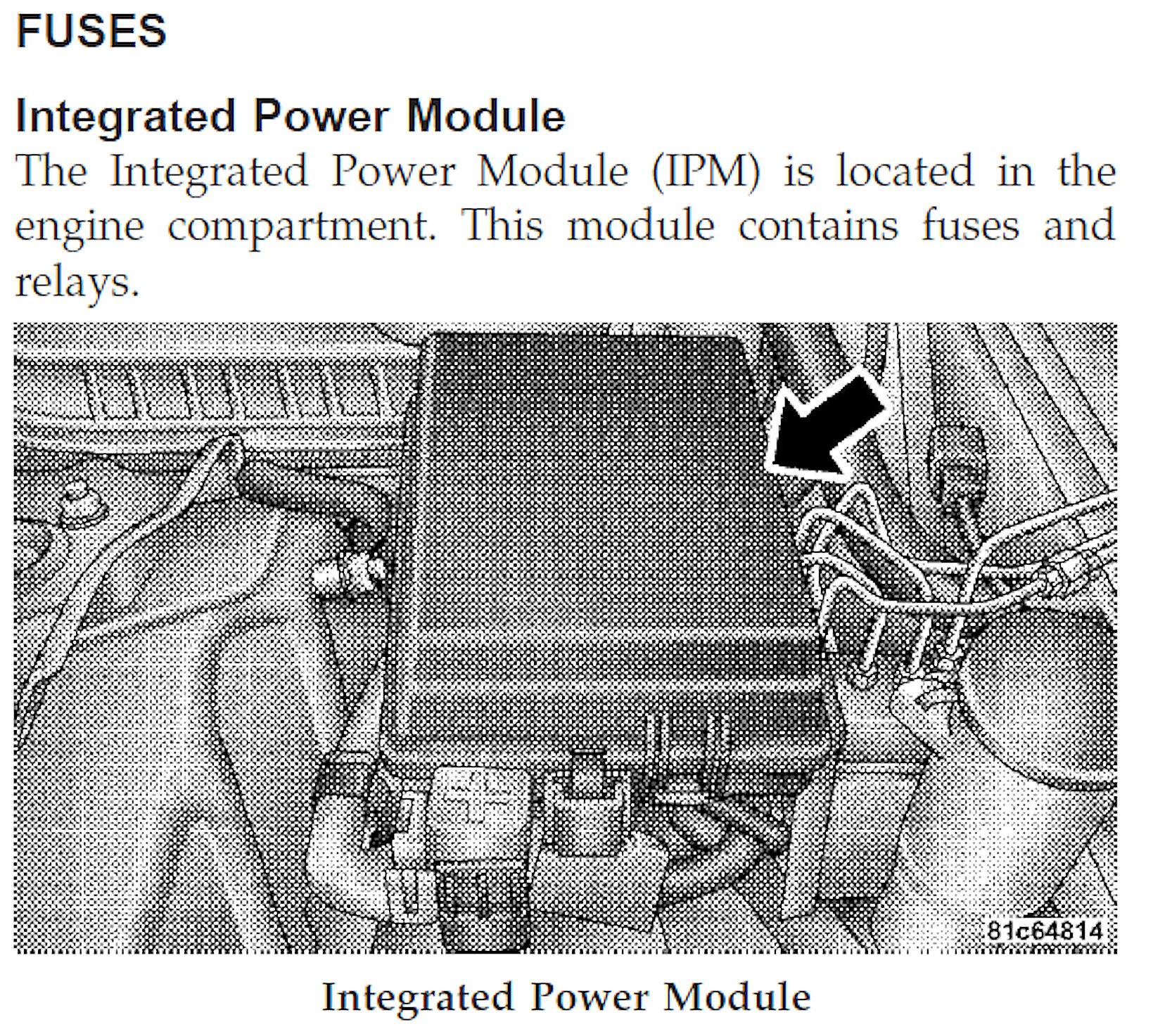

Location:

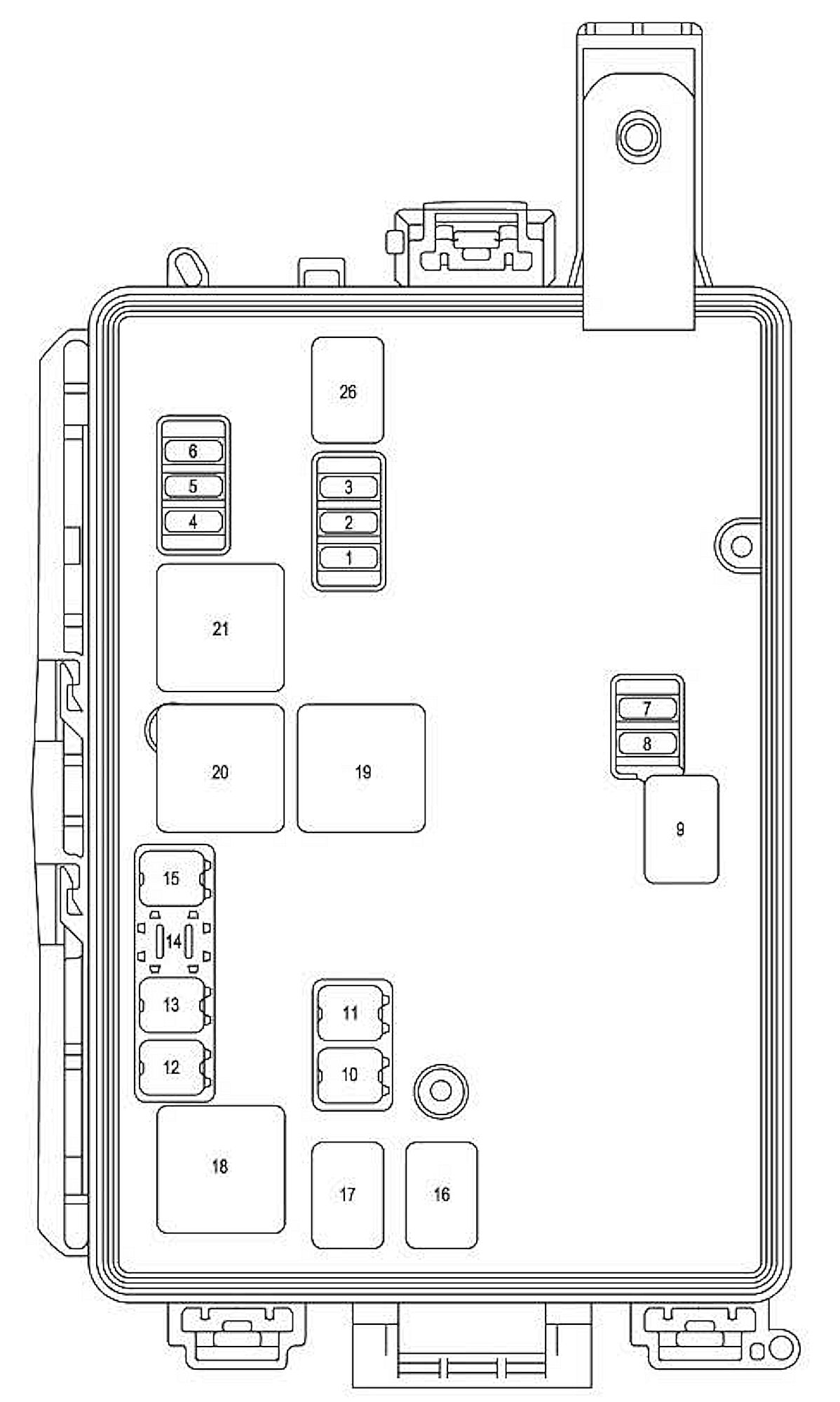

Integrated Power Module:

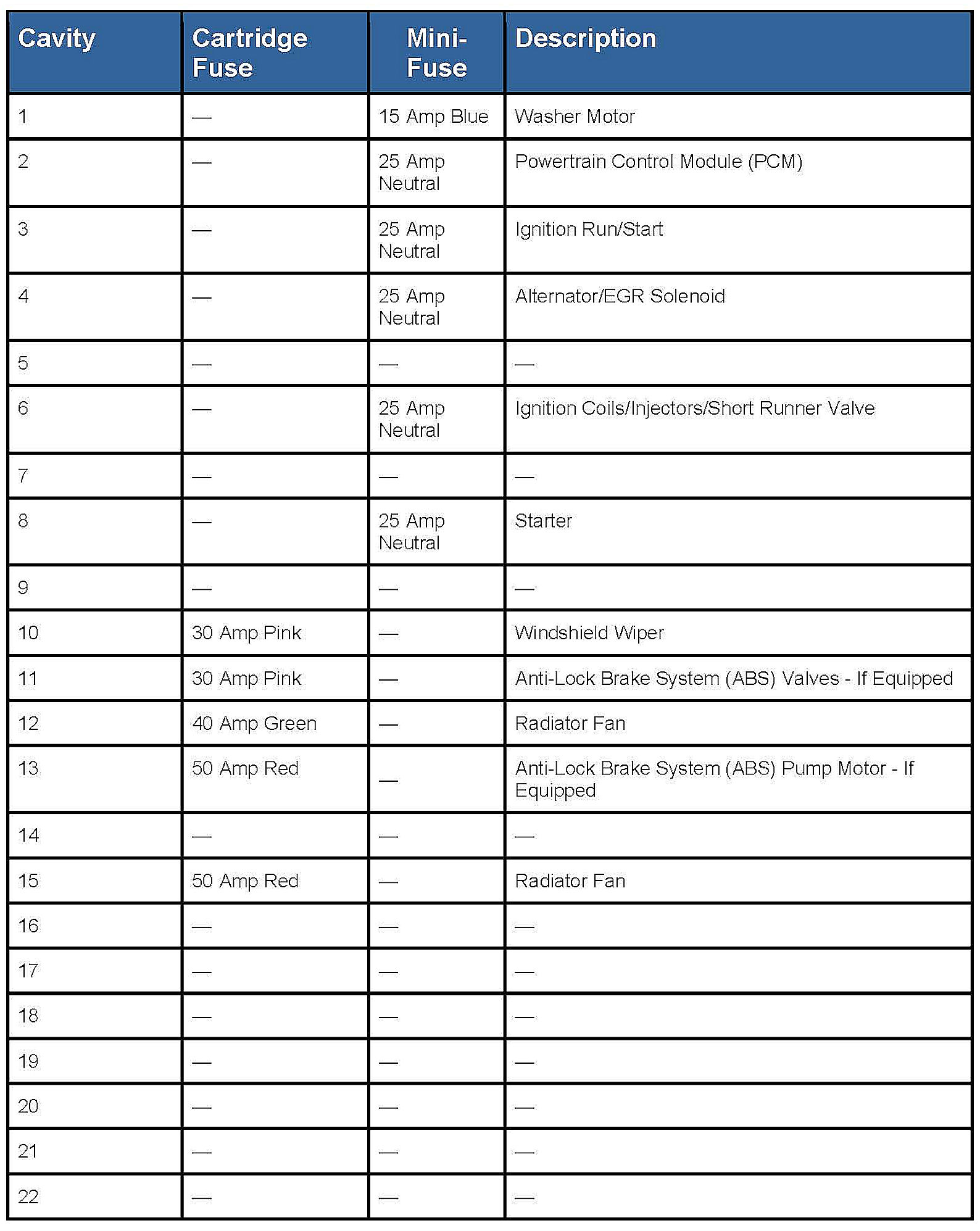

Fuse 1 - 22:
