Input Speed Sensor - Installation
INSTALLATION

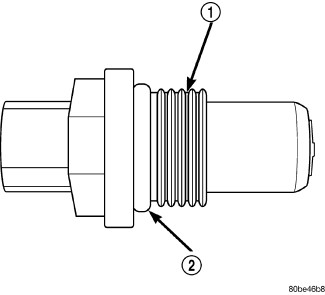

1. Verify O-ring (2) is installed into position.

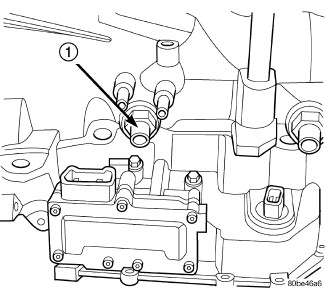

2. Install and tighten input speed sensor (1) to 27 Nm (20 ft. lbs.).

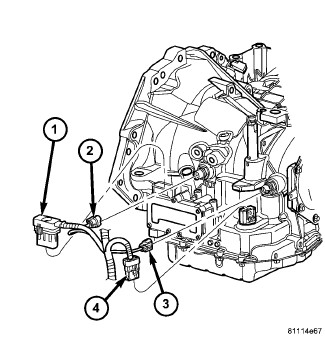

3. Connect speed sensor connector (4).
4. Connect battery negative cable.
INSTALLATION
1. Verify O-ring (2) is installed into position.
2. Install and tighten input speed sensor (1) to 27 Nm (20 ft. lbs.).
3. Connect speed sensor connector (4).
4. Connect battery negative cable.
