Totally Integrated Power Module C8 (Headlamp And Dash) 22 Way

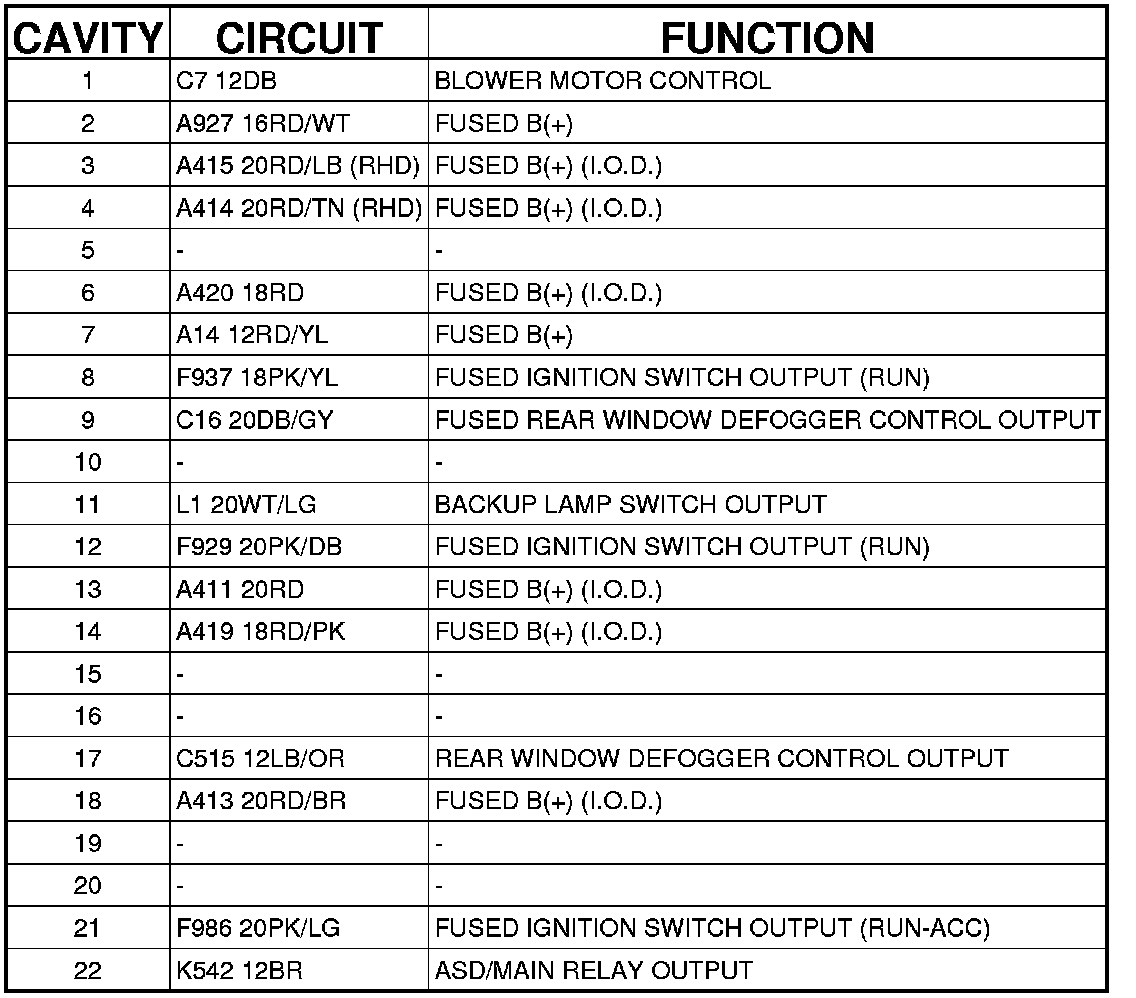

Connector C8 - (HEADLAMP AND DASH) 22 WAY




MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 22 WAY
