Home
>>
Chrysler
>>
2009
>>
Sebring Convertible L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>
Passenger Door Module C2 (Passenger Door) 20 Way
Passenger Door Module C2 (Passenger Door) 20 Way

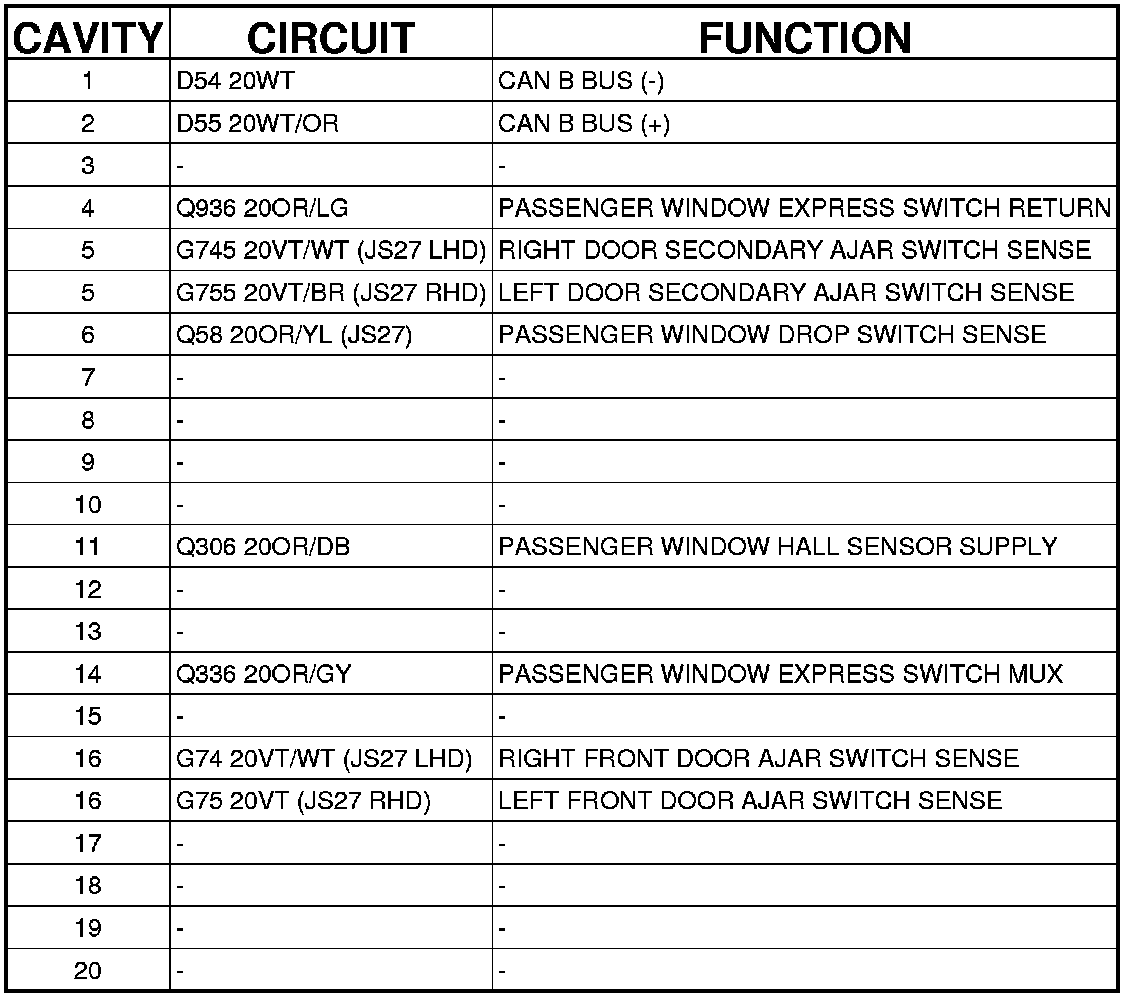

Connector C2 - (PASSENGER DOOR) 20 WAY
MODULE-DOOR-PASSENGER - (PASSENGER DOOR) 20 WAY
