Driver Door Module C2 (Driver Door) 20 Way
Driver Door Module C2 (Driver Door) 20 Way

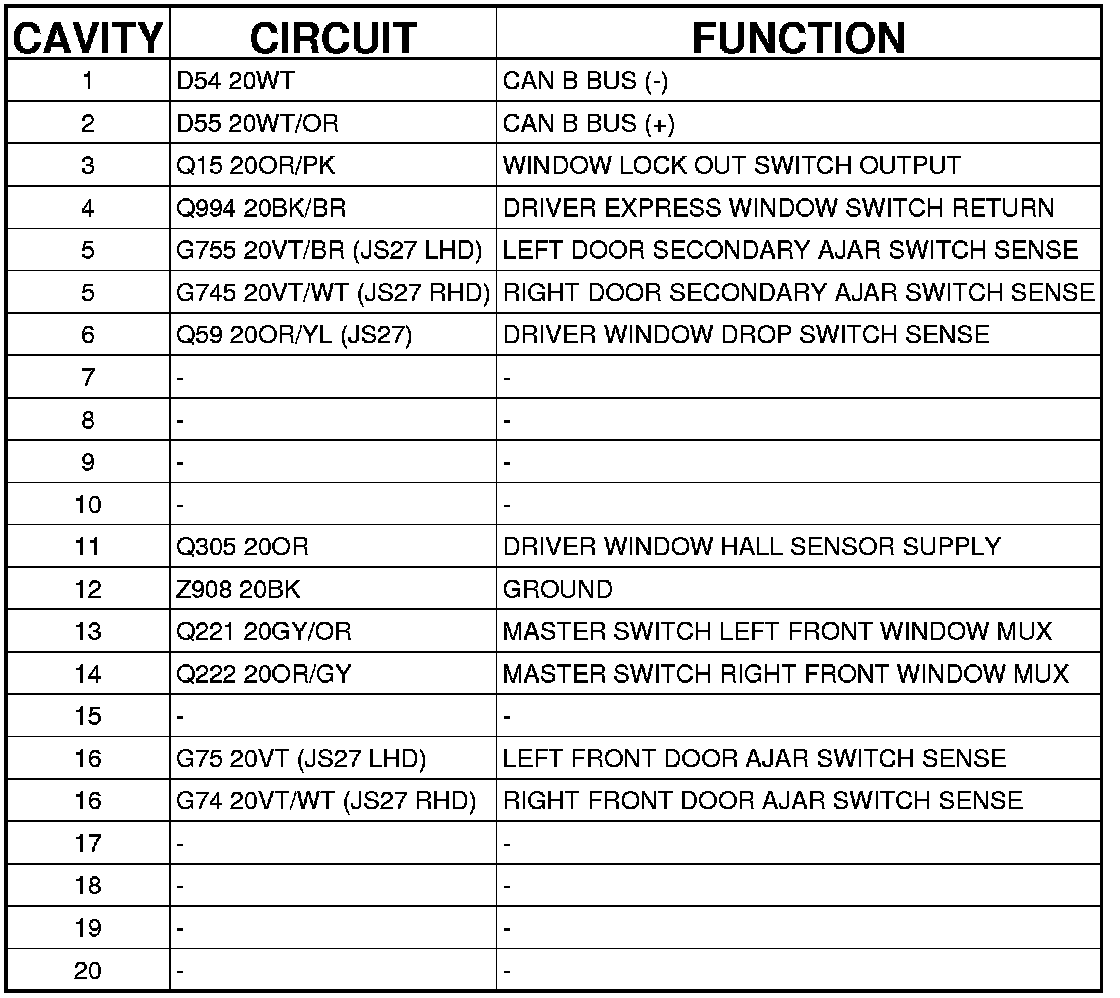

Connector C2 - (DRIVER DOOR) 20 WAY
MODULE-DOOR-DRIVER - (DRIVER DOOR) 20 WAY
