Convertible Top Warning Buzzer

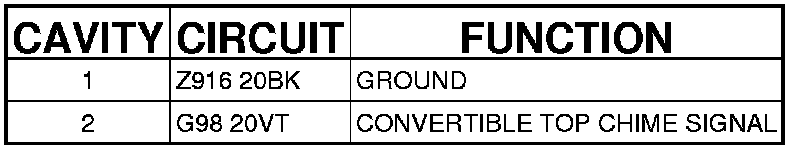

Connector (JS27) - (LICENSE LAMP) 2 WAY

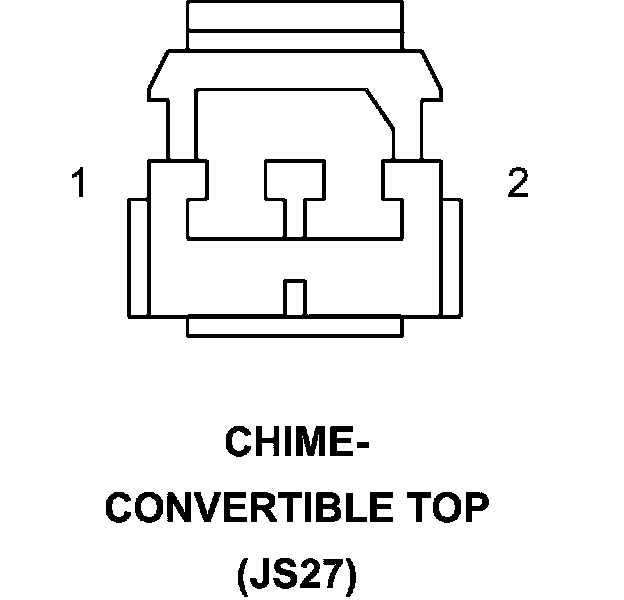

CHIME-CONVERTIBLE TOP (JS27) - (LICENSE LAMP) 2 WAY
