Power Window Switch - Installation

INSTALLATION

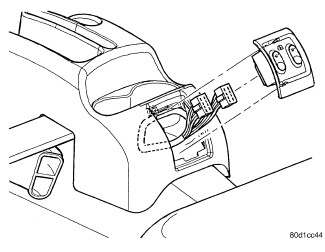

FRONT





1. Install switch into bezel.
2. Connect electrical harness connector to switch.
3. Install bezel. Instrument Cluster Bezel - Installation
4. Connect battery negative cable.

REAR - SEDAN ONLY





1. Connect electrical harness connector to switch.
2. Align switch and press into position.
3. Connect battery negative cable.
