Ignition Capacitor - Installation






INSTALLATION

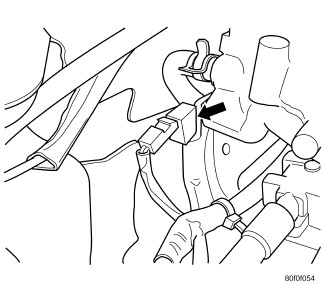

1. Install ignition coil capacitor and mounting bolt and tighten to 12 Nm (105 in. lbs.).
2. Connect electrical connector to ignition coil capacitor.
3. Connect negative battery cable.
