P127E-Fuel Pump Control Circuit 2 Open: Notes

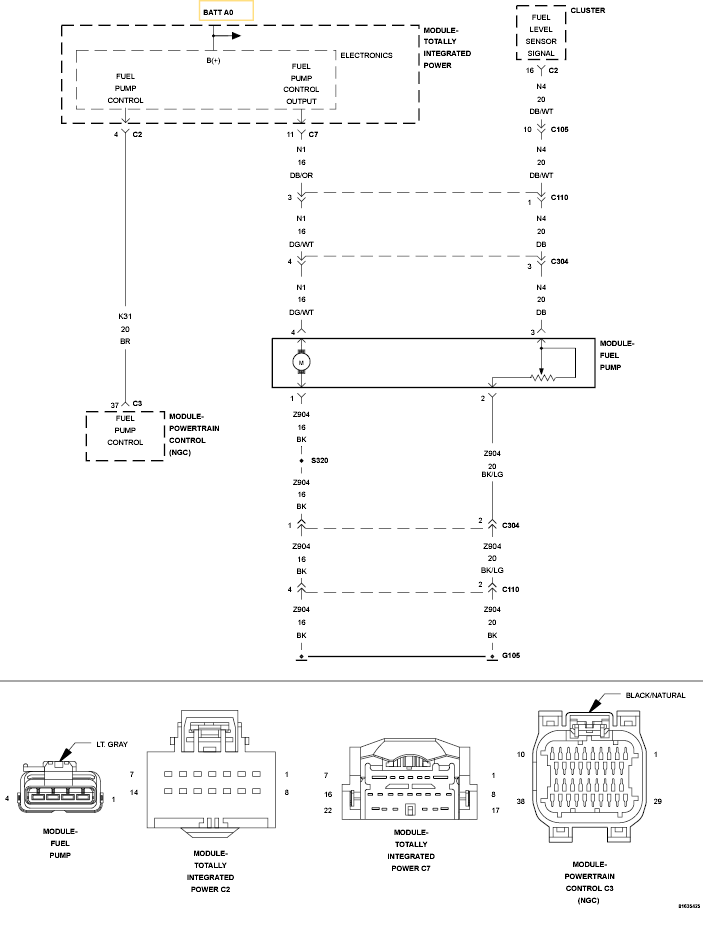

Fig 1: Fuel Pump Control Circuit

GC0117315

Courtesy of CHRYSLER LLC
