Home
>>
Chrysler
>>
2009
>>
Aspen 4WD V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

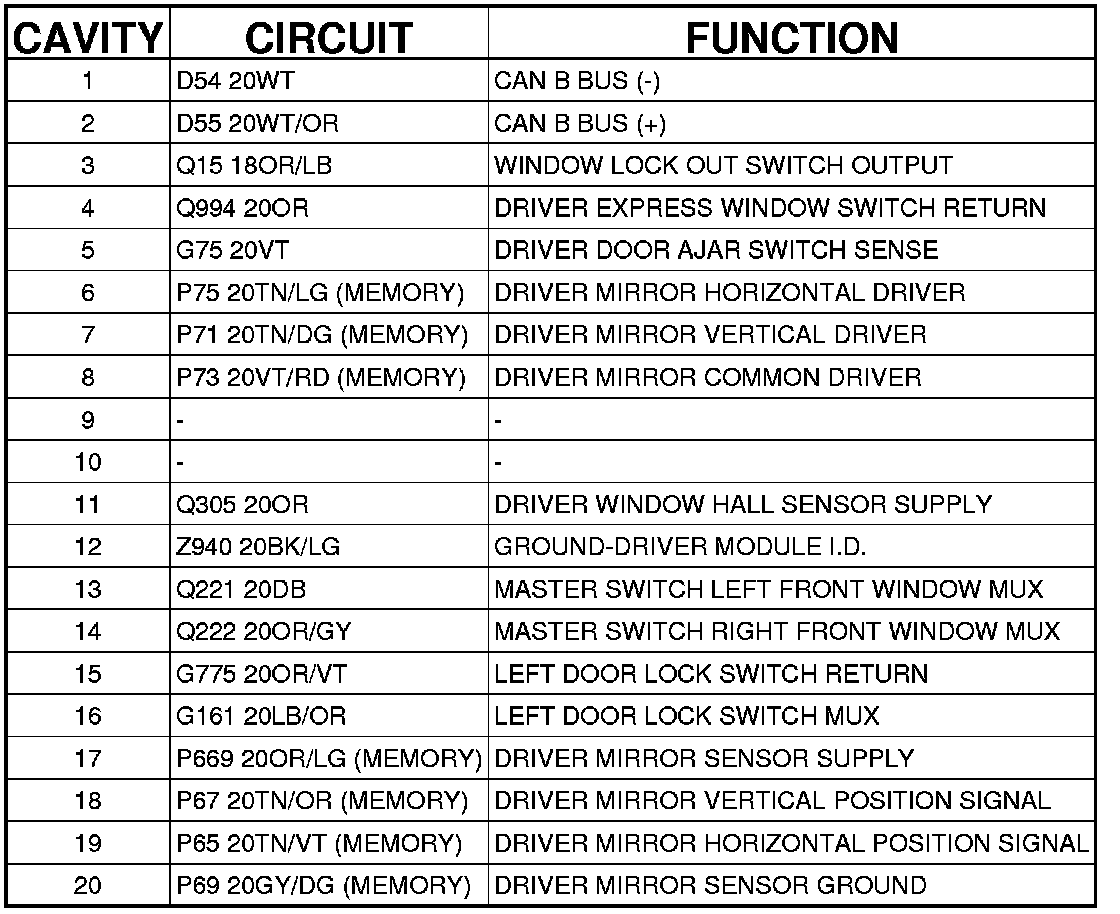

Driver Door Module C2 (Front Driver Door) 20 Way
Driver Door Module C2 (Front Driver Door) 20 Way
Connector C2 - (FRONT DRIVER DOOR) 20 WAY
MODULE-DOOR-DRIVER - (FRONT DRIVER DOOR) 20 WAY
