Power Distribution Center C3 (Hard Wired) 41 Way

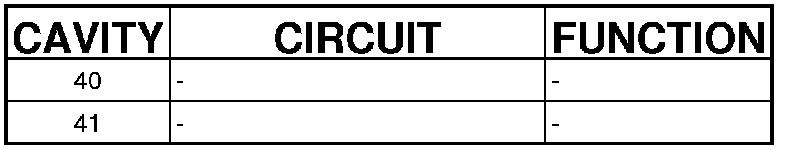

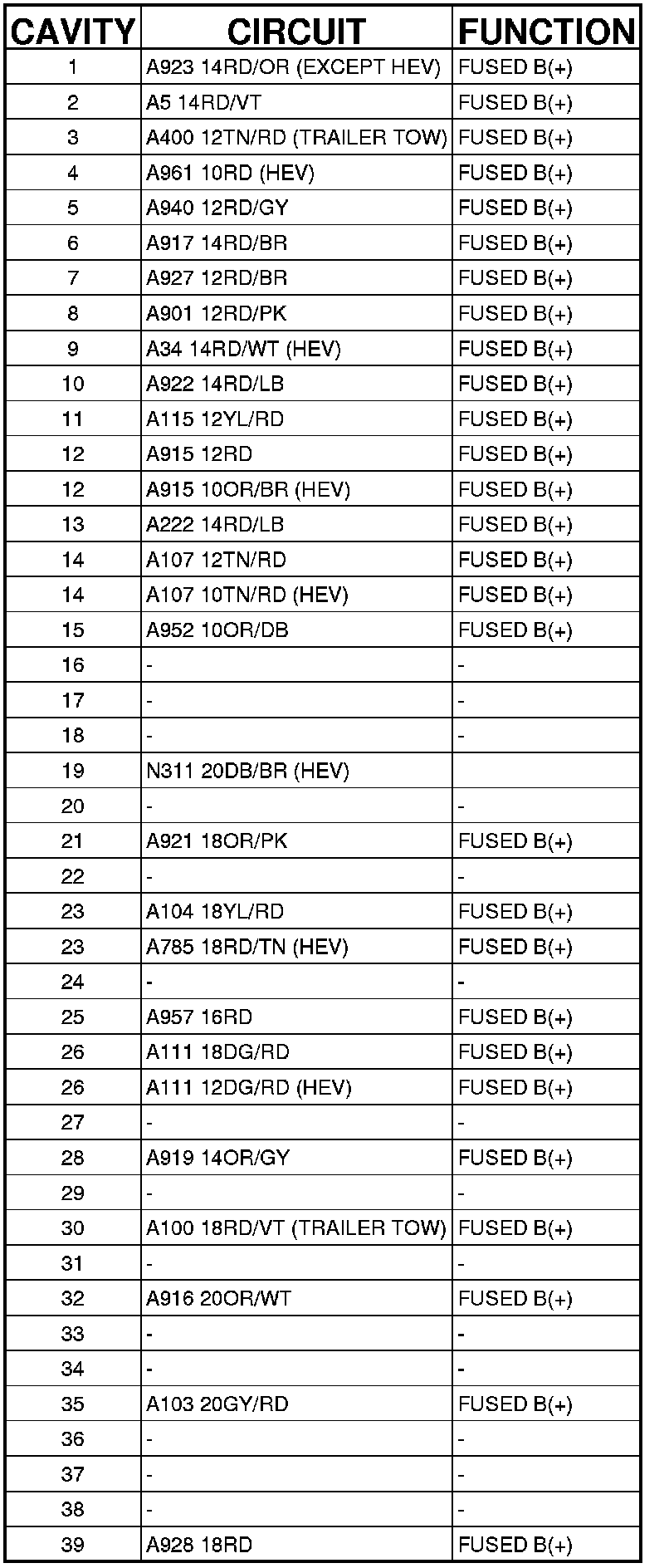

Connector C3 - (HARD WIRED) 41 WAY




POWER DISTRIBUTION CENTER - (HARD WIRED) 41 WAY
