Engine Specifications

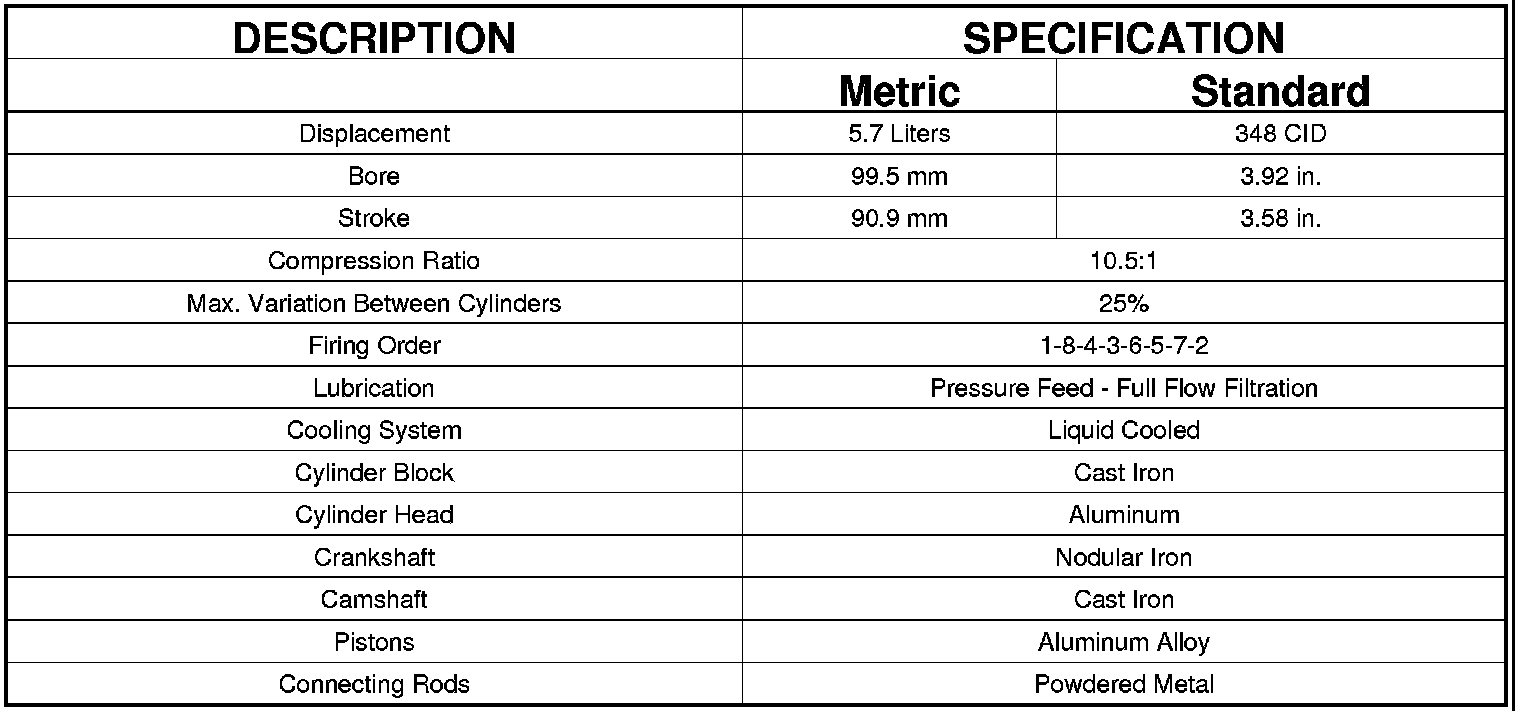

SPECIFICATIONS

Eagle Engine - 90° V-8 OHV - HEV

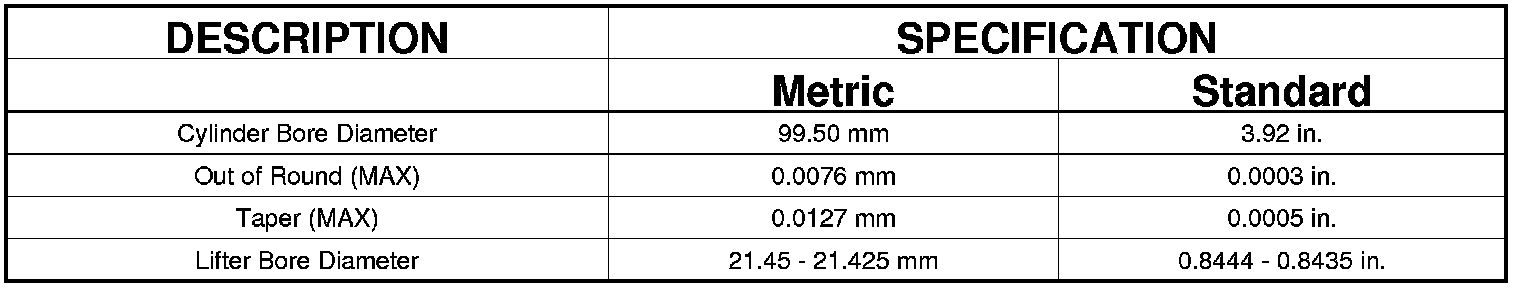

CYLINDER BLOCK

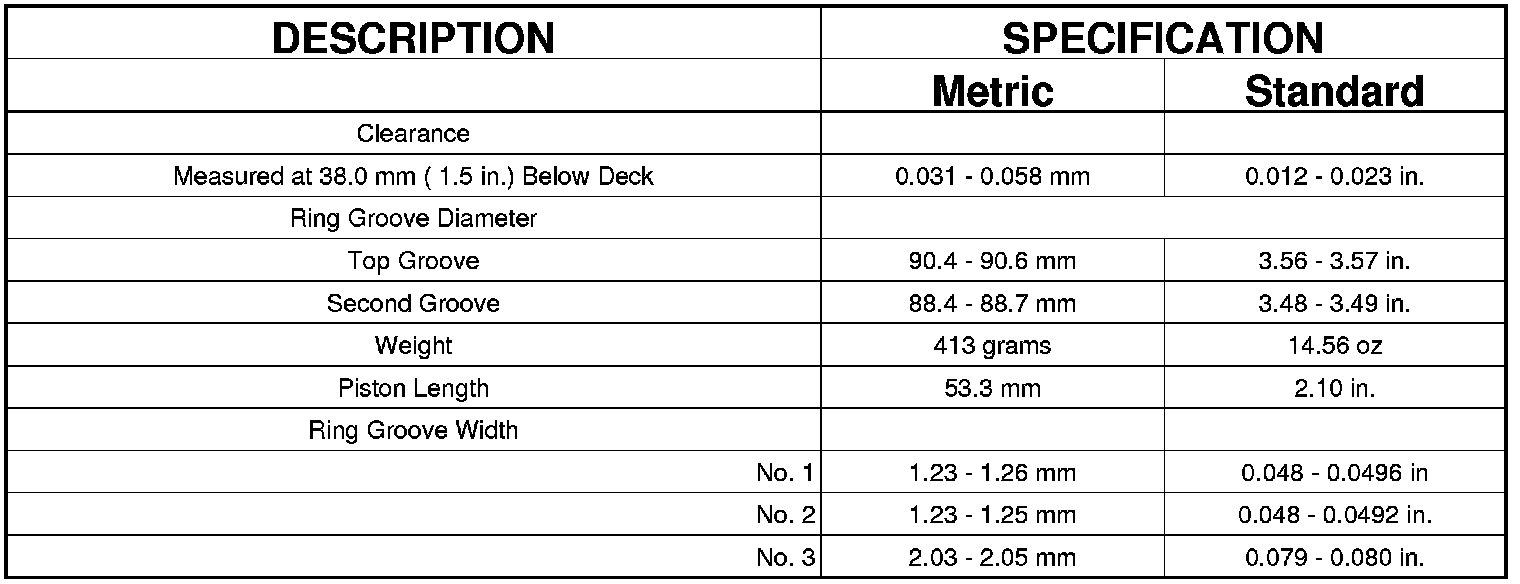

PISTONS

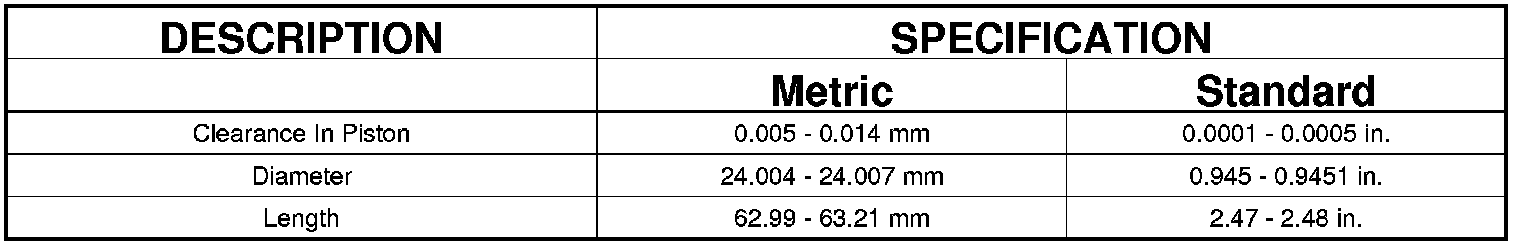

PISTON PINS

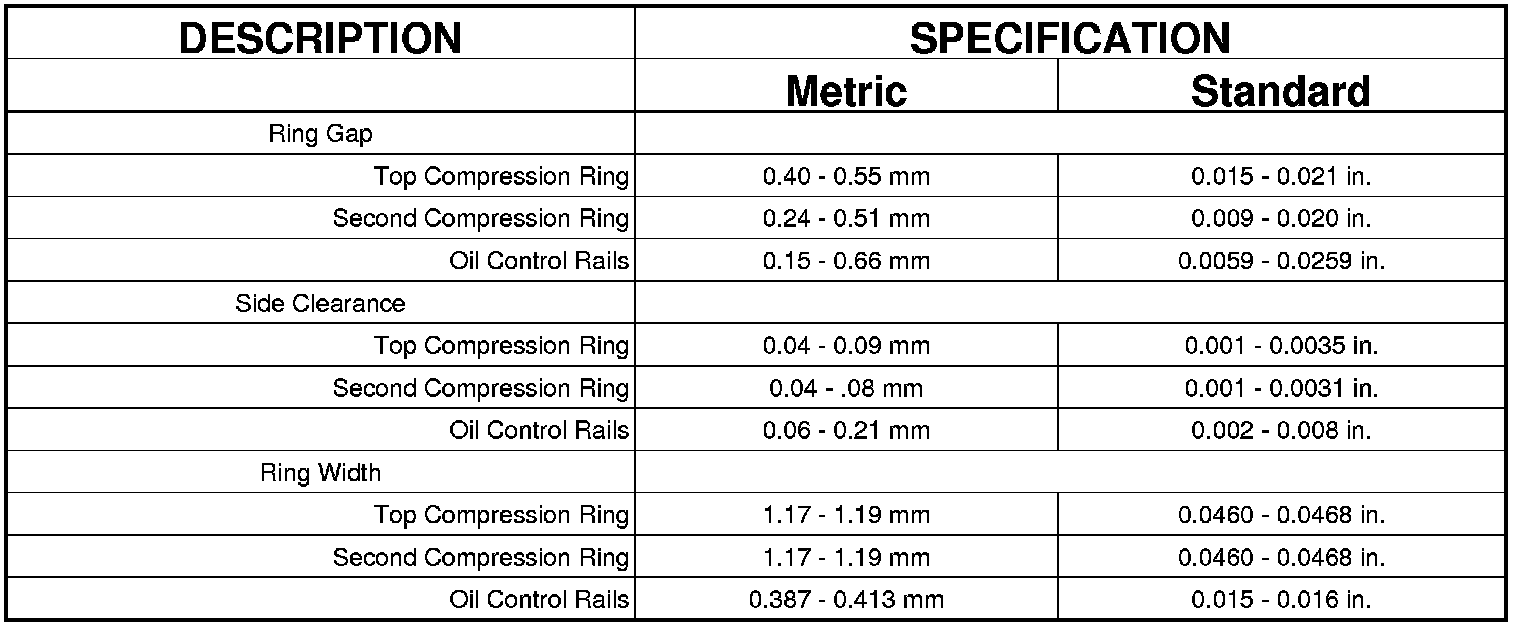

PISTON RINGS

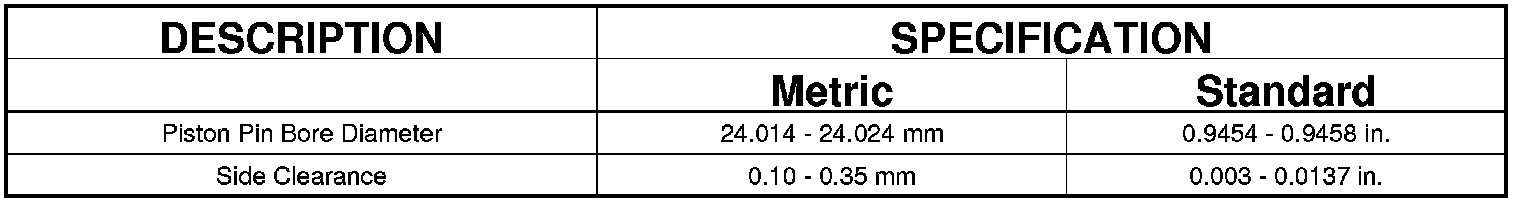

CONNECTING RODS

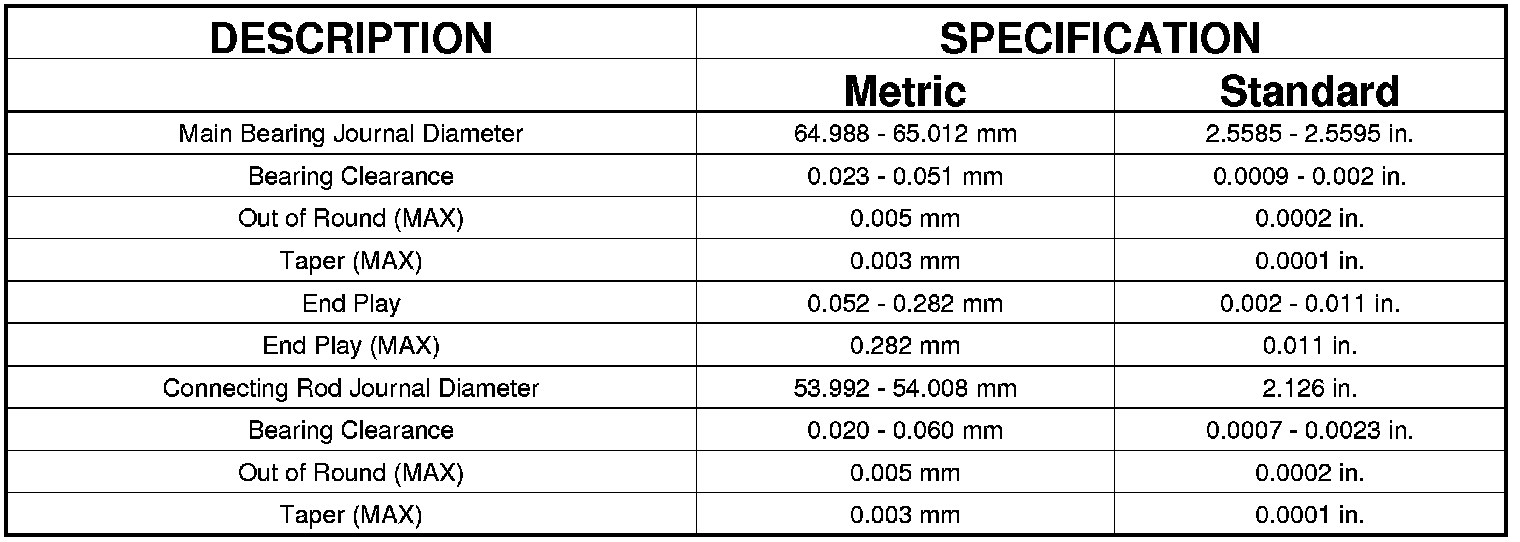

CRANKSHAFT

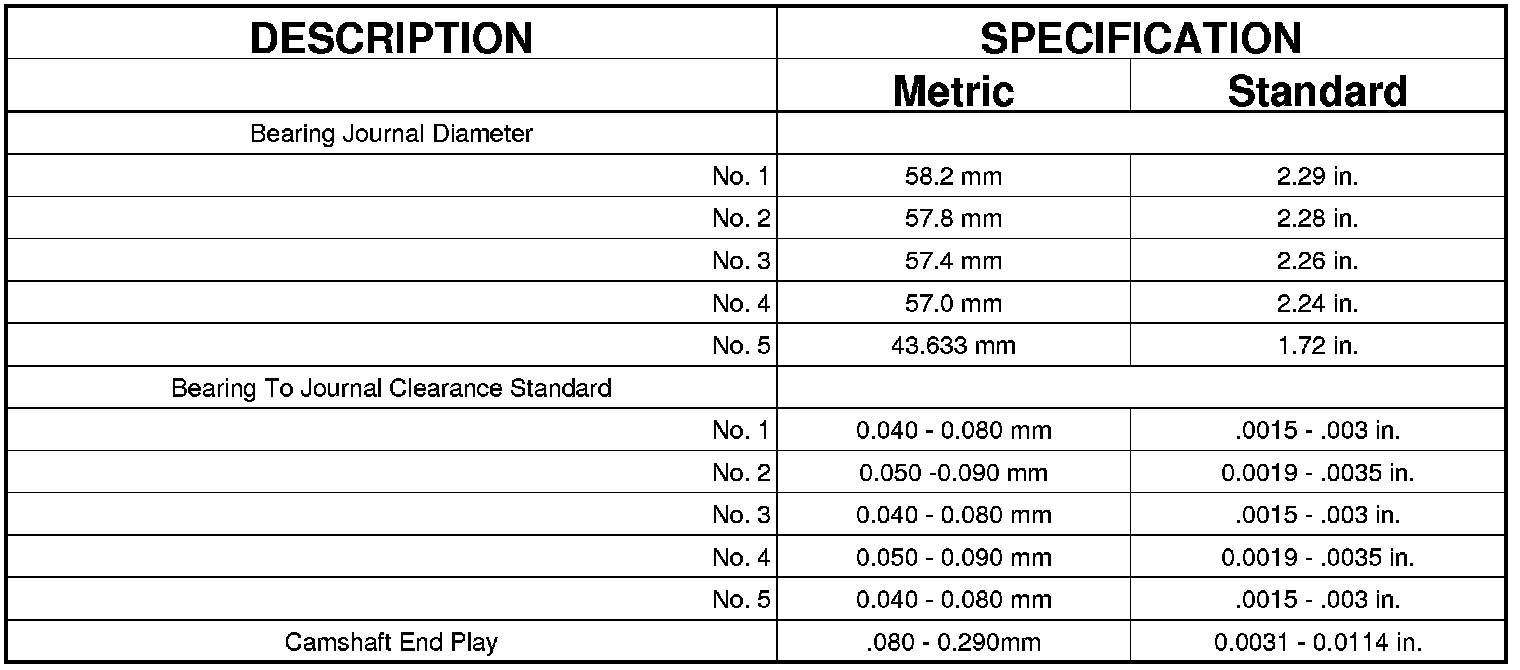

CAMSHAFT

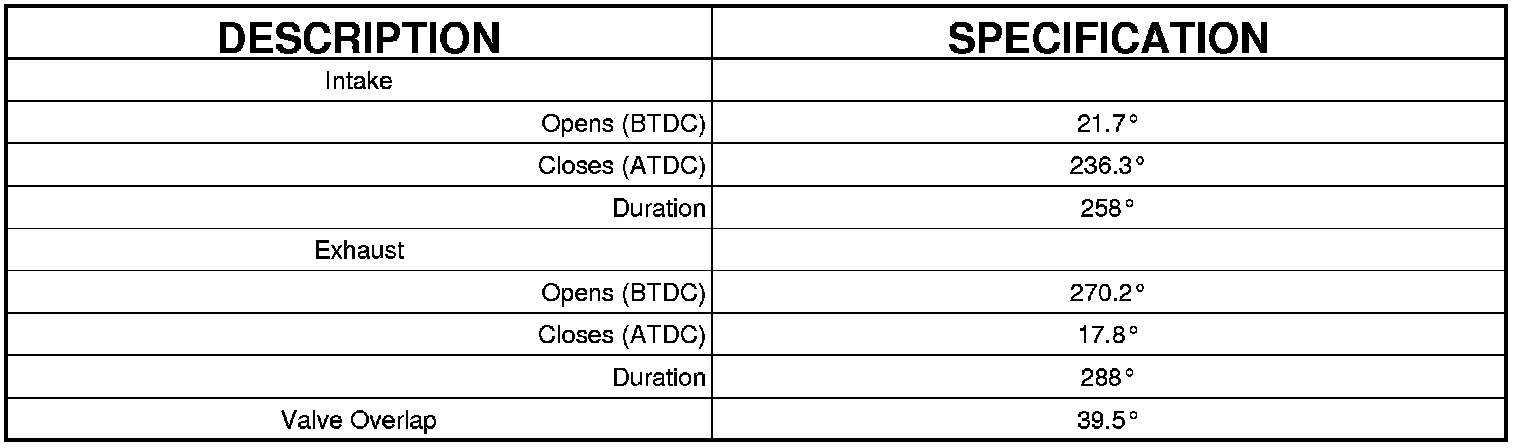

VALVE TIMING

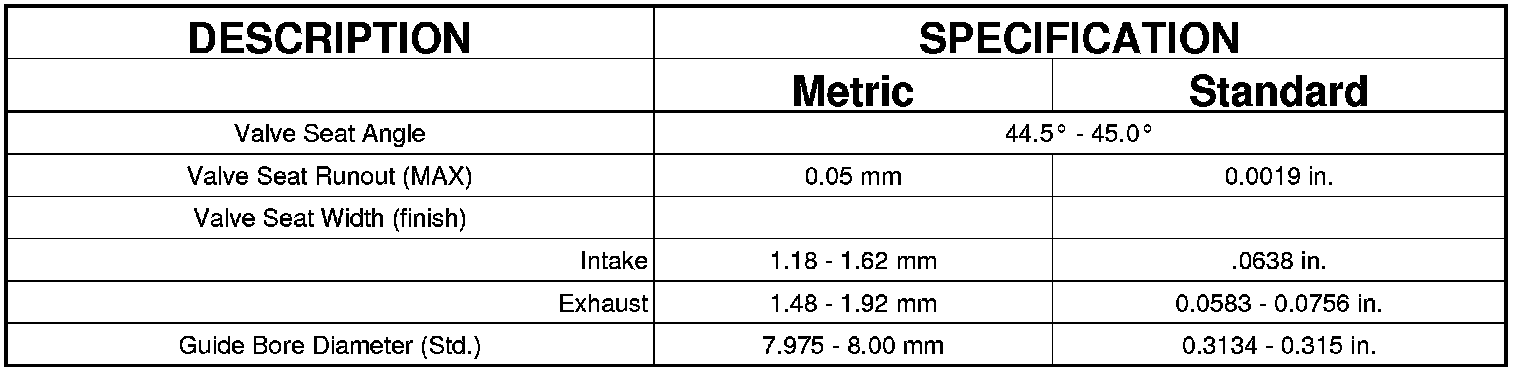

CYLINDER HEAD

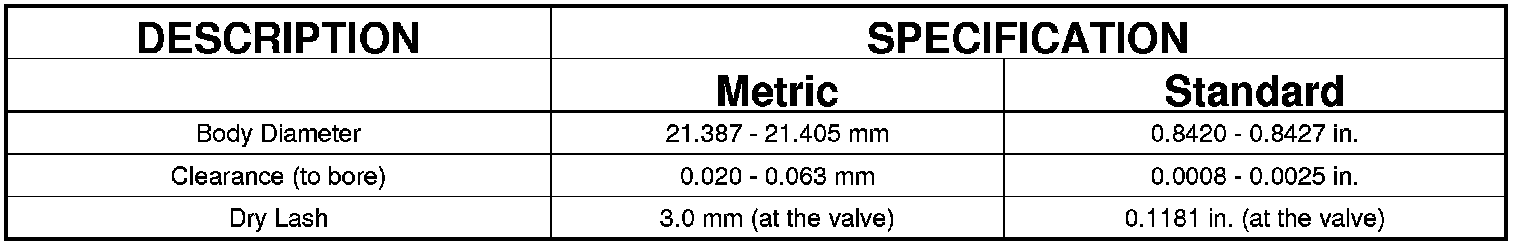

HYDRAULIC TAPPETS

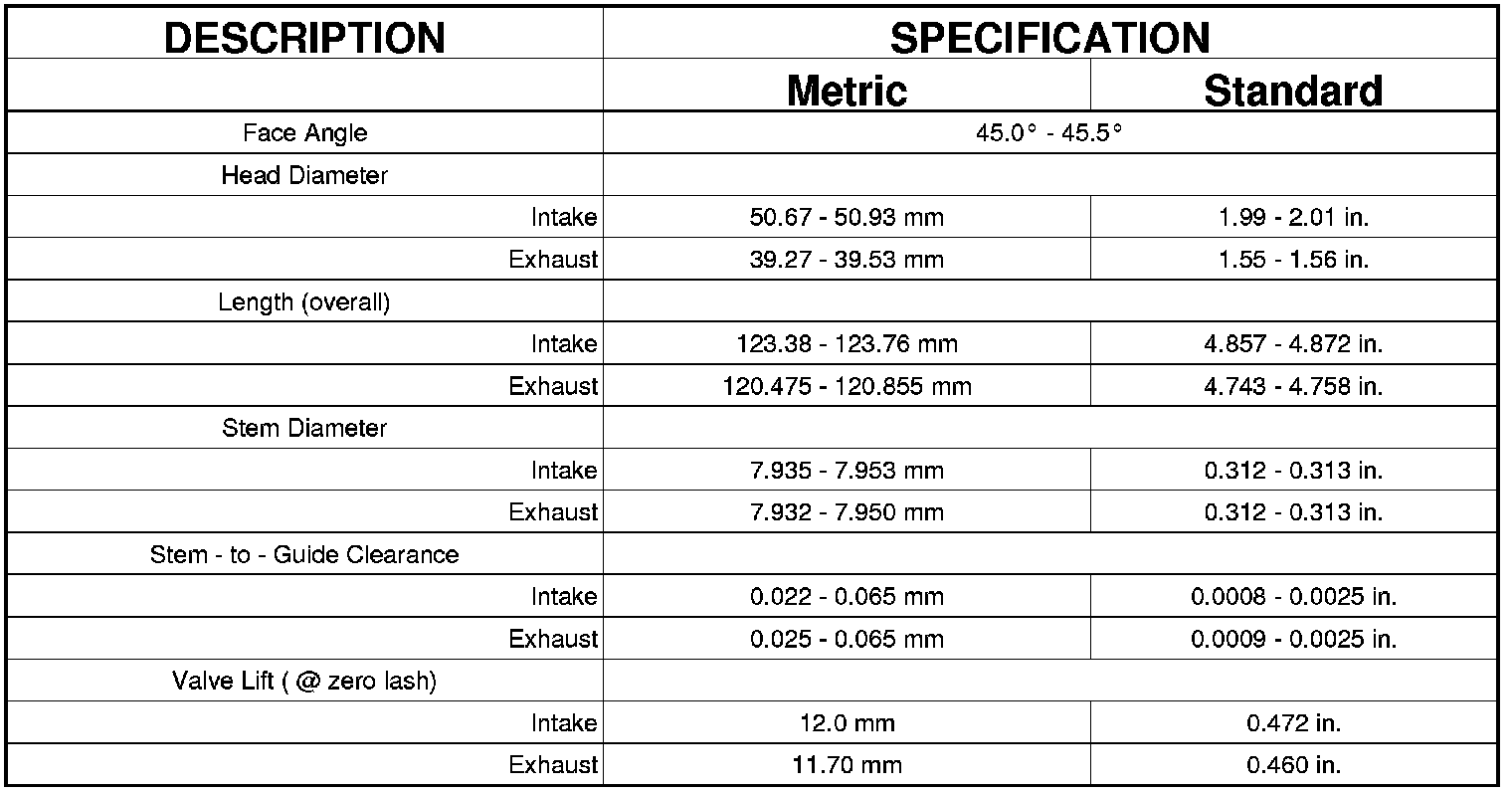

VALVES

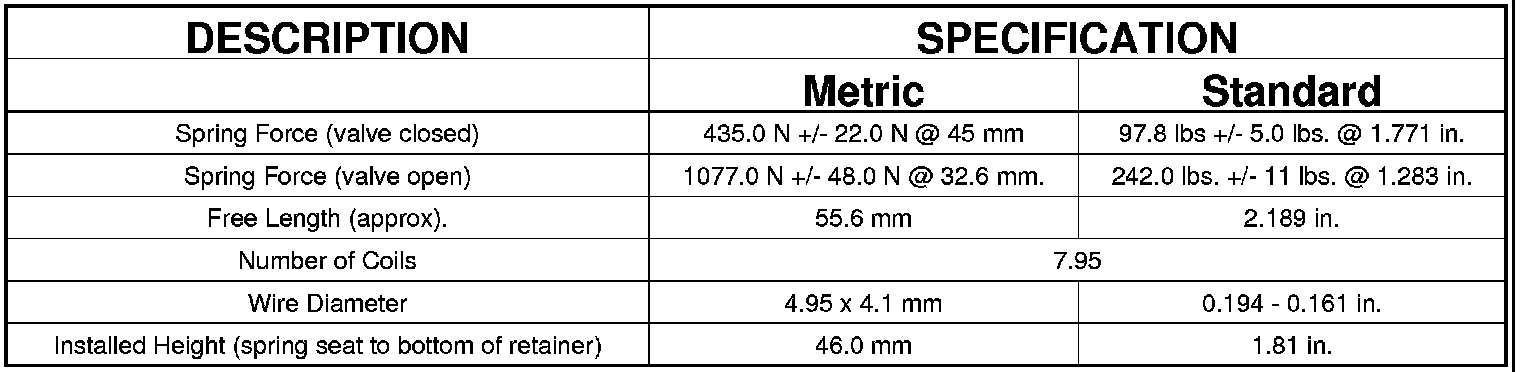

VALVE SPRING

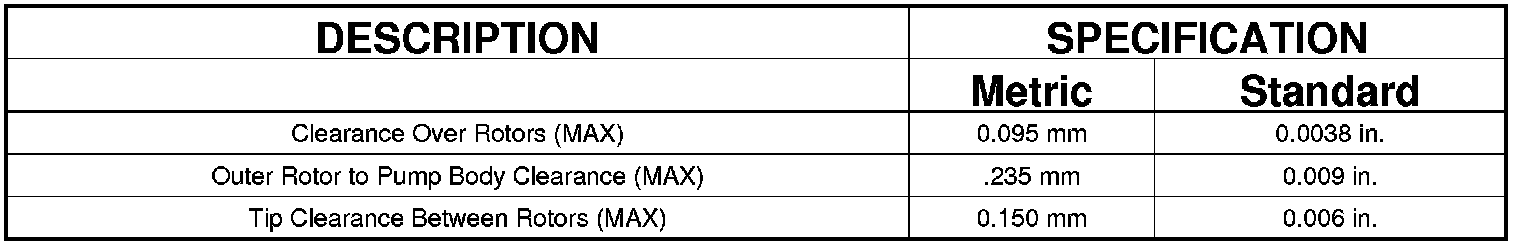

OIL PUMP

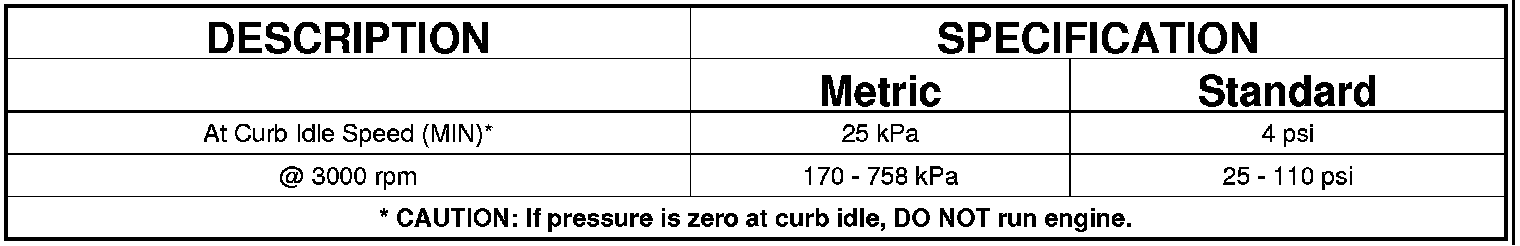

OIL PRESSURE
