Transmission Range Sensor - Removal

REMOVAL





1. Remove the valve body. Valve Body - Removal.

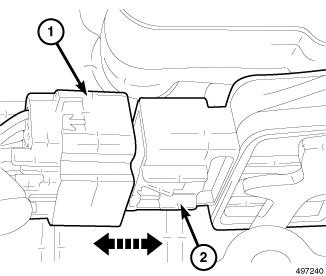

2. Disconnect the transmission range sensor electrical connector (1).

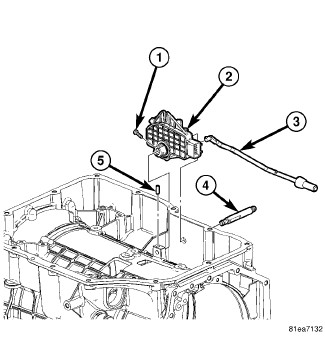

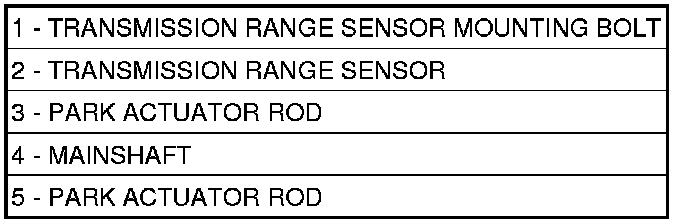

3. Remove the bolt (1) securing the transmission range sensor (2) to the mainshaft (3).

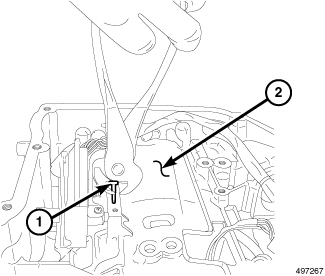

4. Remove the mainshaft roll pin (1) from the transmission case (2) and remove the mainshaft.

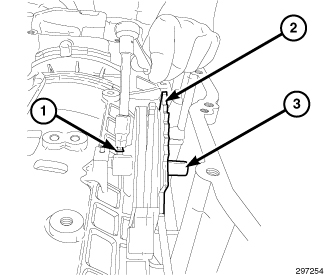

5. Lower the transmission range sensor (2) and remove the park actuator rod (3).
