Transmission Position Sensor/Switch: Diagrams

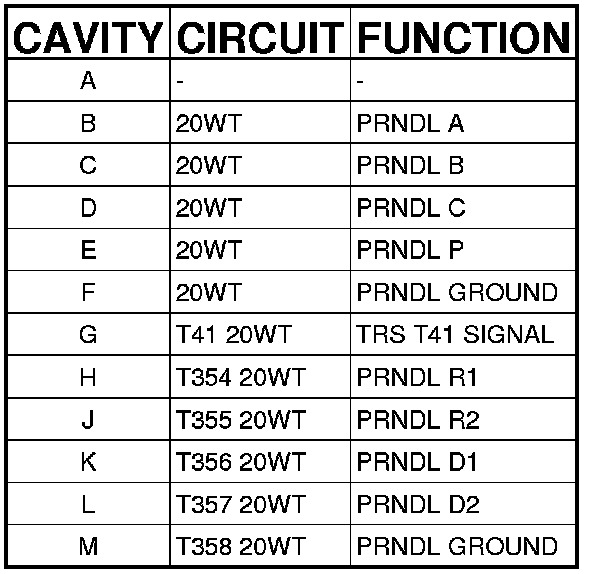

Connector (HEV) - (TRANSMISSION SIDE) 12 WAY

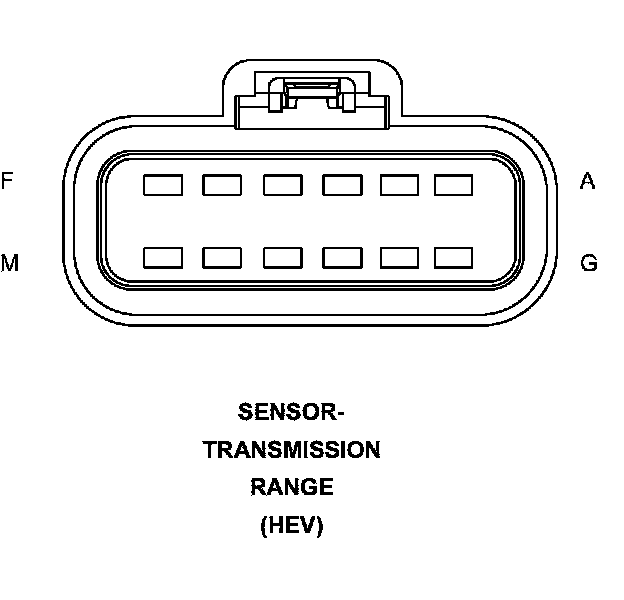

SENSOR-TRANSMISSION RANGE (HEV) - (TRANSMISSION SIDE) 12 WAY
